10545 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) UPPER HANDLE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

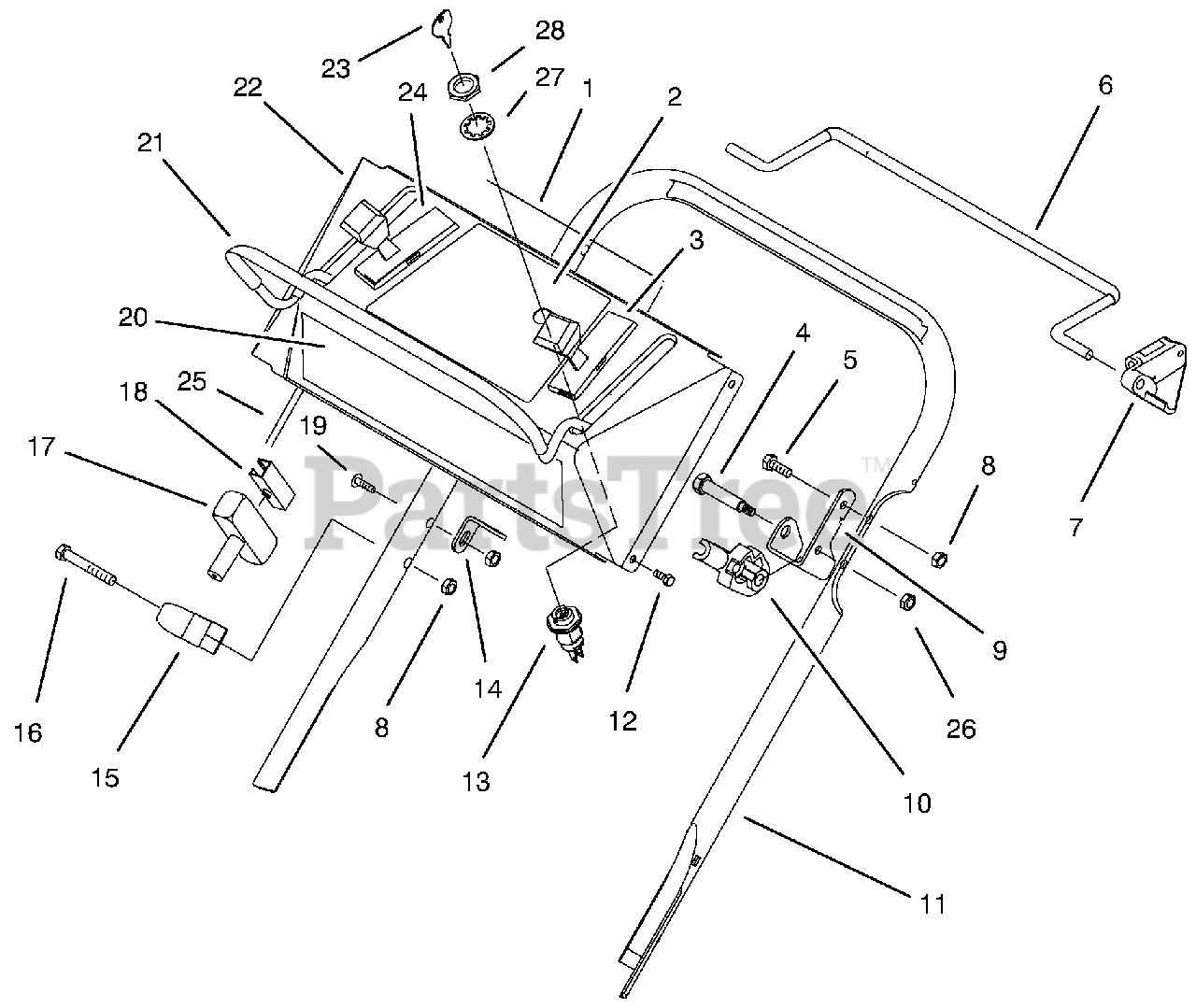

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-2940

Decal-Warning
(Superseded to 92-4981)

$4.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-8912

Decal-Warning

$

$

Not available

3

Lawn-Boy 92-1643

Cable-Throttle

$120.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 613050

Bolt

$11.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 321-4

Screw-Hex Hd. Cap

$1.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 92-1617

Bail-Control S.R
(Superseded to 92-1001-03)

$50.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, only 1 left!

0

8

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 6

0

9

Lawn-Boy 92-1094

Bail-Stop Bracket

$36.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 92-1078

Cam-Brake

$52.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 92-1092

Handle-Upper
(Superseded to 92-1092-05)

$151.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-9665

Screw-Phillips Hd.

$1.99

$

In Stock, only 4 left!

0

13

Lawn-Boy 46-5780

Switch-Starter

$29.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 92-2928

Bracket-Cable Anchor

$13.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-7720

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

16

Lawn-Boy 321-51

Screw-Hex Hd. Cap

$1.49

$

In Stock, only 2 left!

0

17

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$18.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 612824

Clip-Rope Insert

$3.99

$

In Stock, Qty 10

0

19

Lawn-Boy 92-2268

Screw-Handle

$2.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 92-9561

Decal-Console Front

$

$

Not available

21

Lawn-Boy 92-1093

Bail-Engine Control

$

$

Not available

22

Lawn-Boy 16-7109

Panel-Control (Incl. Ref. #1, 2, & 20)

$

$

Not available

23

Lawn-Boy 62-7700

Key
(Superseded to 62-7700-03)

$34.99

$

In Stock, Qty 11

0

24

Lawn-Boy 92-8926

Control-Ground Speed

$79.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 92-1633

Cable-Control

$116.99

$

In Stock, Qty 5

0

26

Lawn-Boy 3296-56

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 3254-5

Washer-Star

$1.49

$

In Stock, only 3 left!

0

28

Lawn-Boy 218-461

Nut

$3.99

$

In Stock, Qty 10

0
