10545 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) HOUSING ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

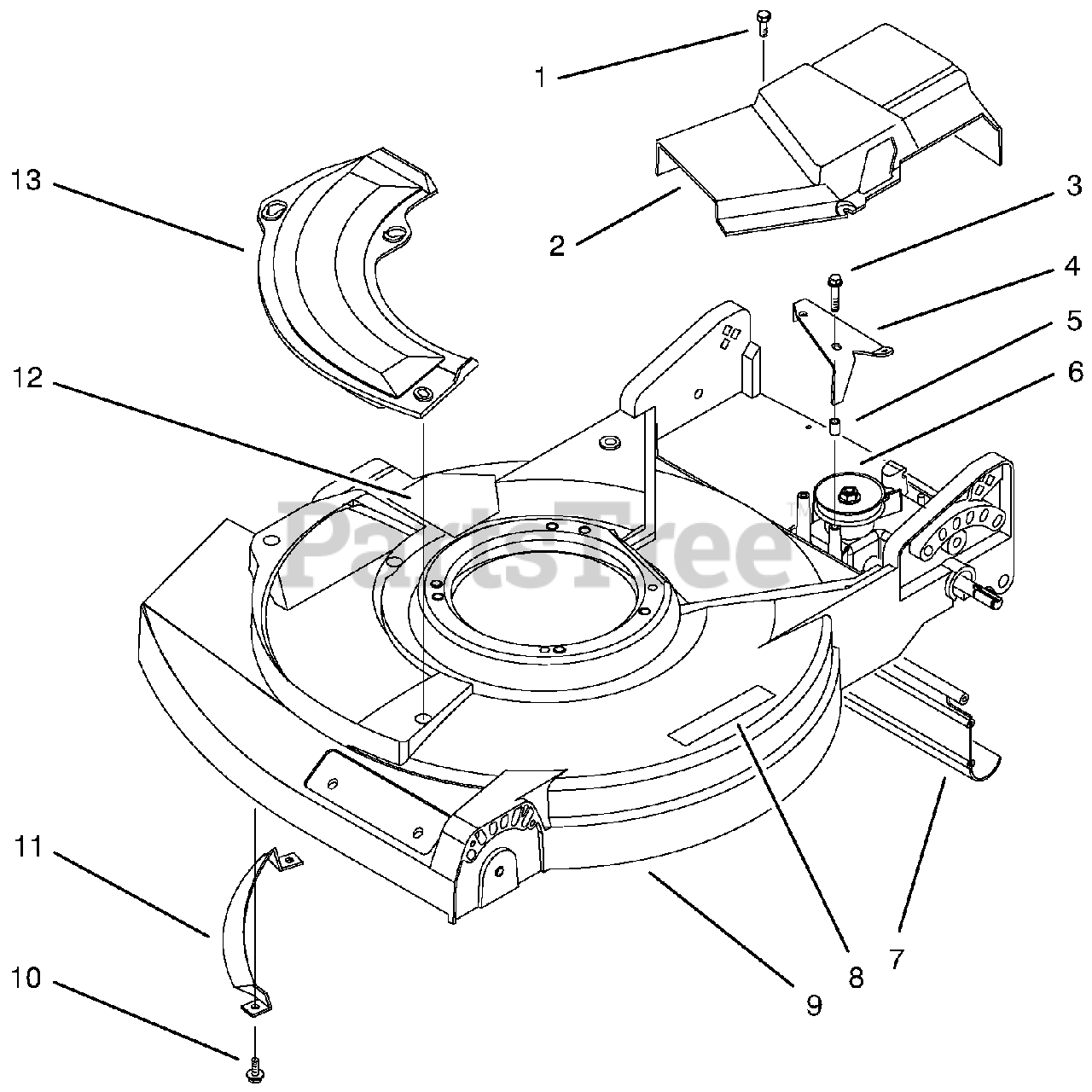

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 926641

Screw-Hex Washer Hd. Thread Forming

$3.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-8853

Cover-Transmission

$

$

Not available

3

Lawn-Boy 92-7748

Screw
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 15

0

4

Lawn-Boy 92-7699

Bracket-Actuator
(Superseded to 92-7699-03)

$12.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 256-251

Bushing-Spacer

$3.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 92-7869

Gear Case Assembly

$

$

Not available

7

Lawn-Boy 92-7736

Shield-Trailing

$40.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 71-1280

Decal-Warning

$31.99

$

In Stock, Qty 13

0

9

Lawn-Boy 16-5779

Housing-21"

$1035.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 46-6811

Screw-Hex Washer Hd.

$3.49

$

In Stock, only 3 left!

0

11

Lawn-Boy 608175

Bar-Toe

$77.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 39-5770

Decal-Danger

$8.99

$

In Stock, Qty 8

0

13

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

$36.99

$

In Stock, only 1 left!

0
