10545 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) CRANKSHAFT & CYLINDER ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

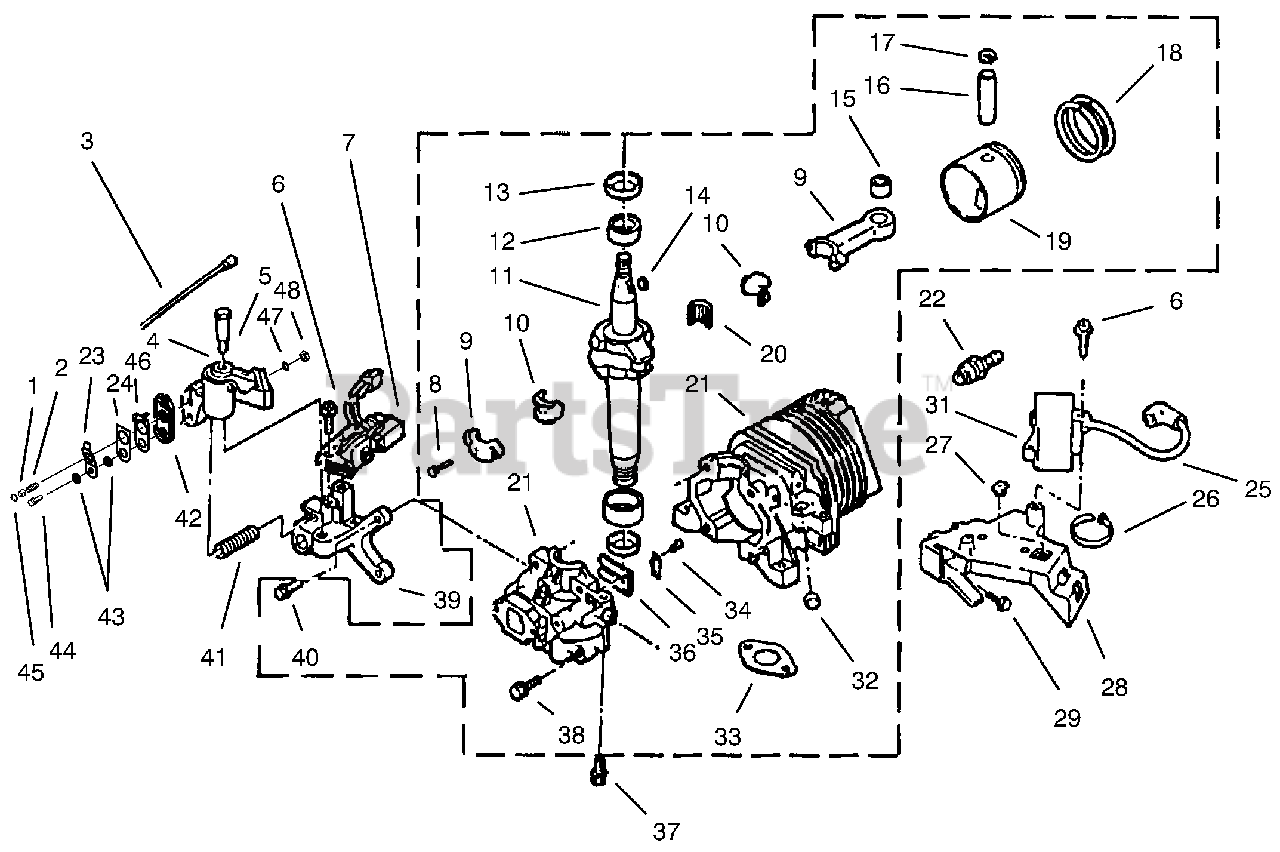

CRANKSHAFT & CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 611509

Actuator-Brake Lever

$5.49

$

In Stock, only 3 left!

0

2

Lawn-Boy 611214

Spring-Cable Return

$9.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 683821

Lead

$

$

Not available

4

Lawn-Boy 682683

Brake Assembly

$

$

Not available

5

Lawn-Boy 613529

Bolt-Shoulder

$13.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 607526

Screw-C.D. Mounting
(Superseded to 32105-12)

$2.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 683964

Alternator Assembly

$

$

Not available

8

Lawn-Boy 611393

Screw-Cap

$22.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 92-4921

Connecting Rod Assembly (Incl. Ref. #8, 10, 15, & 20)

$241.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 677982

Liner-Split (1 pair)

$46.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 92-6375

Crankshaft
(Superseded to 94-5713)

$292.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 681830

Bearing-Upper Main

$41.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611396

Seal-Upper Oil

$6.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 607199

Key-Flywheel

$5.49

$

In Stock, Qty 9

0

15

Lawn-Boy 92-4927

Bearing Assembly

$

$

Not available

16

Lawn-Boy 606608

Pin-Wrist
(Superseded to 94-5774)

$11.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 303712

Ring-Retaining

$3.49

$

In Stock, Qty 11

0

18

Lawn-Boy 681737

Ring Set

$

$

Not available

19

Lawn-Boy 92-4923

Piston & Ring Set (Incl. Ref. #16-18)

$

$

Not available

20

Lawn-Boy 683911

Needle Bearing Set

$23.99

$

In Stock, Qty 5

0

21

Lawn-Boy 683702

Cylinder & Crankshaft Cover Assembly (Incl Ref. #32, 34-36, 38, & 40)

$

$

Not available

22

Lawn-Boy 614009

Plug-Spark

$5.49

$

In Stock, only 3 left!

0

23

Lawn-Boy 93-1239

Spring-Contact

$2.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 612842

Shield

$1.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 681678

Lead-High Tension

$24.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 614249

Strap-Tie

$1.49

$

In Stock, Qty 6

0

27

Lawn-Boy 605120

Grommet

$4.49

$

In Stock, Qty 9

0

28

Lawn-Boy 613073

Bracket-C.D. Mounting

$

$

Not available

29

Lawn-Boy 614343

Screw

$3.49

$

In Stock, only 4 left!

0

31

Lawn-Boy 683215

Module-C.D. Ignition & Lead
(Superseded to 100-2948)

$125.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 609123

Plug

$3.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 93-1233

Gasket-Exhaust

$1.99

$

In Stock, Qty 6

0

34

Lawn-Boy 612872

Screw-Reed To Cover

$2.49

$

In Stock, Qty 5

0

35

Lawn-Boy 602587

Plate-Reed Hold Down

$3.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 602588

Reed

$

$

Not available

37

Lawn-Boy 611073

Screw-Set
(Superseded to 3274-10)

$9.99

$

In Stock, Qty 13

0

38

Lawn-Boy 613110

Screw-Cover to Crankcase

$

$

Not available

39

Lawn-Boy 611337

Bracket

$

$

Not available

40

Lawn-Boy 613233

Screw-Brake Mtg. Brkt.

$4.49

$

Usually ships in 3-6 days

0

41

Lawn-Boy 611211

Spring-Brake

$15.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 93-4301

Case Assembly

$16.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 306407

Washer
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

44

Lawn-Boy 321-6

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

45

Lawn-Boy 611213

Retainer

$2.49

$

In Stock, only 4 left!

0

46

Lawn-Boy 612841

Plate-Contact

$15.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 3255-7

Washer-Ext. Tooth Lock

$1.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 306375

Nut
(Superseded to 146254)

$

$

Not available

Lawn-Boy 92-6353

Short Block
(Superseded to 94-5734)

Note: Not Illustrated

$

$

Not available
