1054 - Toro Lawn Tractor (1964) 5047 Transmission Parts List (1054 Tractor) Parts Diagram

Lawn Tractor

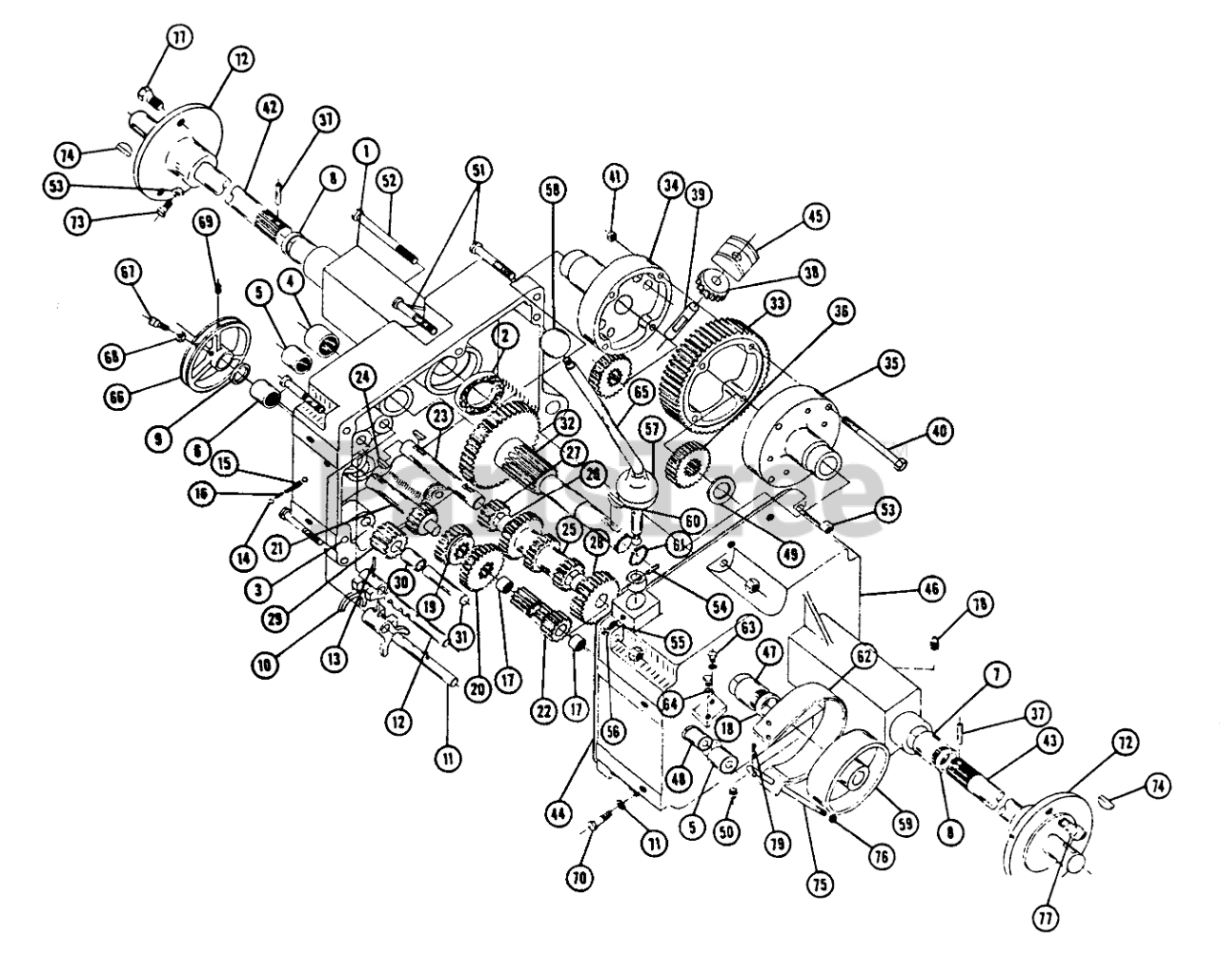

5047 Transmission Parts List (1054 Tractor) Parts Diagram

  • Title
1

Toro 4160

DISCONTINUED

$

$

Not available

2

Toro 1533

DISCONTINUED

$

$

Not available

3

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

4

Toro 1532

BEARING-NEEDLE

$50.99

$

In Stock, only 4 left!

0

5

Toro 1529

BEARING-NEEDLE

$43.99

$

Usually ships in 3-6 days

0

6

Toro 1508

See Supercession: 252-6
(Superseded to 252-6)

$13.99

$

In Stock, Qty 13

0

7

Toro 1526

DUP PART SEE $BOOK

$

$

Not available

8

Toro 1213

See Supercession: 100443
(Superseded to 100443)

$11.99

$

Usually ships in 3-6 days

0

9

Toro 1303

See Supercession: 100441
(Superseded to 100441)

$8.49

$

In Stock, only 1 left!

0

10

Toro 3503

FORK-SHIFT

$136.99

$

Usually ships in 3-6 days

0

11

Toro 3515

See Supercession: 5615
(Superseded to 5615)

$116.99

$

Usually ships in 3-6 days

0

12

Toro 5172

See Supercession: 5616
(Superseded to 5616)

$78.99

$

Usually ships in 3-6 days

0

13

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 9

0

14

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

15

Toro 3518

See Supercession: 106030
(Superseded to 106030)

$2.99

$

In Stock, only 3 left!

0

16

Toro 3573

See Supercession: 5614
(Superseded to 5614)

$

$

Not available

17

Toro 1518

BEARING-NEEDLE

$26.99

$

Usually ships in 3-6 days

0

18

Toro 1232

See Supercession: 100863
(Superseded to 100863)

$14.99

$

In Stock, only 4 left!

0

19

Toro 5173

GEAR-HI AND 2ND

$146.99

$

Usually ships in 3-6 days

0

20

Toro 5174

GEAR-LOW AND REVERSE

$192.99

$

Usually ships in 3-6 days

0

21

Toro 5176

DISCONTINUED

$

$

Not available

22

Toro 5176

DISCONTINUED

$

$

Not available

23

Toro 3910

DISCONTINUED

$

$

Not available

24

Toro 937014

Key
(Superseded to 3257-5)

$5.49

$

In Stock, Qty 7

0

25

Toro 3525

See Supercession: 7269
(Superseded to 7269)

$

$

Not available

26

Toro 1504

BUSHING-BRONZE

$43.99

$

Usually ships in 3-6 days

0

27

Toro 3528

DISCONTINUED

$

$

Not available

28

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

29

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$161.99

$

Usually ships in 3-6 days

0

30

Toro 1516

BUSHING

$12.99

$

Usually ships in 3-6 days

0

31

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

32

Toro 4166

DISCONTINUED XREF

$

$

Not available

33

Toro 2821

GEAR DIFF BULL

$

$

Not available

34

Toro 2822

DIFF CASE RH

$

$

Not available

35

Toro 2823

See Supercession: 6446
(Superseded to 6446)

$

$

Not available

36

Toro 2820

DISCONTINUE

$

$

Not available

37

Toro 933217

DISCONTINUED

$

$

Not available

38

Toro 2819

DISCONTINUED

$

$

Not available

39

Toro 2827

DISCONTINUED

$

$

Not available

40

Toro 908044-4

Bolt - Hex 3 3/8 16 x 4

$

$

Currently unavailable

41

Toro 1022

Nut-Hex Lock 3/8-16

$

$

Not available

42

Toro 2824

Clevis

$

$

Not available

43

Toro 2825

DISCONTINUED

$

$

Not available

44

Toro 3912

GASKET-TRANSMISSION

$8.99

$

In Stock, only 2 left!

0

45

Toro 2826

BLOCK

$

$

Not available

46

Toro 4161

DISCONTINUED

$

$

Not available

47

Toro 1530

See Supercession: 704019
(Superseded to 704019)

$

$

Not available

48

Toro 1531

DUP PART SEE $BOOK

$

$

Not available

49

Toro 2828

DISCONTINUED

$

$

Not available

50

Toro 943420-4

Plug 3/8 Pipe

$

$

Currently unavailable

51

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

52

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

53

Toro 91511-6

Nut 1/4-20 Nylok

$

$

Currently unavailable

54

Toro 933168

Roll Pin
(Superseded to 32121-114)

$1.99

$

In Stock, only 2 left!

0

55

Toro 909854-6

Set Screw Nylok 1/4-20 x 3/4

$

$

Currently unavailable

56

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

57

Toro 3577

COVER-DUST

$

$

Not available

58

Toro 2709

See Supercession: 102891
(Superseded to 102891)

$61.99

$

Usually ships in 3-6 days

0

59

Toro 3902

DISCONTINUED

$

$

Not available

60

Toro 937022

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0

61

Toro S-50-100

Snap Ring 1" Shaft

$

$

Currently unavailable

62

Toro 4437

See Supercession: 7376
(Superseded to 7376)

$151.99

$

Usually ships in 3-6 days

0

63

Toro 90B002-4

Bolt - Hex 1/4-20 x 5/8

$

$

Currently unavailable

64

Toro 9200B1-4

Lock Washer 1/4 Dia.

$

$

Currently unavailable

65

Toro 4483

Ass-y. Shift Stick

$

$

Currently unavailable

66

Toro 2707

DISCONTINUED

$

$

Not available

67

Toro 909543-4

Set Screw Sq. Hd. 5/16-18 x

$

$

Currently unavailable

68

Toro 915235-4

Nut 5/16-18 Jam

$

$

Currently unavailable

69

Toro 909862-6

Set Screw 5/16-18 x 5/16

$

$

Currently unavailable

70

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

71

Toro 920083-4

Lockwasher

$

$

Currently unavailable

72

Toro 1488

DISCONTINUED

$

$

Not available

73

Toro 909554-4

Set Screw-3/8-16 x 1

$

$

Currently unavailable

74

Toro 937046

DISCONTINUED

$

$

Not available

75

Toro 3935

Rod

$

$

Currently unavailable

76

Toro 915605-4

Nut 3/-16 Elastic Stop

$

$

Currently unavailable

77

Toro 1487

BOLT-LUG, WHEEL

$15.99

$

Usually ships in 3-6 days

0

78

Toro 943460-4

Plug 1/4 Pipe

$

$

Currently unavailable

79

Toro S-52-3

Hairpin

$

$

Currently unavailable
