10533 - Lawn-Boy Medallion Walk-Behind Mower (SN: 006900001 - 006999999) (1996) HOUSING ASSEMBLY Parts Diagram

Medallion Walk-Behind Mower

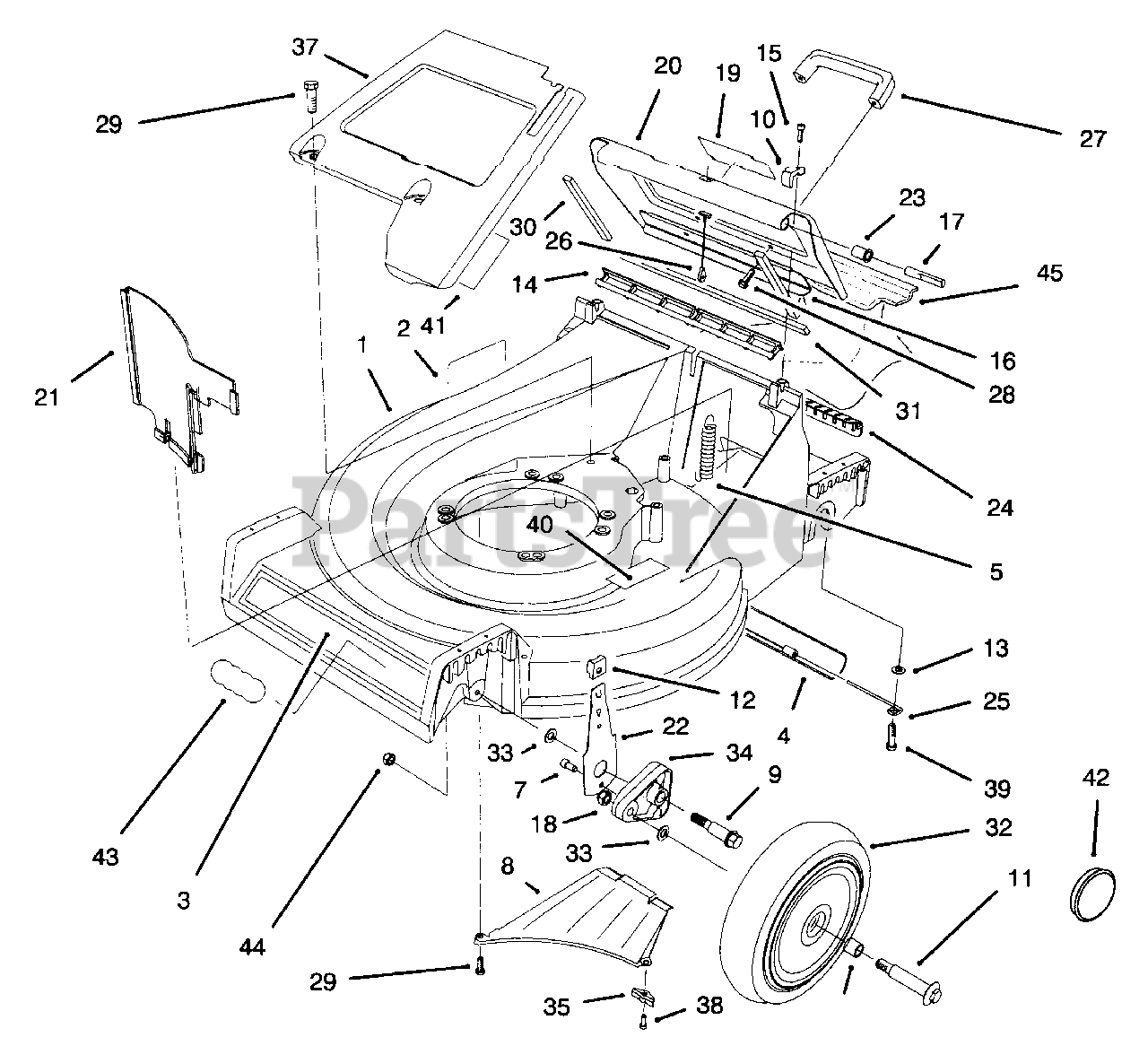

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 16-9609

Housing-Deck (Incl. Ref. #2 & 40)

$

$

Not available

2

Lawn-Boy 43-8480

Decal-Danger

$6.99

$

In Stock, Qty 6

0

3

Lawn-Boy 94-1246

Decal-Deck

$

$

Not available

4

Lawn-Boy 65-5350

Shield-Trailing

$50.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 65-5360

Spring-Extension

$27.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 32144-85

Screw-Hex Hd.

$1.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 65-5010

Ramp-Discharge
(Superseded to 65-5010-03)

$

$

Not available

9

Lawn-Boy 66-0560

Screw-Shoulder

$4.99

$

In Stock, Qty 15

0

10

Lawn-Boy 65-5140

Clamp-Hinge

$

$

Not available

11

Lawn-Boy 92-1057

Bolt-Wheel

$3.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 25-7740

Knob-Arm

$4.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 93-7361

Seal-Door

$

$

Not available

15

Lawn-Boy 65-5210

Screw-Thread Form.

$

$

Not available

16

Lawn-Boy 66-0610

Brace-Door

$

$

Not available

17

Lawn-Boy 65-5290

Pin-Hinge

$

$

Not available

18

Lawn-Boy 610358

Nut-Lock

$2.99

$

In Stock, Qty 12

0

19

Lawn-Boy 63-9050

Decal-Warning

$

$

Not available

20

Lawn-Boy 65-5000

Door-Discharge

$104.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 66-0020

Panel-Vertical

$

$

Not available

22

Lawn-Boy 66-0541

Spring Arm Ass'y-Front

$18.99

$

In Stock, Qty 6

0

23

Lawn-Boy 65-5460

Bushing-Door

$3.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 65-5150

Cover-Access

$

$

Not available

25

Lawn-Boy 76-1980

Hanger-Shield

$

$

Not available

26

Lawn-Boy 65-5370

Cable-Door

$18.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 65-5100

Handle-Hood

$9.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 46-8091

Screw-Tapping

$3.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 32144-70

Screw-Tapping

$2.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 65-5480

Seal-Door Side

$

$

Not available

31

Lawn-Boy 65-5490

Seal-Door End

$33.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 684777

Tire & Wheel Assembly-8"

$59.99

$

In Stock, only 2 left!

0

33

$2.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 66-0580

Arm-Pivot

$18.99

$

In Stock, Qty 6

0

35

Lawn-Boy 66-0640

Bracket-Discharge Ramp

$

$

Not available

37

Lawn-Boy 65-5660

Panel-Screen
(Superseded to 65-5660-03)

$54.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 65-5221

Screw-Thread Form.

$2.49

$

Usually ships in 3-6 days

0

39

Lawn-Boy 5-2490

Bolt-Shoulder

$

$

Not available

40

Lawn-Boy 93-7250

Decal-Warning

$15.99

$

In Stock, only 2 left!

0

41

Lawn-Boy 71-8680

Decal-Instructions

$

$

Not available

42

$2.99

$

In Stock, Qty 20+

0

43

Lawn-Boy 93-9878

Decal-Applique

$

$

Not available

44

Lawn-Boy 3296-6

Nut-Lock

$1.99

$

In Stock, Qty 20+

0

45

Lawn-Boy 71-9090

Plug-Mulching

$

$

Not available
