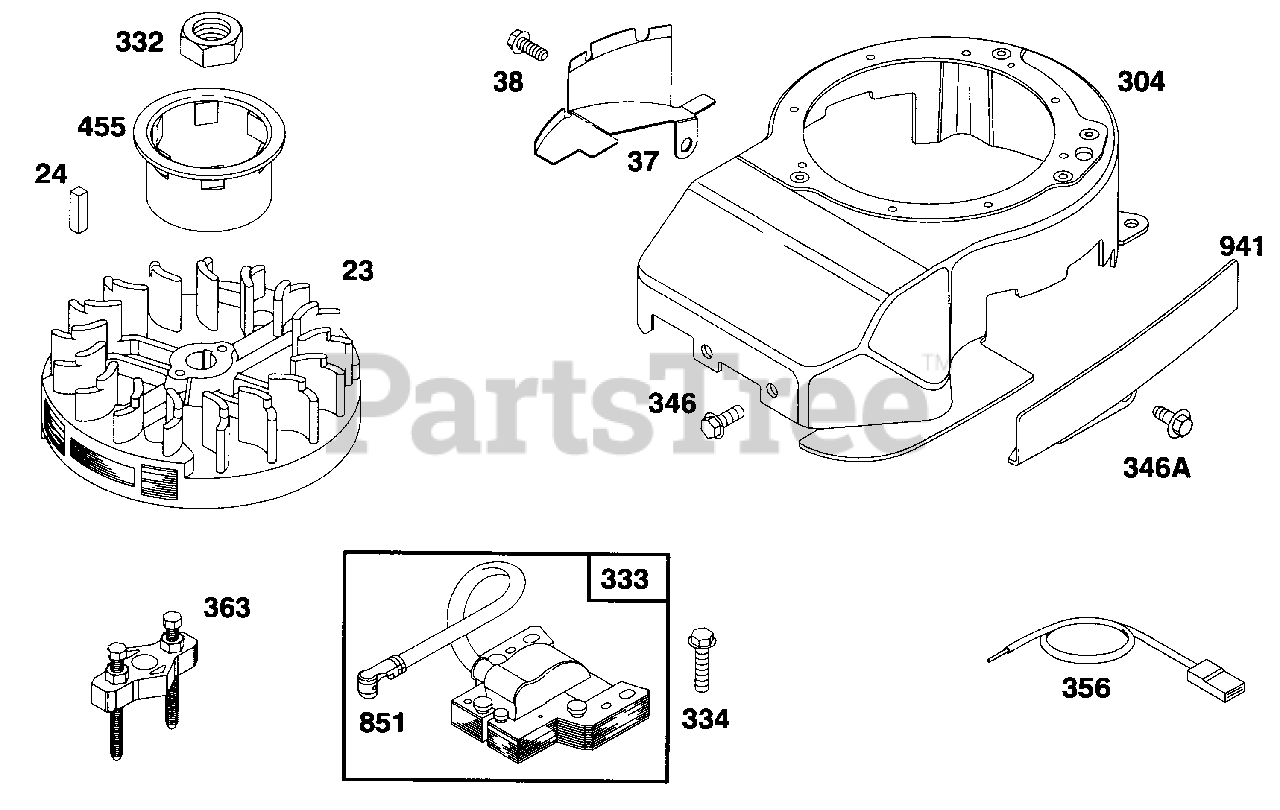

10533 - Lawn-Boy Medallion Walk-Behind Mower (SN: 006900001 - 006999999) (1996) ENGINE BRIGGS & STRATTON MODEL 99772-0938-A1 Parts Diagram

Medallion Walk-Behind Mower

ENGINE BRIGGS & STRATTON MODEL 99772-0938-A1 Parts Diagram

  • Title
23

Lawn-Boy 492177

Flywheel-Magneto

$

$

Currently unavailable

24

Lawn-Boy 222698

Key-Flywheel

$

$

Currently unavailable

37

Lawn-Boy 224511

Guard-Flywheel

$

$

Currently unavailable

38

Lawn-Boy 94608

Screw-Hex. Head

$

$

Currently unavailable

304

Lawn-Boy 494962

Housing-Blower

$

$

Currently unavailable

332

Lawn-Boy 92284

Nut-Flywheel

$

$

Currently unavailable

333

Lawn-Boy 802574

Armature-Magneto

$

$

Currently unavailable

334

Lawn-Boy 94731

Screw-Armature Mtg.

$

$

Currently unavailable

346

Lawn-Boy 94513

Screw-Hex. Head

$

$

Currently unavailable

346A

Lawn-Boy 94582

Screw-Hex. Head

$

$

Currently unavailable

356

Lawn-Boy 398808

Wire-Ground

$

$

Currently unavailable

363

Lawn-Boy 19069

Flywheel Puller

$

$

Currently unavailable

455

Lawn-Boy 224250

Cup-Starter

$

$

Currently unavailable

851

Lawn-Boy 493880

Terminal-Spark Plug

$

$

Currently unavailable

941

Lawn-Boy 281206

Cover-Cut-Out

$

$

Currently unavailable
