10533 - Lawn-Boy Medallion Walk-Behind Mower (SN: 005900001 - 005999999) (1995) REAR AXLE ASSEMBLY Parts Diagram

Medallion Walk-Behind Mower

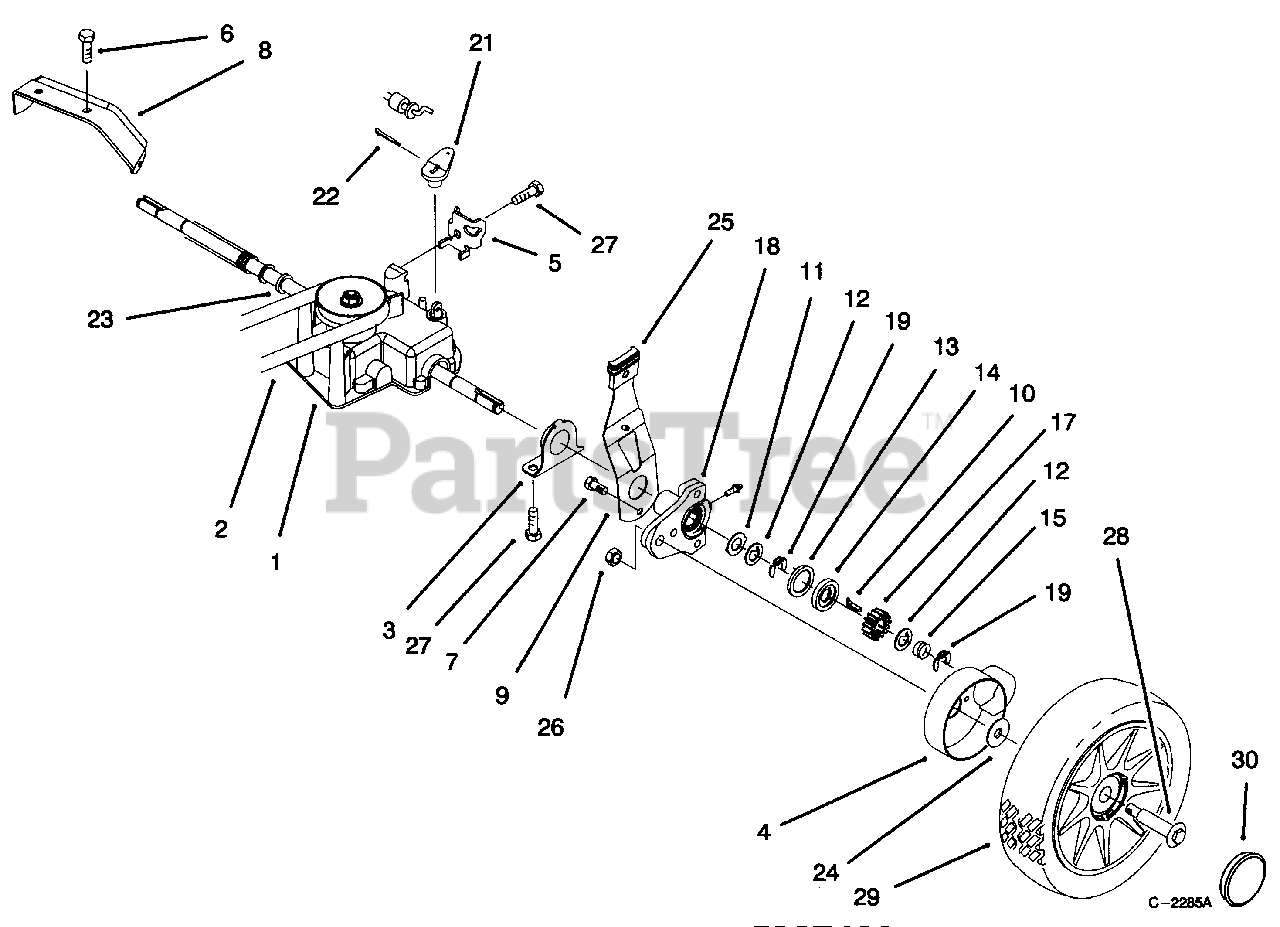

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 62-6673

Gear Case Assembly

$876.99

$

Usually ships in 3-6 days

0

2

$28.99

$

In Stock, only 2 left!

0

3

$9.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 74-1660

Cover-Wheel

$8.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 76-2930

Retainer-Cable

$

$

Not available

6

Lawn-Boy 49-2040

Screw-Hex Hd.

$2.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 32144-85

Screw-Hex Hd.

$1.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 65-5190

Bracket-Belt Guide
(Superseded to 65-5190-03)

$23.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 65-5441

Spring Arm Ass'y-Rear

$

$

Not available

10

Lawn-Boy 66-6050

Key-Rocking L.H.
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

Lawn-Boy 66-6040

Key-Rocking R.H.
(Superseded to 139-6643)

Note: Not Illustrated

$7.49

$

In Stock, Qty 12

0

11

Lawn-Boy 65-4730

Washer-Thrust

$2.49

$

In Stock, only 3 left!

0

12

Lawn-Boy 65-4740

Washer-Thrust Keyed

$2.49

$

In Stock, only 2 left!

0

13

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 5

0

14

$1.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

In Stock, Qty 18

0

18

Lawn-Boy 65-5042

Arm-Pivot

$64.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 65-2720

Ring-Retaining

$1.49

$

In Stock, Qty 6

0

21

Lawn-Boy 76-0920

Lever-Shift

$7.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 3272-5

Pin-Cotter

$1.49

$

In Stock, Qty 5

0

23

$4.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 74-1671

Spacer-Cover Wheel

$1.99

$

In Stock, Qty 12

0

25

Lawn-Boy 25-7740

Knob-Arm

$4.99

$

In Stock, Qty 8

0

26

Lawn-Boy 610358

Nut-Lock

$2.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 32144-70

Screw-Tapping

$2.99

$

In Stock, Qty 16

0

28

Lawn-Boy 92-1057

Bolt-Wheel

$3.99

$

In Stock, Qty 7

0

29

Lawn-Boy 93-7350

Wheel & Tire Assembly

$96.99

$

Usually ships in 3-6 days

0

30

$2.99

$

In Stock, Qty 20+

0
