10533 - Lawn-Boy Medallion Walk-Behind Mower (SN: 005900001 - 005999999) (1995) GEAR CASE ASSEMBLY Parts Diagram

Medallion Walk-Behind Mower

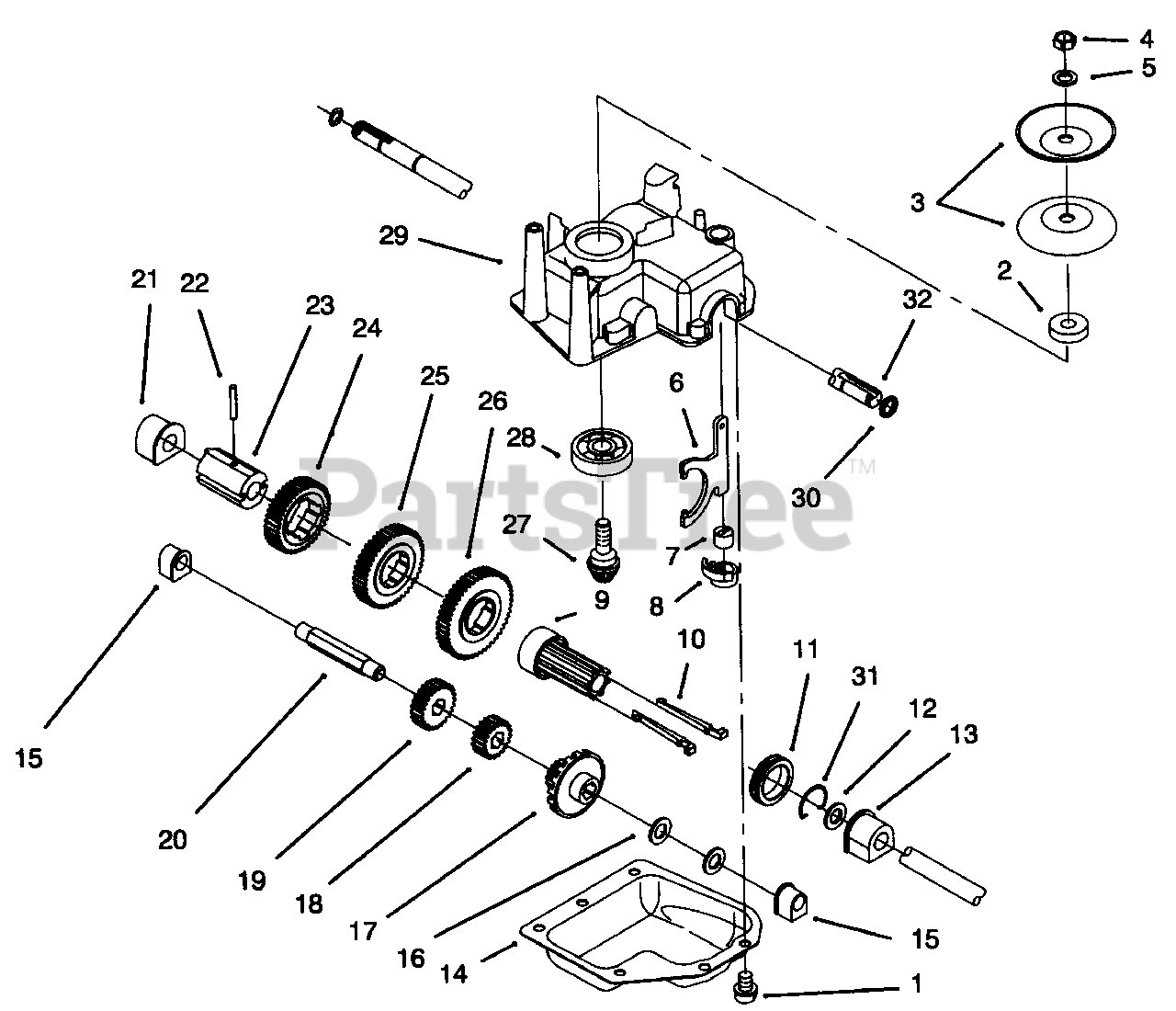

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 49-2040

Screw-Self Tapping

$2.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 62-6660

Spacer

$1.49

$

In Stock, only 3 left!

0

3

Lawn-Boy 60-8840

Pulley-Half
(Superseded to 100-1176)

$8.49

$

In Stock, only 2 left!

0

4

Lawn-Boy 3296-5

Locknut

$3.49

$

In Stock, Qty 8

0

5

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 60-8870

Yoke-Shift

$23.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 29-9570

Bushing-Yoke

$11.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 60-8810

Retainer-Shift Fork

$

$

Not available

9

Lawn-Boy 76-0780

Sleeve-Shift Key

$6.49

$

In Stock, only 3 left!

0

10

Lawn-Boy 76-0760

Key-Shift

$

$

Not available

11

Lawn-Boy 76-0770

Collar-Shift

$21.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 36-4780

Washer-Thrust

$7.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 60-8770

Bushing-Output Shaft

$6.99

$

In Stock, only 3 left!

0

14

Lawn-Boy 60-8730

Cover-Gear Case
(Superseded to 60-8730-03)

$

$

Not available

15

Lawn-Boy 60-8750

Bushing-Int. Shaft

$5.99

$

In Stock, Qty 10

0

16

Lawn-Boy 36-4791

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 55-3760

Gear-Pinion 15 Tooth
(Superseded to 104-7668)

$30.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 55-3780

Gear-Pinion 20 Tooth

$35.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 55-3800

Gear-Pinion

$40.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 60-8800

Shaft-Intermediate
(Superseded to 614696)

$94.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 60-8850

Bushing-Output Shaft

$7.49

$

In Stock, Qty 17

0

22

Lawn-Boy 32121-120

Pin-Coil

$1.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 60-8790

Sleeve-Gear

$50.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 55-3810

Gear-39 Tooth 3rd Gear

$50.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 55-3790

Gear-44 Tooth 2nd Gear

$62.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 55-3770

Gear-49 Tooth 1st Gear

$62.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 60-8890

Pinion-Bevel
(Superseded to 104-7667)

$15.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 38-7820

Bearing-Ball

$13.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 60-8710

Gear Case-Upper

$

$

Not available

30

Lawn-Boy 237-153

O-Ring

$3.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 65-5250

Clip-Spring

$0.99

$

In Stock, Qty 14

0

32

Lawn-Boy 65-4770

Shaft-Output

$154.99

$

In Stock, only 1 left!

0
