10533 - Lawn-Boy Medallion Walk-Behind Mower (SN: 005900001 - 005999999) (1995) ENGINE BRIGGS & STRATTON MODEL 99772-0938-A1 Parts Diagram

Medallion Walk-Behind Mower

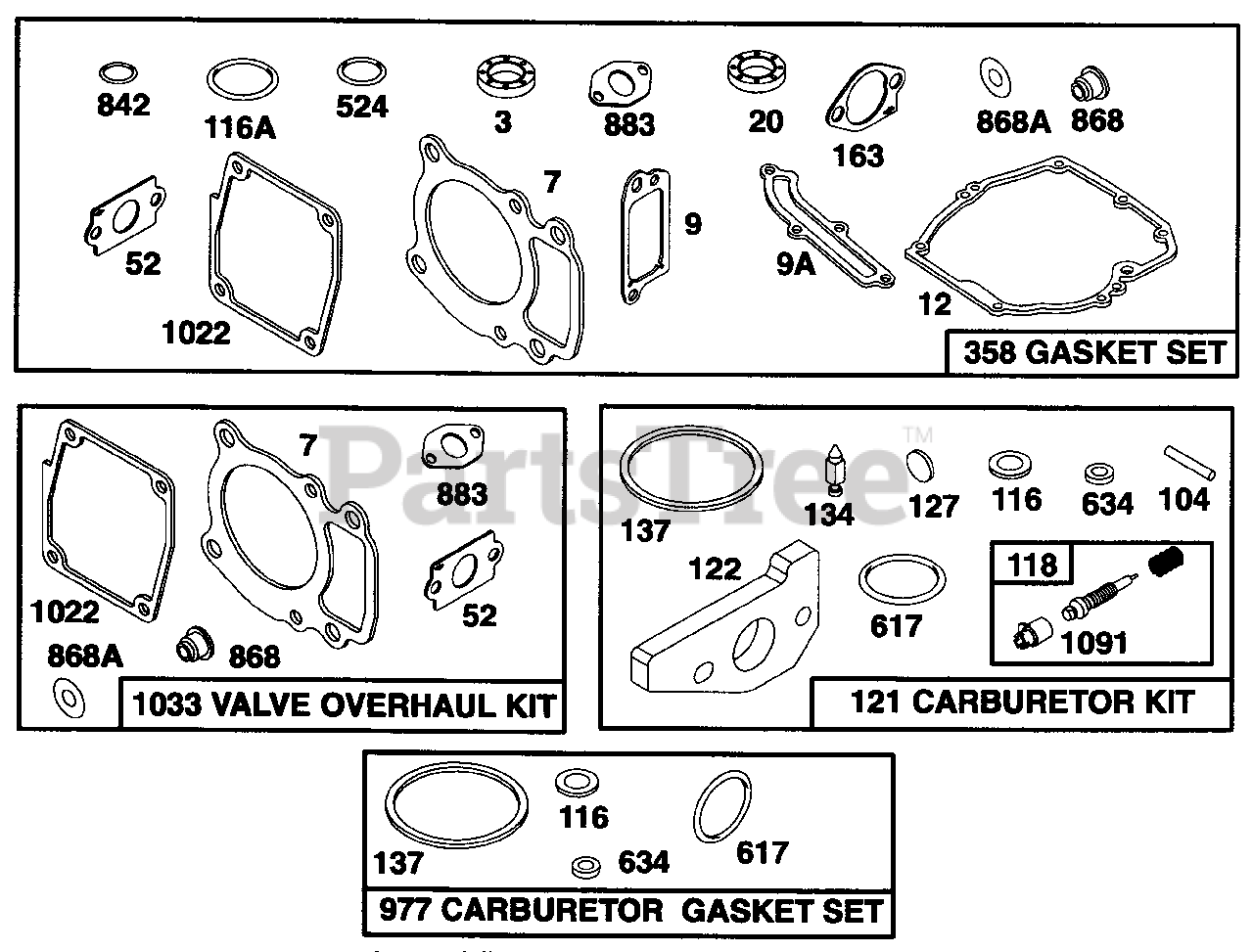

ENGINE BRIGGS & STRATTON MODEL 99772-0938-A1 Parts Diagram

  • Title

3

Lawn-Boy 299819

Seal-Oil

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

7

Lawn-Boy 272314

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 496055. Included in Valve Overhaul Kit-Part No. 496956.

$

$

Currently unavailable

9

Lawn-Boy 272481

Gasket-Breather

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

9A

Lawn-Boy 272238

Gasket-Breather

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

12

Lawn-Boy 272324

Gasket-Engine Base

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

20

Lawn-Boy 399781

Seal-Oil

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

52

Lawn-Boy 272487

Gasket-Intake

Note: Included in Gasket Set-Part No. 496055. Included in Valve Overhaul Kit-Part No. 496956.

$

$

Currently unavailable

104

Lawn-Boy 231371

Pin-Float Hinge
(Superseded to 701979)

Note: Included in Carburetor Overhaul Kit-Part No. 497719.

$

$

Not available

116

Gasket-Sealing Note: Sold in Kit Only.

Note: Included in Carburetor Overhaul Kit-Part No. 497719. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

116A

Lawn-Boy 280891

O-Ring

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

118

Lawn-Boy 497717

Valve-Idle Adjust

Note: Included in Carburetor Overhaul Kit-Part No. 497719.

$

$

Currently unavailable

121

Lawn-Boy 497719

Carburetor Overhaul Kit

$

$

Currently unavailable

122

Lawn-Boy 493669

Adapter Assy.

Note: Included in Carburetor Overhaul Kit-Part No. 497719.

$

$

Currently unavailable

127

Plug-Welch Note: Sold in Kit Only.

Note: Included in Carburetor Overhaul Kit-Part No. 497719.

$

$

Not available

134

Lawn-Boy 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 497719.

$

$

Currently unavailable

137

Gasket-Float Bowl Note: Sold in Kit Only.

Note: Included in Carburetor Overhaul Kit-Part No. 497719. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

163

Lawn-Boy 272512

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

358

Lawn-Boy 496055

Gasket Set

$

$

Currently unavailable

524

Lawn-Boy 280393

Seal-O-Ring

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-Fuel Intake Adapter

Note: Included in Carburetor Overhaul Kit-Part No. 497719. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Currently unavailable

634

Washer-Seal Note: Sold in Kit Only.

Note: Included in Carburetor Overhaul Kit-Part No. 497719. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

842

Lawn-Boy 280966

Seal-O-Ring

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

868

Lawn-Boy 493661

Seal Assy.-Valve

Note: Included in Gasket Set-Part No. 496055. Included in Valve Overhaul Kit-Part No. 496956.

$

$

Currently unavailable

868A

Lawn-Boy 272376

Seal-Valve

Note: Included in Gasket Set-Part No. 496055. Included in Valve Overhaul Kit-Part No. 496956.

$

$

Currently unavailable

883

Lawn-Boy 272313

Gasket-Exhaust

Note: Included in Gasket Set-Part No. 496055. Included in Valve Overhaul Kit-Part No. 496956.

$

$

Currently unavailable

977

Lawn-Boy 490937

Carburetor Gasket Set

$

$

Currently unavailable

1022

Lawn-Boy 272323

Gasket-Rocker Cover

Note: Included in Gasket Set-Part No. 496055. Included in Valve Overhaul Kit-Part No. 496956.

$

$

Currently unavailable

1033

Lawn-Boy 496056

Overhaul Kit-Valve

$

$

Currently unavailable

1091

Lawn-Boy 281425

Cap-Limiter

Note: Included in Carburetor Overhaul Kit-Part No. 497719.

$

$

Currently unavailable
