10533 - Lawn-Boy Medallion Walk-Behind Mower (SN: 005900001 - 005999999) (1995) ENGINE BRIGGS & STRATTON MODEL 99772-0638-01 ENGINE BRIGGS & STRATTON MODEL 99772-0938-A1 Parts Diagram

Medallion Walk-Behind Mower

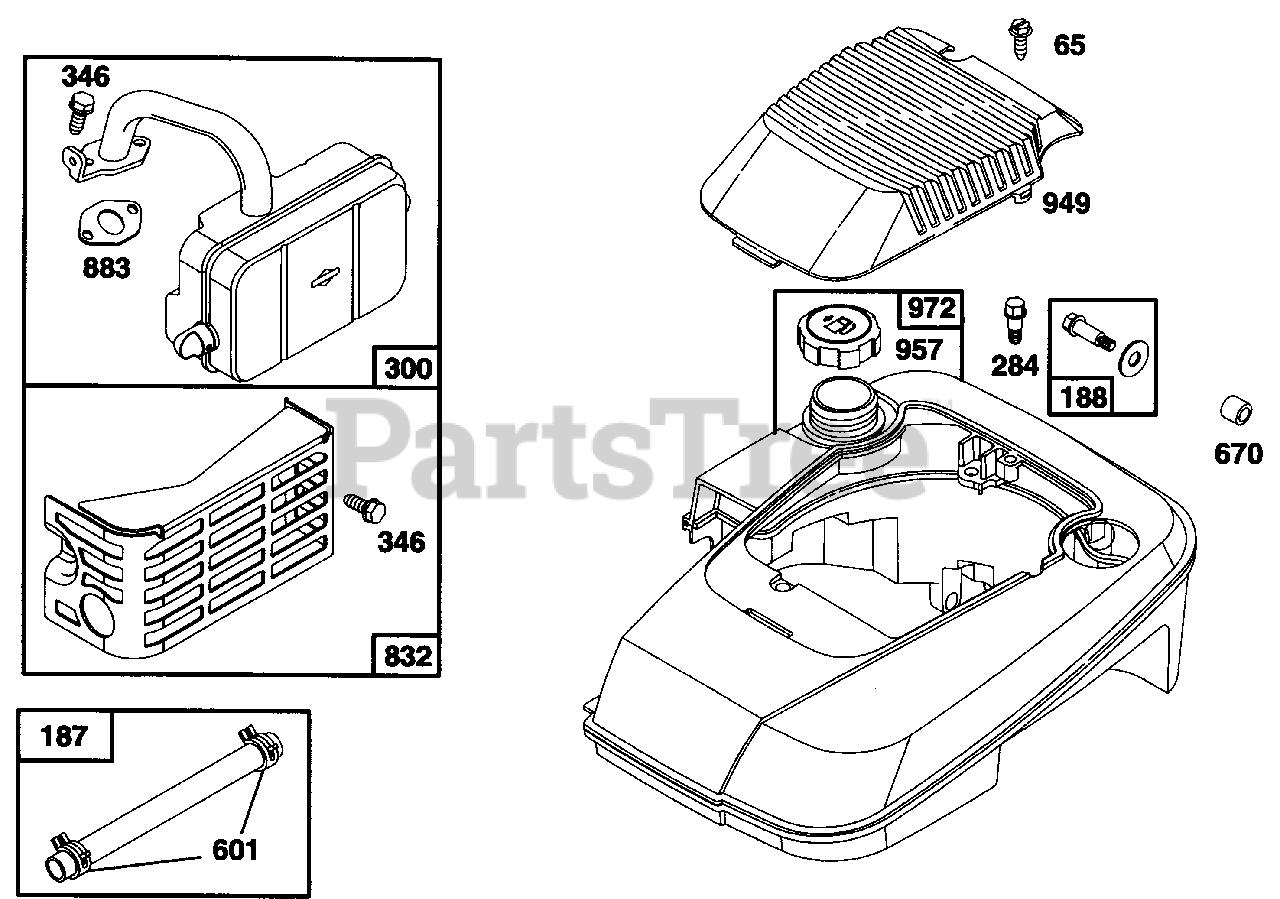

ENGINE BRIGGS & STRATTON MODEL 99772-0638-01 ENGINE BRIGGS & STRATTON MODEL 99772-0938-A1 Parts Diagram

  • Title
65

Lawn-Boy 94058

Screw-Guard Mtg.

$

$

Currently unavailable

187

Lawn-Boy 296004

Hose-Fuel (Cut To Suit)

$

$

Currently unavailable

188

Lawn-Boy 398540

Screw-Tank Mtg.

$

$

Currently unavailable

284

Lawn-Boy 94511

Screw-Hex. Head

$

$

Currently unavailable

300

Lawn-Boy 494717

Muffler-Exhaust

$

$

Currently unavailable

346

Lawn-Boy 94513

Screw-Hex. Head

$

$

Currently unavailable

601

Lawn-Boy 93053

Clamp-Fuel Hose

$

$

Currently unavailable

670

Lawn-Boy 280512

Spacer-Fuel Tank (Includes 2)

$

$

Currently unavailable

832

Lawn-Boy 494719

Guard-Muffler

$

$

Currently unavailable

883

Lawn-Boy 272313

Gasket-Exhaust

Note: Included in Gasket Set-Part No. 496055. Included in Valve Overhaul Kit-Part No. 496956.

$

$

Currently unavailable

949

Lawn-Boy 281406

Guard-Finger

$

$

Currently unavailable

957

Lawn-Boy 397974

Cap-Fuel Tank

$

$

Currently unavailable

972

Lawn-Boy 494973

Tank-Fuel

$

$

Currently unavailable
