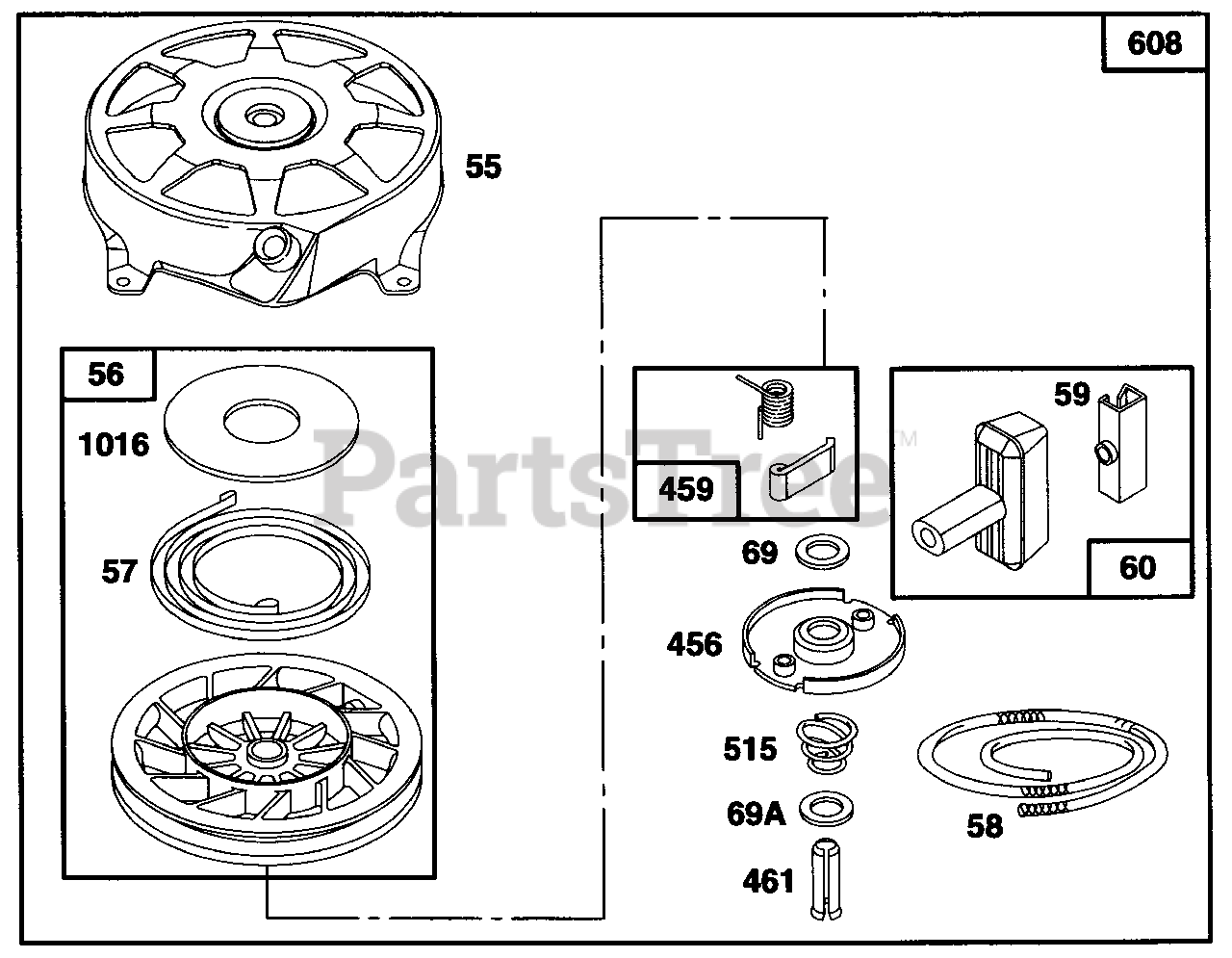

10533 - Lawn-Boy Medallion Walk-Behind Mower (SN: 005900001 - 005999999) (1995) ENGINE BRIGGS & STRATTON MODEL 99772-0638-01, ENGINE BRIGGS & STRATTON MODEL 99772-0938-A1 Parts Diagram

Medallion Walk-Behind Mower

ENGINE BRIGGS & STRATTON MODEL 99772-0638-01, ENGINE BRIGGS & STRATTON MODEL 99772-0938-A1 Parts Diagram

  • Title
55

Lawn-Boy 494671

Housing-Rewind Starter

$

$

Currently unavailable

56

Lawn-Boy 493824

Pulley-Rewind Starter

$

$

Currently unavailable

57

Lawn-Boy 262594

Spring-Rewind Starter

$

$

Currently unavailable

58

Lawn-Boy 280399

Rope-Starter (Cut To Suit)

$

$

Currently unavailable

59

Lawn-Boy 396892

Insert-Rewind Handle

$

$

Currently unavailable

60

Lawn-Boy 393152

Handle-Rewind Starter

$

$

Currently unavailable

69

Lawn-Boy 280973

Washer-Spring

$

$

Currently unavailable

69A

Lawn-Boy 224322

Washer-Flat

$

$

Currently unavailable

456

Lawn-Boy 224321

Retainer-Rewind Starter

$

$

Currently unavailable

459

Lawn-Boy 492833

Pawl-Starter

$

$

Currently unavailable

461

Lawn-Boy 262626

Pin-Shaft

$

$

Currently unavailable

515

Lawn-Boy 262625

Spring-Torsion

$

$

Currently unavailable

608

Lawn-Boy 494960

Starter Assy.-Rewind

$

$

Currently unavailable

608

Includes: 92987 Nut-Hex

$

$

Not available

608

Lawn-Boy 94128

Screw-Hex. Hd.

$

$

Currently unavailable

1016

Lawn-Boy 224278

Cover-Spring

$

$

Currently unavailable
