10533 - Lawn-Boy Medallion Walk-Behind Mower (SN: 005900001 - 005999999) (1995) ENGINE BRIGGS & STRATTON MODEL 99772-0638-01 Parts Diagram

Medallion Walk-Behind Mower

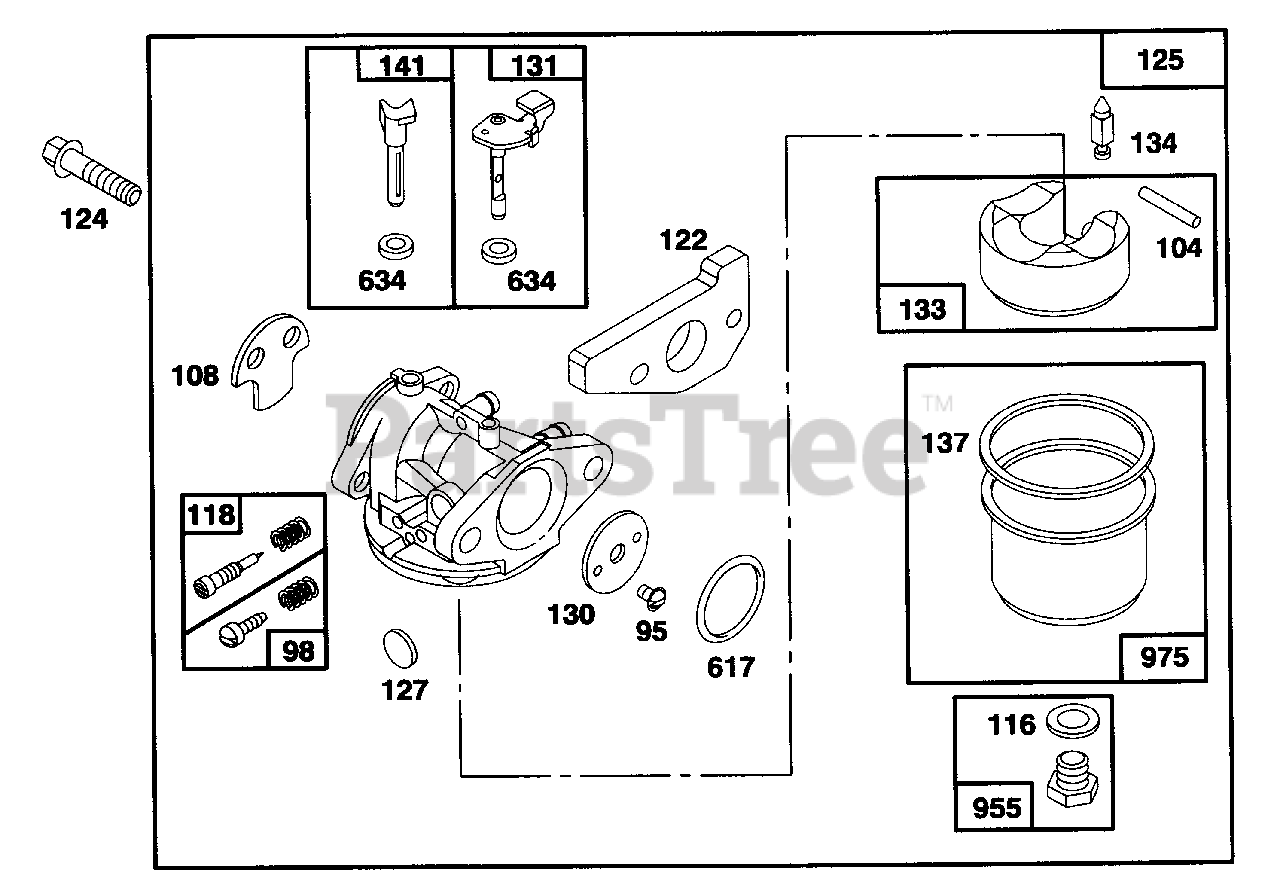

ENGINE BRIGGS & STRATTON MODEL 99772-0638-01 Parts Diagram

  • Title

95

Lawn-Boy 94098

Screw-Valve Mtg.

$

$

Currently unavailable

98

Lawn-Boy 398185

Screw-Idle Adj.

$

$

Currently unavailable

104

Lawn-Boy 231371

Pin-Float Hinge
(Superseded to 701979)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

108

Lawn-Boy 223471

Valve-Choke

$

$

Currently unavailable

116

Gasket-Sealing Note: Sold in Kit Only.

Note: Included in Carburetor Overhaul Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

118

Lawn-Boy 493765

Valve & Spring-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

122

Lawn-Boy 493669

Adapter Assy.

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

124

Lawn-Boy 94656

Screw-Hex. Head (Carb. Mtg.)

$

$

Currently unavailable

125

Lawn-Boy 494971

Carburetor

$

$

Currently unavailable

127

Plug-Welch Note: Sold in Kit Only.

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

130

Lawn-Boy 223470

Valve-Throttle

$

$

Currently unavailable

131

Lawn-Boy 493267

Shaft-Throttle

$

$

Currently unavailable

133

Lawn-Boy 398187

Float-Carburetor

$

$

Currently unavailable

134

Lawn-Boy 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

137

Gasket-Float Bowl Note: Sold in Kit Only.

Note: Included in Carburetor Overhaul Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

141

Lawn-Boy 494218

Shaft-Choke

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-Fuel Intake Adapter

Note: Included in Carburetor Overhaul Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Currently unavailable

634

Washer-Seal Note: Sold in Kit Only.

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

955

Lawn-Boy 494870

Screw-Fuel Bowl (Standard)

$

$

Currently unavailable

955

Note: For High Altitude Screw Order Part No. 496495.

$

$

Not available

975

Lawn-Boy 493640

Bowl Assy.-Carburetor

$

$

Currently unavailable
