10533 - Lawn-Boy Medallion Walk-Behind Mower (SN: 005900001 - 005999999) (1995) ENGINE ASSEMBLY Parts Diagram

Medallion Walk-Behind Mower

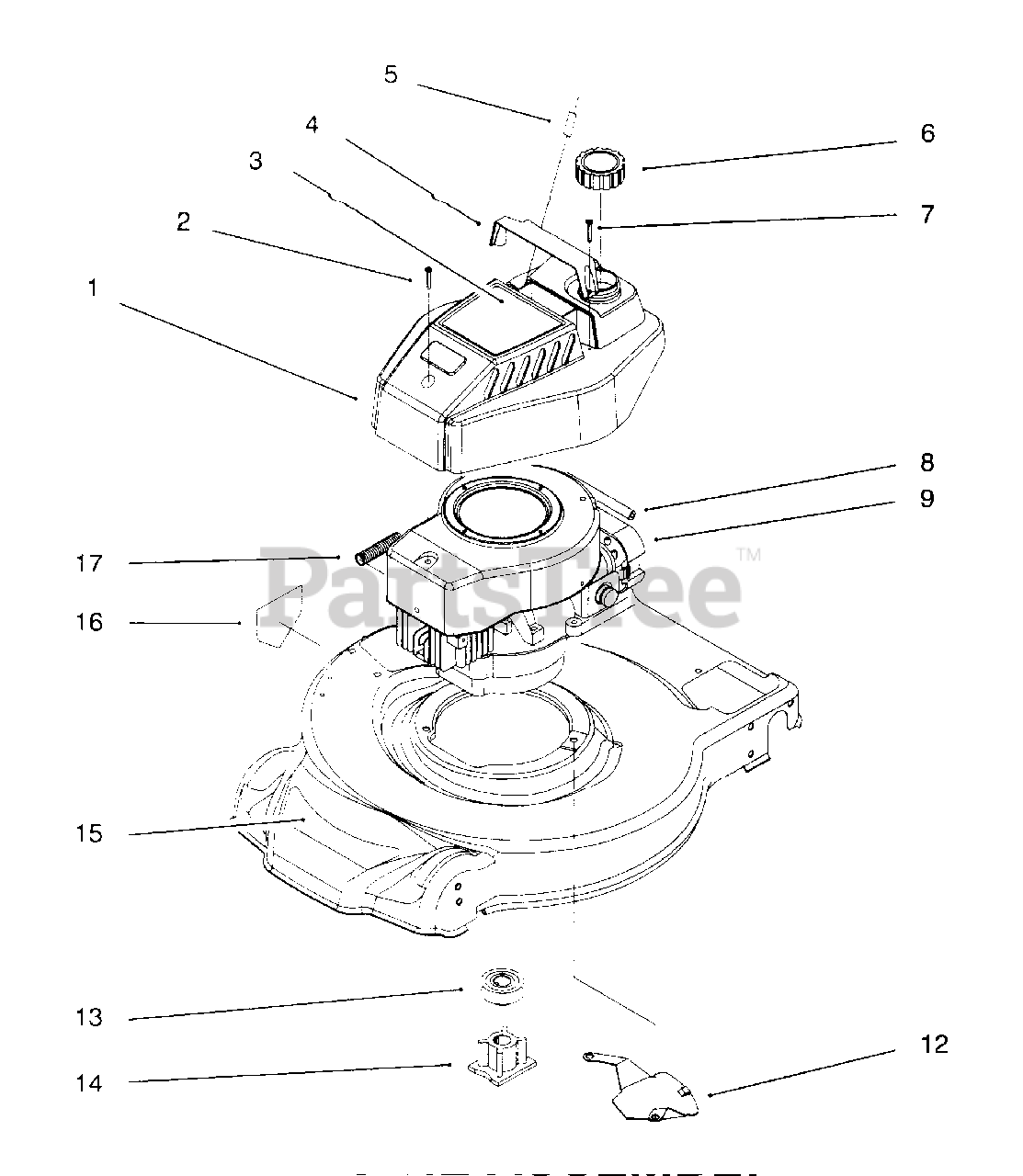

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Engine (Model No. 99772-0638-01)

$

$

Not available

1

Engine (Model No. 99772-0938-A1)

$

$

Not available

2

Lawn-Boy 93-7356

Decal-Recoil

$

$

Not available

3

Lawn-Boy 92-8615

Applique-Shroud

$31.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 32144-102

Screw-Tapping

$3.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 32144-70

Screw-Tapping

$2.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0
