10533 - Lawn-Boy Medallion Walk-Behind Mower (SN: 005900001 - 005999999) (1995) BRAKE ASSEMBLY Parts Diagram

Medallion Walk-Behind Mower

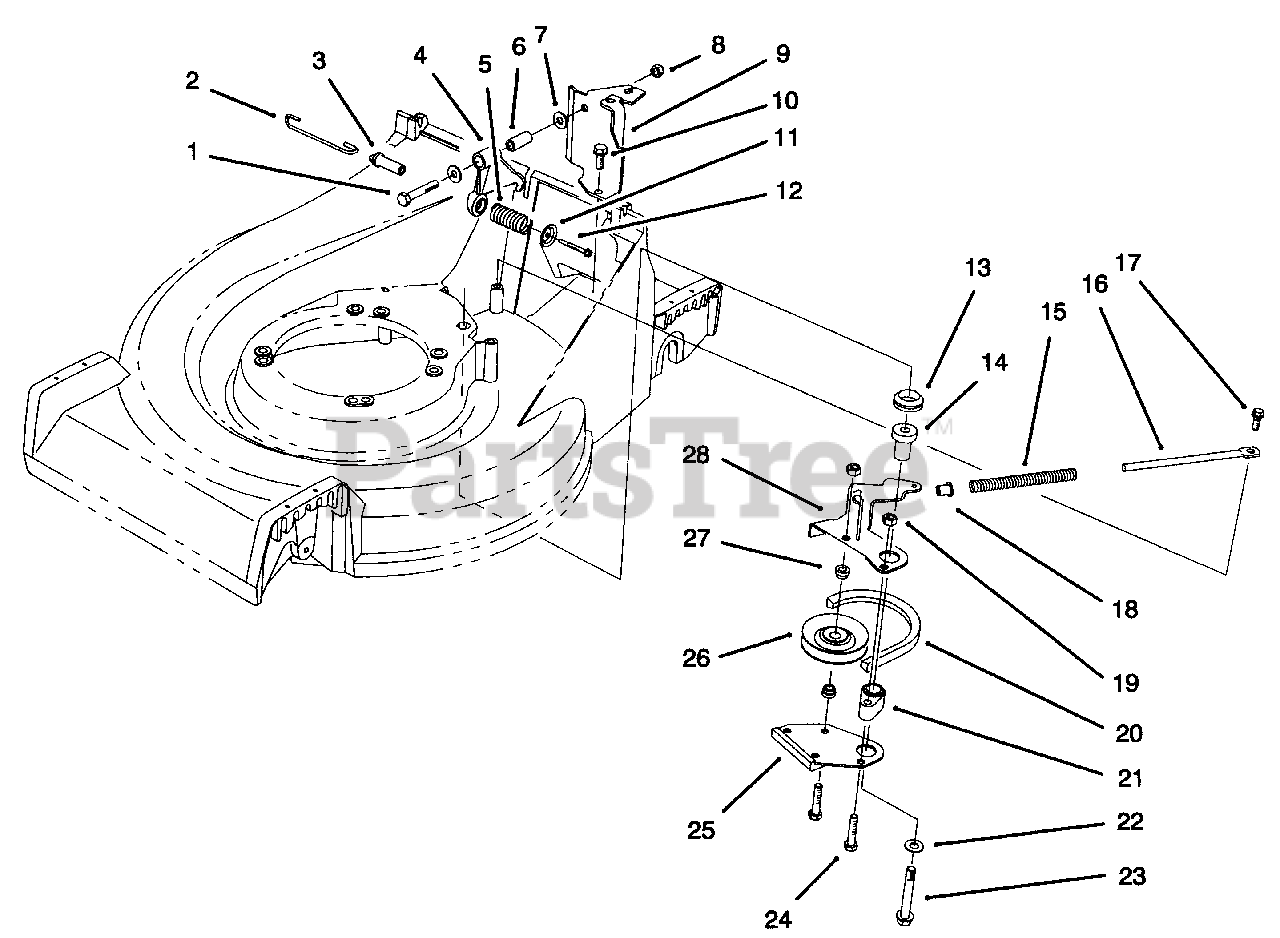

BRAKE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 322-21

Screw-Hex Hd. Cap
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 71-3650

Link-Control

$7.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 71-3660

Pin-Spring

$15.99

$

Usually ships in 3-6 days

0

$6.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 71-3630

Spring-Compression

$36.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 65-5690

Bushing-Bellcrank

$

$

Not available

7

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 32128-44

Nut-Flange

$2.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 66-0030

Bracket-Cable Support
(Superseded to 66-0030-03)

$

$

Not available

10

Lawn-Boy 32144-70

Screw-Tapping

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 65-5280

Retainer-Spring

$3.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 46-7040

Screw-Hex Washer Hd.

$2.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 253-151

Seal-Ring "V"

$

$

Not available

14

$

$

Not available

15

Lawn-Boy 71-3630

Spring-Compression

$36.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 65-5320

Rod-Spring Brake

$

$

Not available

17

Lawn-Boy 65-5670

Bolt-Shoulder

$

$

Not available

18

Lawn-Boy 66-0350

Bushing-Flange

$

$

Not available

19

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

20

$29.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 65-5070

Hub-Plate BBC Brake

$

$

Not available

22

Lawn-Boy 65-5380

Washer-Flat

$

$

Not available

23

Lawn-Boy 11-0580

Screw-Thread Forming

$18.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 321-13

Screw-Hex Hd. Cap

$4.99

$

In Stock, Qty 10

0

25

Lawn-Boy 65-5780

Shoe-Brake

$89.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 46-5650

Pulley-Idler
(Superseded to 117-5299)

$42.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 65-5130

Hub-Pulley Idler

$10.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 66-0090

Lever-Brake
(Superseded to 66-0090-03)

$29.99

$

Usually ships in 3-6 days

0
