10530 (31AH9V75063) - Troy-Bilt Polar Blast 30" Snow Thrower (2003) Auger Gear Assembly Parts Diagram

Polar Blast 30" Snow Thrower

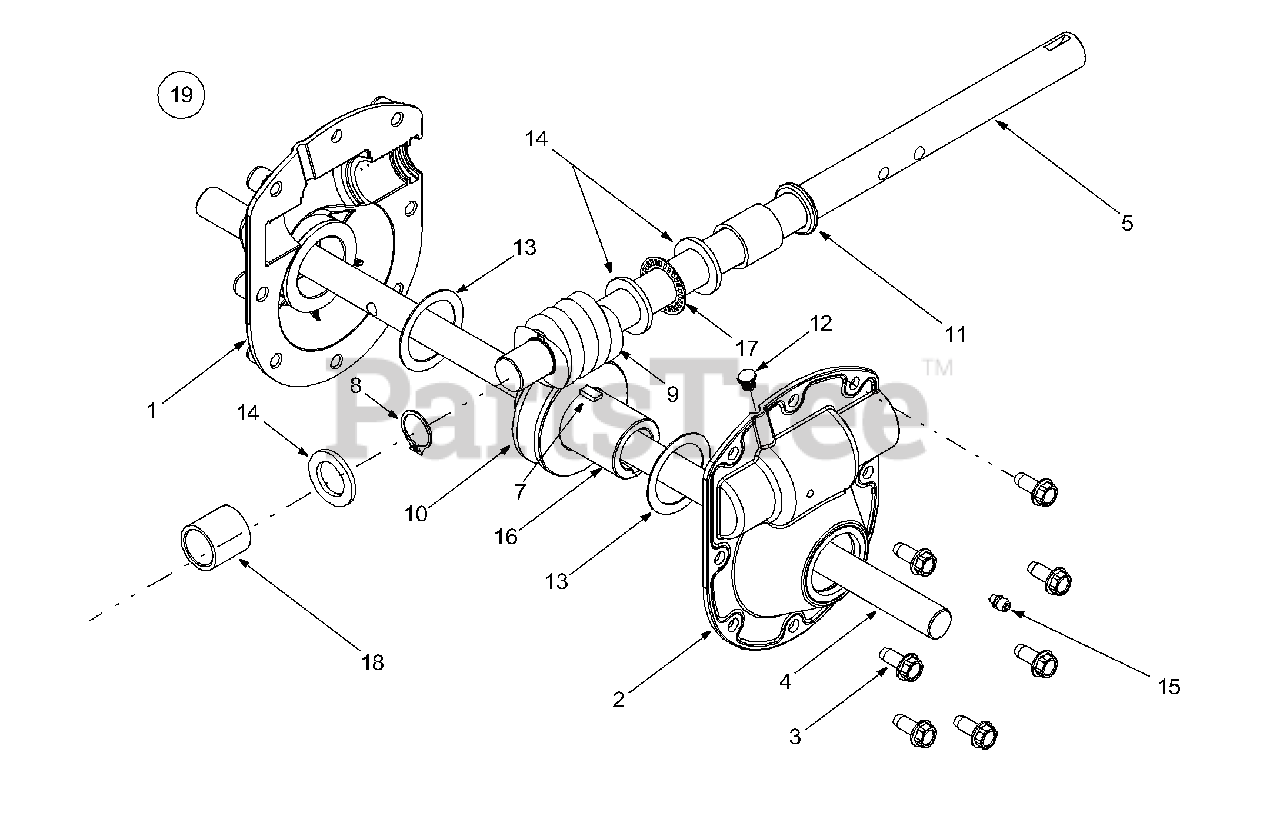

Auger Gear Assembly Parts Diagram

  • Title

1

Troy-Bilt 618-0246

Housing Assembly, RH
(Superseded to 918-0246)

$

$

Not available

2

Troy-Bilt 618-0435

Housing Assembly, LH
(Superseded to 918-0435)

$109.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-1260A

Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 738-0733B

Axle, Auger

$

$

Not available

5

Troy-Bilt 711-1133

Shaft, Auger Drive

$287.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 714-0126

Key, Hi Pro, 3/16 x 3/4

$4.99

$

In Stock, Qty 16

0

7

Troy-Bilt 714-0135

#91 Woodruff Key 1/4 x 3/4

$4.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 716-0111

Snap Ring .875 Dia.

$6.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 717-0299

Gear, Worm, Double Thread LH
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 717-1425

Gear, Worm, LH
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 721-0145

Seal, Oil .875 ID
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0266

Washer, Flat, 1.52 x 2.0
(Superseded to 936-0266)

$

$

Not available

14

Troy-Bilt 736-0291

Washer, Flat, .88 x 1.38

$11.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 737-3000

Lube Fitting, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 738-0275

Shaft, Worm Gear

$112.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 741-0184

Bearing, Thrust .877

$16.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 741-0217

Sleeve Bearing, .877 x .125 x 1.11
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 9

0

19

Troy-Bilt 618-0436

Auger Gearbox Assembly Complete

Note: also furnish ref 4

$710.99

$

Usually ships in 3-6 days

0
