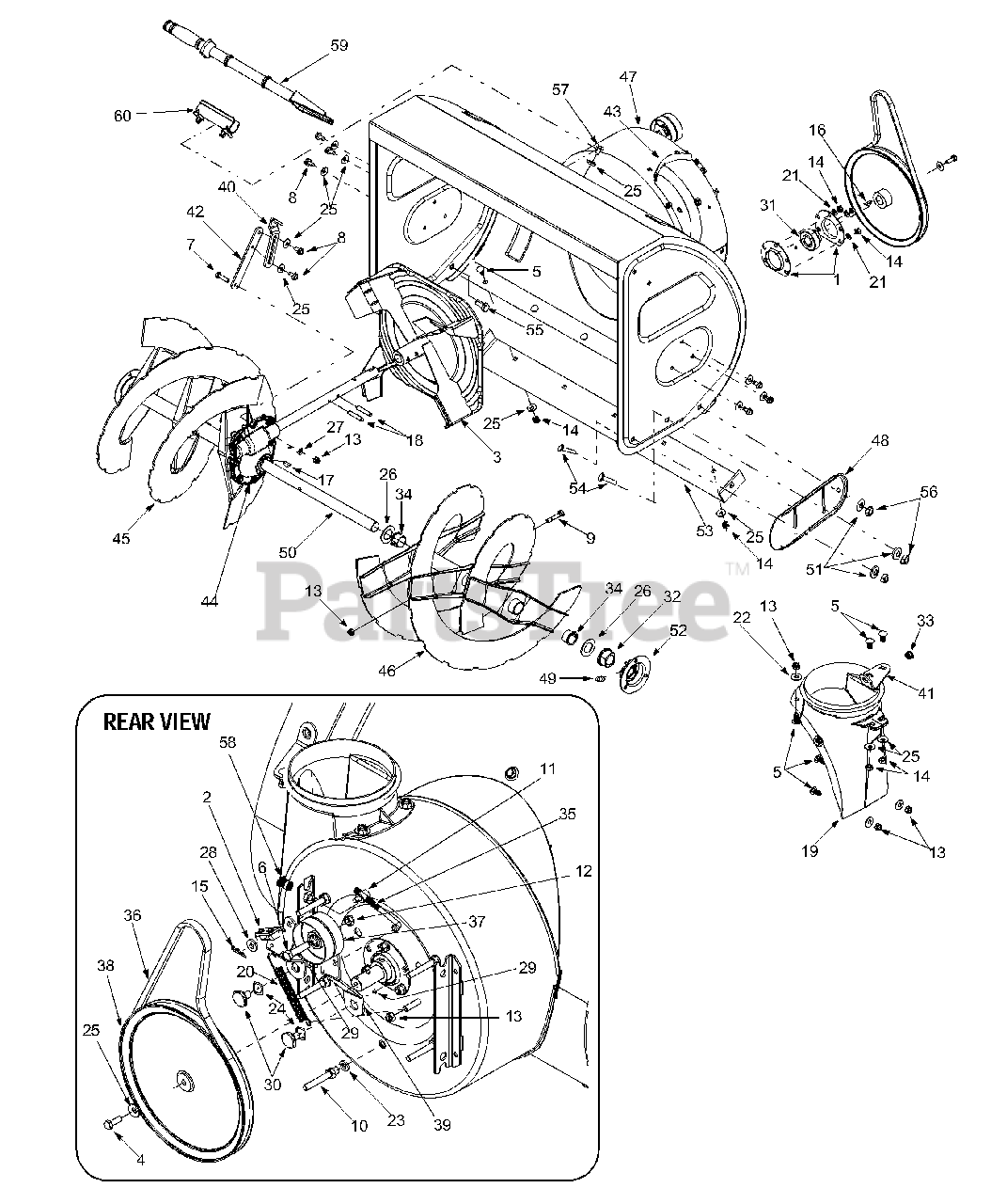

10530 (31AH9V75063) - Troy-Bilt Polar Blast 30" Snow Thrower (2003) Auger Assembly Parts Diagram

Polar Blast 30" Snow Thrower

Auger Assembly Parts Diagram

  • Title
1

Troy-Bilt 05244A

Bearing Housing
(Superseded to 05244B)

$23.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 618-0281A

Bracket Assembly: Auger Break
(Superseded to 918-0281A)

$64.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 684-0090A

Impeller Assembly: 16"
(Superseded to 684-0090B-0637)

Variations

Troy-Bilt 684-0090A-0637

IMPELLER ASM:16" - POWDER BLACK (0637)

$

$

Not available

$

$

4

Troy-Bilt 710-0371

Hex Lock Bolt 5/16-18 x .875"
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

5

Troy-Bilt 710-0451

Carriage Bolt 5/16-18 x .750"

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0459A

Hex Screw, Special 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 8

0

7

Troy-Bilt 710-0528

Hex Screw 5/16-18 x 1.25"

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0604A

Self-Tapp. Screw 5/16-18 x .625"

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0891

Shear Bolt 5/16-18 x 1.75"

$7.49

$

In Stock, Qty 16

0

$7.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 712-0116

Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

13

Troy-Bilt 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

$4.99

$

In Stock, Qty 13

0

$4.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 715-0118

Spiral Pin

$12.99

$

In Stock, Qty 7

0

19

Troy-Bilt 731-1696

Chute Adapter
(Superseded to 731-1696B)

$91.99

$

In Stock, Qty 12

0

20

Troy-Bilt 732-0858

Extension Spring

$24.99

$

In Stock, Qty 6

0

21

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0174

Wave Washer

$6.99

$

In Stock, Qty 11

0

25

Troy-Bilt 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-0250

Flat Washer

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0271

Spring Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

28

Troy-Bilt 736-3008

Flat Washer
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

29

UNKNOWN

$

$

Not available

30

Troy-Bilt 738-0281

Shoulder Screw

$10.99

$

In Stock, Qty 7

0

31

Troy-Bilt 741-04024

Self-Aligning Bearing
(Superseded to 941-04024)

$64.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 741-0192

Flange Bearing w/ Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 14

0

33

Troy-Bilt 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 741-0494

Flange Bushing

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 747-0980

Idler Rod: Auger
(Superseded to 747-0980A)

$47.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 754-0222A

V-Belt
(Superseded to 954-0222A)

$40.99

$

In Stock, Qty 11

0

37

Troy-Bilt 756-0178

Flat Idler

$20.99

$

In Stock, Qty 6

0

38

$94.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 784-0385A

Idler Bracket: Auger
(Superseded to 784-0385D)

Variations

Troy-Bilt 784-0385A-0637

Idler Auger Bracket - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

$29.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 784-5076

Support Bracket
(Superseded to 784-5076-0637)

Variations

Troy-Bilt 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 784-5123

Chute Crank Bracket
(Superseded to 784-5123-0637)

Variations

Troy-Bilt 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 784-5710

Support Plate
(Superseded to 784-5710-0637)

Variations

Troy-Bilt 784-5710-0637

PLATE-SUPPORT - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 784-5711

Chute Bracket
(Superseded to 784-5711-0637)

Variations

Troy-Bilt 784-5711-0498

Chute Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 784-5711-0637

Chute Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

44

Troy-Bilt 618-0436

Gear Assembly

$710.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 705-5206A

Spiral Assembly RH
(Superseded to 684-04192)

Variations

Troy-Bilt 705-5206A-0498

SPIRAL ASM - OLD CUB YELLOW (0498)

$215.99

$

Usually ships in 3-6 days

0

Troy-Bilt 705-5206A-0637

SPIRAL ASM-RH 30" - POWDER BLACK (0637)

$215.99

$

Usually ships in 3-6 days

0

Troy-Bilt 705-5206A-0638

SPIRAL ASM-RH 30" - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 705-5206A-0662

SPIRAL ASM-RH 30" - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 705-5206A-0674

SPIRAL ASM-RH 30" - YARDMAN YELLOW (0674)

$

$

Not available

$174.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 705-5207A

Spiral Assembly LH
(Superseded to 684-04193)

Variations

Troy-Bilt 705-5207A-0498

SPIRAL ASM-LH 30" - OLD CUB YELLOW (0498)

$226.99

$

In Stock, only 1 left!

0

Troy-Bilt 705-5207A-0637

SPIRAL ASM-LH 30" - POWDER BLACK (0637)

$226.99

$

In Stock, only 1 left!

0

Troy-Bilt 705-5207A-0662

SPIRAL ASM-LH 30" - OYSTER GRAY (0662)

$226.99

$

In Stock, only 1 left!

0

Troy-Bilt 705-5207A-0638

SPIRAL ASM-LH 30" - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 705-5207A-0674

SPIRAL ASM-LH 30" - YARDMAN YELLOW (0674)

$

$

Not available

$187.99

$

Usually ships in 3-6 days

0

47

MTD 684-04006

Auger Housing Assembly
(Superseded to 684-04006-0638)

Variations

Troy-Bilt 684-04006-0638

30" HOUSING ASSEMBLY (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

48

Troy-Bilt 784-5697

Slide Shoe

Variations

Troy-Bilt 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$44.99

$

In Stock, only 4 left!

0

Troy-Bilt 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$44.99

$

In Stock, Qty 7

0

Troy-Bilt 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$44.99

$

In Stock, only 4 left!

0

Troy-Bilt 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$44.99

$

In Stock, only 4 left!

0

Troy-Bilt 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$44.99

$

In Stock, only 4 left!

0

Troy-Bilt 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$44.99

$

In Stock, only 4 left!

0

Troy-Bilt 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$44.99

$

In Stock, only 4 left!

0

Troy-Bilt 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$44.99

$

In Stock, only 4 left!

0

$45.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 738-0491

Spiral Axle

$

$

Not available

51

Troy-Bilt 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 784-0315

Bearing Housing
(Superseded to 784-0315A-0637)

Variations

Troy-Bilt 784-0315-0637

Housing Bearing - POWDER BLACK (0637)

$

$

Not available

$

$

53

Troy-Bilt 784-5715A

Shave Plate
(Superseded to 784-5715B-0637)

Variations

Troy-Bilt 784-5715A-0637

Shave Plate, 30" - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 710-0389

Carriage Screw

$4.49

$

In Stock, Qty 10

0

55

Troy-Bilt 710-3168

Carriage Bolt

$3.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

57

Troy-Bilt 710-1260A

Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 712-0717

Insert Nut, 3/8-16

$8.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 731-2643

Chute Clean-out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 16

0

60

Troy-Bilt 731-2635

Mount, Chute Clean-out Tool
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 20+

0
