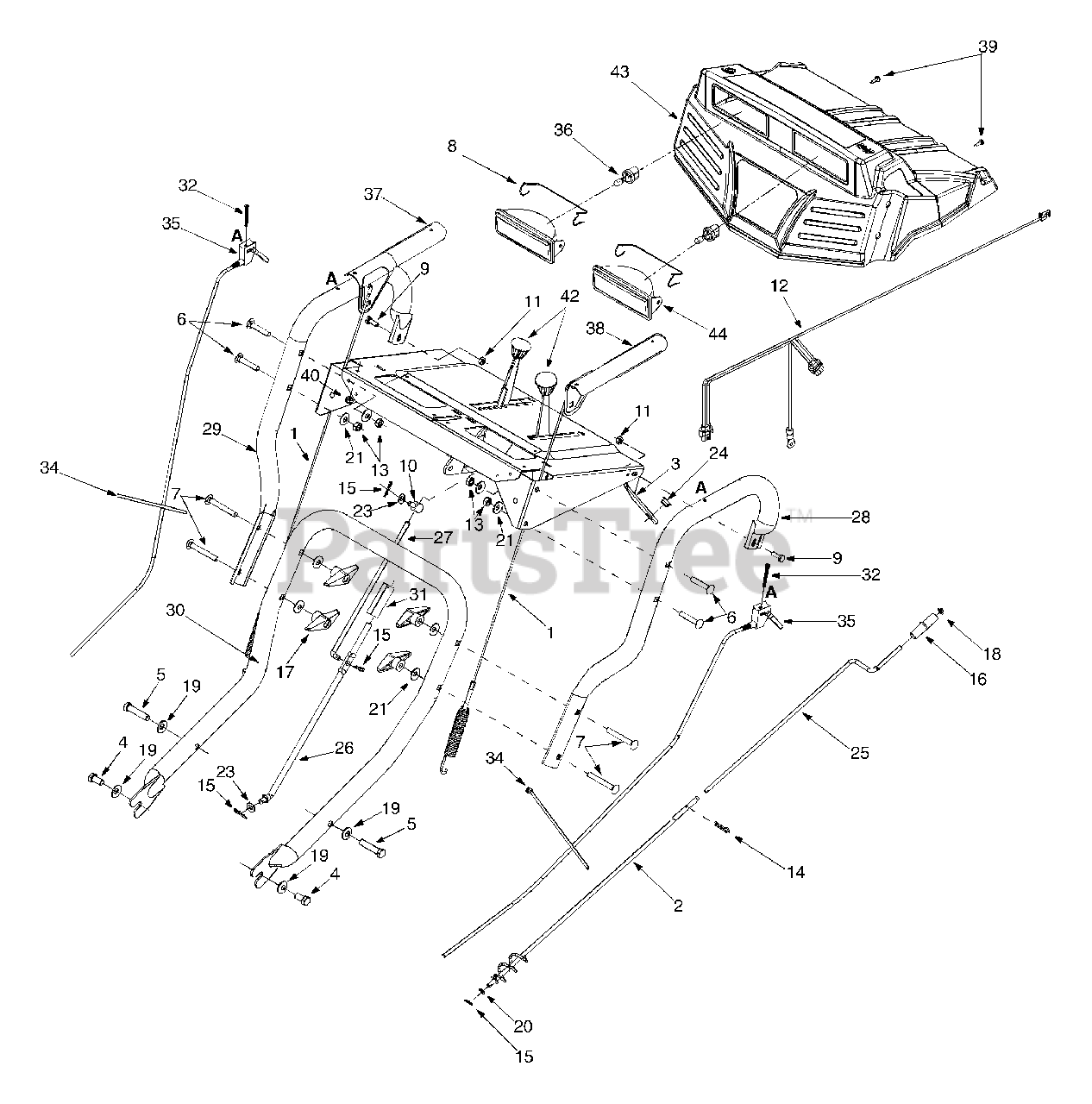

10530 (31AH9M75766) - Troy-Bilt Polar Blast 30" Snow Thrower (2005) Handle Parts Diagram

Polar Blast 30" Snow Thrower

Handle Parts Diagram

  • Title
1

Troy-Bilt 646-0012

Auger/Drive Cable Assembly

$36.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 684-0053B

Lower Chute Directional Control
(Superseded to 684-0053B-0637)

Variations

Troy-Bilt 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

3

Troy-Bilt 705-5266

Split Chute Directional Control Brkt.
(Superseded to 705-5266-0637)

Variations

Troy-Bilt 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-1879

Hex Screw, 3/8-16 x.88"

$6.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-1878

Hex Screw, 3/8-16 x 1.75"
(Superseded to 710-04682)

$5.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0458

Carriage Bolt 5/16-18 x 1.75"

$4.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 710-0572

Carriage Bolt 5/16-18 x 2.5"

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 747-1136

Lamp Retainer

$11.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0597

Hex Screw 1/4-20 x 1.00"

$3.99

$

In Stock, Qty 14

0

10

Troy-Bilt 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 629-04010

Lamp Wire Harness
(Superseded to 629-04010A)

$

$

Not available

13

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 720-0201A

Chute Directional Control Knob

$10.99

$

In Stock, Qty 5

0

$6.99

$

In Stock, Qty 9

0

18

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 747-0624

Chute Directional Control
(Superseded to 747-0624-0637)

Variations

Troy-Bilt 747-0624-0637

Crank Chute - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 747-0983A

Lower Shift Rod

$45.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 747-0997

Upper Shift Rod

$69.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 749-0989A

Upper Handle LH

Variations

Troy-Bilt 749-0989A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0989A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0989A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0989A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0989A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 749-0990A

Upper Handle RH

Variations

Troy-Bilt 749-0990A-0637

HANDLE-UPPER RT - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0990A-0638

HANDLE-UPPER RT - MTD/TROY-BILT RED (0638)

$94.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0990A-0650

HANDLE-UPPER RT - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0990A-0665

HANDLE-UPPER RT - YARDMAN GREEN (0665)

$76.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0990A-0691

HANDLE-UPPER RT - BLACK JACK (0691)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 749-0991

Lower Handle

Variations

Troy-Bilt 749-0991-0637

Lower Handle - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0991-0638

HANDLE-LOWER - MTD/TROY-BILT RED (0638)

$68.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0991-0650

HANDLE-LOWER - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0991-0665

HANDLE-LOWER - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0991-0691

HANDLE-LOWER - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0991-4033

HANDLE-LOWER - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 750-0963

Shift Rod Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

32

Troy-Bilt 710-1625

Oval C-Sunk Screw

$6.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 746-0950A

Trigger Control

$22.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 725-1658

Halogen Lamp
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

37

Troy-Bilt 705-5218

Handle Engagement RH

$37.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 705-5219

Handle Engagement LH

$37.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 710-1003

Special B Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 712-0271

Hex Sems Nut

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

43

Troy-Bilt 731-04069

Handle Panel

$70.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 725-1672

Lens Assembly
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0
