10528 PC (31AH6ZK4597) - Columbia 28" Snow Thrower (2008) Auger & Auger Housing Parts Diagram

28" Snow Thrower

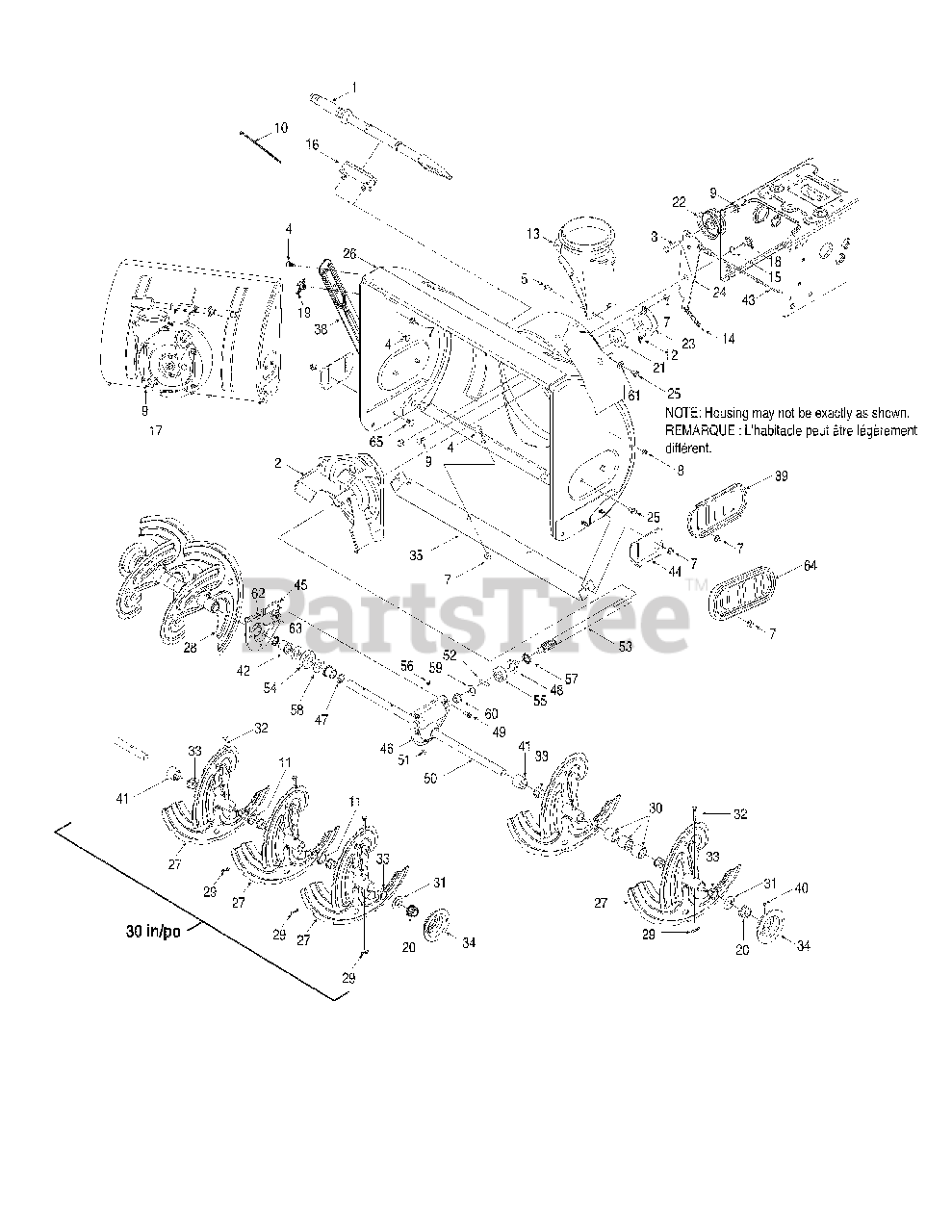

Auger & Auger Housing Parts Diagram

  • Title

1

White Outdoor 731-2643

Clean-Out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 11

0

2

White Outdoor 684-04057A

Impeller Ass'y 12 po
(Superseded to 684-04057C-0637)

Variations

White Outdoor 684-04057A-0637

Impeller, 3-Blade 12" - POWDER BLACK (0637)

$73.99

$

In Stock, Qty 20+

0

$73.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0703

Carriage Screw 1/4-20 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-04065

Hex L-Flanged Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 725-0157

Ca ble Tie

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 731-04871

Spacer 1.25 x .75 x 3/16" Lg.

$6.99

$

In Stock, Qty 20+

0

12

White Outdoor 726-04012

Push-on Nut .25 dia.

$7.49

$

In Stock, Qty 8

0

13

White Outdoor 731-04705

Chute Adapter
(Superseded to 731-04705D)

$26.99

$

In Stock, Qty 12

0

14

White Outdoor 732-04460

Extension Spring .38 OD x 4.59" Lg.

$5.49

$

In Stock, Qty 20+

0

15

White Outdoor 736-0174

Wave Washer .660 ID x .88 OD x .010

$6.99

$

In Stock, Qty 8

0

16

White Outdoor 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 18

0

17

White Outdoor 738-0143

Shld. Scr. .500 Dia. x .335" Lg.

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 738-0281

Shoulder Scr .625 Dia x .170

$10.99

$

In Stock, only 2 left!

0

19

White Outdoor 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

20

White Outdoor 741-0245

Hex. Flange Brg. .751" I.D.
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

21

White Outdoor 741-0309

Self-aligning bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

22

White Outdoor 756-0981B

Flat Idler Pulley 2.75" OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

23

White Outdoor 790-00075

Bearing Housing 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 10

0

24

White Outdoor 790-00080A

Auger Idler Brake Bracket
(Superseded to 790-00080D)

Variations

Cub Cadet 790-00080C-0637

Auger Idler Bracket - POWDER BLACK

$28.99

$

In Stock, Qty 7

0

$28.99

$

In Stock, Qty 7

0

25

White Outdoor 710-04484

Hex TT Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

26

711-04071

Auger Axle Assembly, Auger, 26"

$

$

Not available

26

711-04272

Auger Axle Assembly, Auger, 28"

$

$

Not available

27

White Outdoor 684-04107

Spiral Ass'y LH
(Superseded to 684-04107A)

Variations

White Outdoor 684-04107-0637

Auger Spiral Assembly, LH - POWDER BLACK (0637)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-0638

Auger Spiral Assembly, LH - MTD/TROY-BILT RED (0638)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-0499

Auger Spiral Assembly, LH - CUB BEIGE (0499)

$87.99

$

In Stock, Qty 6

0

White Outdoor 684-04107-0662

Auger Spiral Assembly, LH - OYSTER GRAY (0662)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-0731

Auger Spiral Assembly, LH - YELLOW JACKET (0731)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-4028

Auger Spiral Assembly, LH - SEARS YELLOW (4028)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-0606

Auger Spiral Assembly, LH - MAJESTIC ORANGE (0606)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-0629

AUGER ASSY-LH - SILVER FLAKE (0629)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-0650

AUGER ASSY-LH - RED METALLIC (0650)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-0674

AUGER ASSEMBLY LH YELLOW - YARDMAN YELLOW (0674)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-0689

AUGER ASSY-LH - POLO GREEN (0689)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-0709

AUGER ASSY-LH - MASTERCRAFT GREEN (0709)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-0716

AUGER ASSY-LH - CUB YELLOW-99 (0716)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-0717

AUGER ASSY-LH - SILVER MIST (0717)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-4021

AUGER ASSY-LH - CUB YELLOW 2 (4021)

$89.99

$

In Stock, Qty 20+

0

White Outdoor 684-04107-4033

AUGER ASSY-LH - FLINT MICA (4033)

$87.99

$

Usually ships in 3-6 days

0

$72.99

$

Usually ships in 3-6 days

0

28

White Outdoor 684-04108

Spiral Ass'y RH
(Superseded to 684-04108A)

Variations

White Outdoor 684-04108-0637

Auger Spiral Assembly, RH - POWDER BLACK (0637)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-0638

Auger Spiral Assembly, RH - MTD/TROY-BILT RED (0638)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-0499

AUGER ASSY-RH - CUB BEIGE (0499)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-4028

Auger Assembly, 21" RH - SEARS YELLOW (4028)

$92.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04108-0606

Auger Spiral Assembly, RH - MAJESTIC ORANGE (0606)

$92.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04108-0629

AUGER ASSY-RH - SILVER FLAKE (0629)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-0650

AUGER ASSY-RH - RED METALLIC (0650)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-0662

AUGER ASSEMBLY RH OYSTER GREY - OYSTER GRAY (0662)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-0674

AUGER ASSY-RH - YARDMAN YELLOW (0674)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-0709

AUGER ASSY-RH - MASTERCRAFT GREEN (0709)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-0716

AUGER ASSY-RH - CUB YELLOW-99 (0716)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-0717

AUGER ASSY-RH - SILVER MIST (0717)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-0731

AUGER ASSY-RH - YELLOW JACKET (0731)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-4021

AUGER ASSY-RH - CUB YELLOW 2 (4021)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-4033

AUGER ASSY-RH - FLINT MICA (4033)

$94.99

$

In Stock, Qty 10

0

White Outdoor 684-04108-4041

AUGER ASSY-RH - PURE ORANGE (4041)

$94.99

$

In Stock, Qty 10

0

$76.99

$

Usually ships in 3-6 days

0

29

White Outdoor 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

30

White Outdoor 731-04870

Spacers

Note: see footnote

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 736-0188

Flat Washer .760 ID x 1.49 OD

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 738-04124A

Shear Pin .25 x 1.5 Gr. 2

$1.99

$

In Stock, Qty 20+

0

33

White Outdoor 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 790-00087A

Bushing Housing

Variations

White Outdoor 790-00087A-0637

Bearing Housing, 1" - POWDER BLACK

$22.99

$

In Stock, Qty 5

0

White Outdoor 790-00087A-0638

Bearing Housing, 1" - MTD/TROY-BILT RED

$22.99

$

In Stock, Qty 5

0

$21.99

$

Usually ships in 3-6 days

0

34

White Outdoor 790-00138A

Bushing Housing (w/grease fitting hole)
(Superseded to 790-00138A-0637)

Variations

White Outdoor 790-00138A-0637

Bearing Housing, 1" Hex - POWDER BLACK

$

$

Not available

$

$

35

White Outdoor 790-00121

Shave Plate, 26"

Variations

White Outdoor 790-00121-0637

Shave Plate, 26" Powder Black - POWDER BLACK

$36.99

$

In Stock, Qty 20+

0

White Outdoor 790-00121-0638

Shave Plate, 26" Red - MTD/TROY-BILT RED

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 790-00121-4044

Shave Plate, 26" - CRAFTSMAN RED

$36.99

$

In Stock, Qty 20+

0

White Outdoor 790-00121-4044

Shave Plate, 26" - CRAFTSMAN RED

$36.99

$

In Stock, Qty 20+

0

White Outdoor 790-00121-4021

Shave Plate, 26" - CUB YELLOW 2

$36.99

$

In Stock, Qty 20+

0

White Outdoor 790-00121-0606

Shave Plate, 26" - MAJESTIC ORANGE

$36.99

$

In Stock, Qty 20+

0

White Outdoor 790-00121-0689

PLATE-SHAVE 26" - POLO GREEN

$36.99

$

In Stock, Qty 20+

0

White Outdoor 790-00121-0691

Shave Plate, 26" - BLACK JACK

$36.99

$

In Stock, Qty 20+

0

White Outdoor 790-00121-0709

Shave Plate, 26" - MASTERCRAFT GREEN

$36.99

$

In Stock, Qty 20+

0

White Outdoor 790-00121-0650

PLATE-SHAVE 26" - RED METALLIC

$36.99

$

In Stock, Qty 20+

0

White Outdoor 790-00121-0662

Shave Plate, 26" - OYSTER GRAY

$36.99

$

In Stock, Qty 20+

0

White Outdoor 790-00121-4033

Shave Plate, 26" - FLINT MICA

$36.99

$

In Stock, Qty 20+

0

White Outdoor 790-00121-4041

PLATE-SHAVE 26" - PURE ORANGE

$36.99

$

In Stock, Qty 20+

0

$30.99

$

Usually ships in 3-6 days

0

35

White Outdoor 790-00118

Shave Plate, 28"

Variations

White Outdoor 790-00118-0637

Shave Plate, 28" Powder Black - POWDER BLACK

$37.99

$

In Stock, Qty 20+

0

White Outdoor 790-00118-0606

Shave Plate, 28" - MAJESTIC ORANGE

$37.99

$

In Stock, Qty 20+

0

White Outdoor 790-00118-0638

Shave Plate, 28" Red - MTD/TROY-BILT RED

$37.99

$

In Stock, Qty 20+

0

Cub Cadet 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$37.99

$

In Stock, Qty 20+

0

White Outdoor 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$37.99

$

In Stock, Qty 20+

0

White Outdoor 790-00118-4021

Shave Plate, 28" - CUB YELLOW 2

$37.99

$

In Stock, Qty 20+

0

White Outdoor 790-00118-0691

Shave Plate, 28" - BLACK JACK

$37.99

$

In Stock, Qty 20+

0

White Outdoor 790-00118-0650

PLATE-SHAVE 28" - RED METALLIC

$37.99

$

In Stock, Qty 20+

0

White Outdoor 790-00118-0665

PLATE-SHAVE 28" - YARDMAN GREEN

$37.99

$

In Stock, Qty 20+

0

White Outdoor 790-00118-0709

PLATE-SHAVE 28" - MASTERCRAFT GREEN

$37.99

$

In Stock, Qty 20+

0

White Outdoor 790-00118-0662

PLATE-SHAVE 28" - OYSTER GRAY

$37.99

$

In Stock, Qty 20+

0

$35.99

$

Usually ships in 3-6 days

0

38

White Outdoor 790-00181

Drift Cutter - Optional

Variations

White Outdoor 790-00181-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0691

BLADE-GUIDE (DRIFT - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0606

BLADE-GUIDE (DRIFT - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0650

BLADE-GUIDE (DRIFT - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0689

BLADE-GUIDE (DRIFT - POLO GREEN (0689)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0709

BLADE-GUIDE (DRIFT - MASTERCRAFT GREEN (0709)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0721

BLADE-GUIDE (DRIFT - SEARS RED (0721)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-4021

BLADE-GUIDE (DRIFT - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-4044

BLADE-GUIDE (DRIFT - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

39

White Outdoor 790-00091

Reversible Slide Shoe (steel)

Variations

White Outdoor 790-00091-0638

Snow Slide Shoe, Red - MTD/TROY-BILT RED

$30.99

$

In Stock, Qty 11

0

White Outdoor 790-00091-0637

Snow Slide Shoe, Black - POWDER BLACK

$30.99

$

In Stock, Qty 11

0

White Outdoor 790-00091-0606

Snow Slide Shoe, Orange - MAJESTIC ORANGE

$27.99

$

In Stock, Qty 16

0

White Outdoor 790-00091-4033

Snow Slide Shoe, Flint - FLINT MICA

$30.99

$

In Stock, Qty 11

0

White Outdoor 790-00091-0691

Snow Slide Shoe, Black - BLACK JACK

$30.99

$

In Stock, Qty 11

0

White Outdoor 790-00091-0650

SLIDE SHOE - RED METALLIC

$30.99

$

In Stock, Qty 11

0

White Outdoor 790-00091-4021

Snow Slide Shoe, Yellow - CUB YELLOW 2

$28.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00091-0662

Snow Slide Shoe, Gray - OYSTER GRAY

$28.99

$

In Stock, only 1 left!

0

White Outdoor 790-00091-0709

Snow Slide Shoe, Dark Green - MASTERCRAFT GREEN

$28.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00091-0667

SLIDE SHOE - MIDNIGHT BLUE

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

40

White Outdoor 737-3000

Grease Fitting (optional)
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

41

White Outdoor 731-04870

Spacer 1.25 x .75 x 1.00

$4.99

$

In Stock, Qty 20+

0

42

White Outdoor 741-0661A

Flange Bearing.75 ID x 1.0 OD x .975
(Superseded to 741-0661B)

$10.99

$

In Stock, Qty 10

0

43

White Outdoor 746-04230

Auger Clutch Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

44

White Outdoor 784-5580

Slide Shoe

Variations

White Outdoor 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 16

0

White Outdoor 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 16

0

White Outdoor 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

White Outdoor 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

45

White Outdoor 719-04291

RH Reduced Auger Housing
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 11

0

46

White Outdoor 719-04292

LH Reduced Auger Housing
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 10

0

47

White Outdoor 721-0338

Oil Seal .75 x 1.0 x .125
(Superseded to 921-0338)

$7.49

$

In Stock, Qty 20+

0

48

White Outdoor 741-0662

Flange Bearing .75 ID x 1.00 OD x .50

$10.99

$

In Stock, Qty 16

0

49

White Outdoor 710-0642

Thd Forming Scr. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 618-04172A

Auger Gearbox Assembly, 26"
(Superseded to 918-04172C)

$434.99

$

Usually ships in 3-6 days

0

50

White Outdoor 618-04173A

Auger Gearbox Assembly, 28"
(Superseded to 918-04173B)

$331.99

$

In Stock, only 1 left!

0

51

White Outdoor 714-0161

Hi Pro Key 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 715-04021

Dowel Pin .25 OD x 1.2

$4.49

$

In Stock, Qty 12

0

53

White Outdoor 717-04126

Worm Shaft .75 OD
(Superseded to 917-04126)

$79.99

$

In Stock, Qty 7

0

54

731-04449

Worm gear , 24" & 26"

$

$

Not available

54

White Outdoor 731-0528A

Worm gear , 28" & 30"
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

55

White Outdoor 718-04071

Thrust Collar

$7.99

$

In Stock, Qty 9

0

56

White Outdoor 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 721-0327

Oil Seal .75 x 1 x .131

$6.99

$

In Stock, Qty 20+

0

58

White Outdoor 736-0351

Flat Washer .76 ID x 1.5 OD x .03

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 736-3084

Fl. Washer .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

60

White Outdoor 741-0663

Flange Bearing .75 ID x 1.0 OD x .925

$9.99

$

In Stock, Qty 20+

0

61

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

62

721-0328

Loctite Sealant 5699

$

$

Not available

63

White Outdoor 737-0168

Grease - Alvania EP Lead Free
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 13

0

64

White Outdoor 731-05984

Reversible Slide Shoe (plastic)
(Superseded to 731-05984A)

$30.99

$

In Stock, Qty 6

0

65

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75

Note: w/steel slide shoes

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.0

Note: w/plastic slide shoes

$3.99

$

In Stock, Qty 20+

0
