10528 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) RECOIL STARTER NO. 590694 (OPTIONAL) Parts Diagram

GoldPro Series Walk-Behind Mower

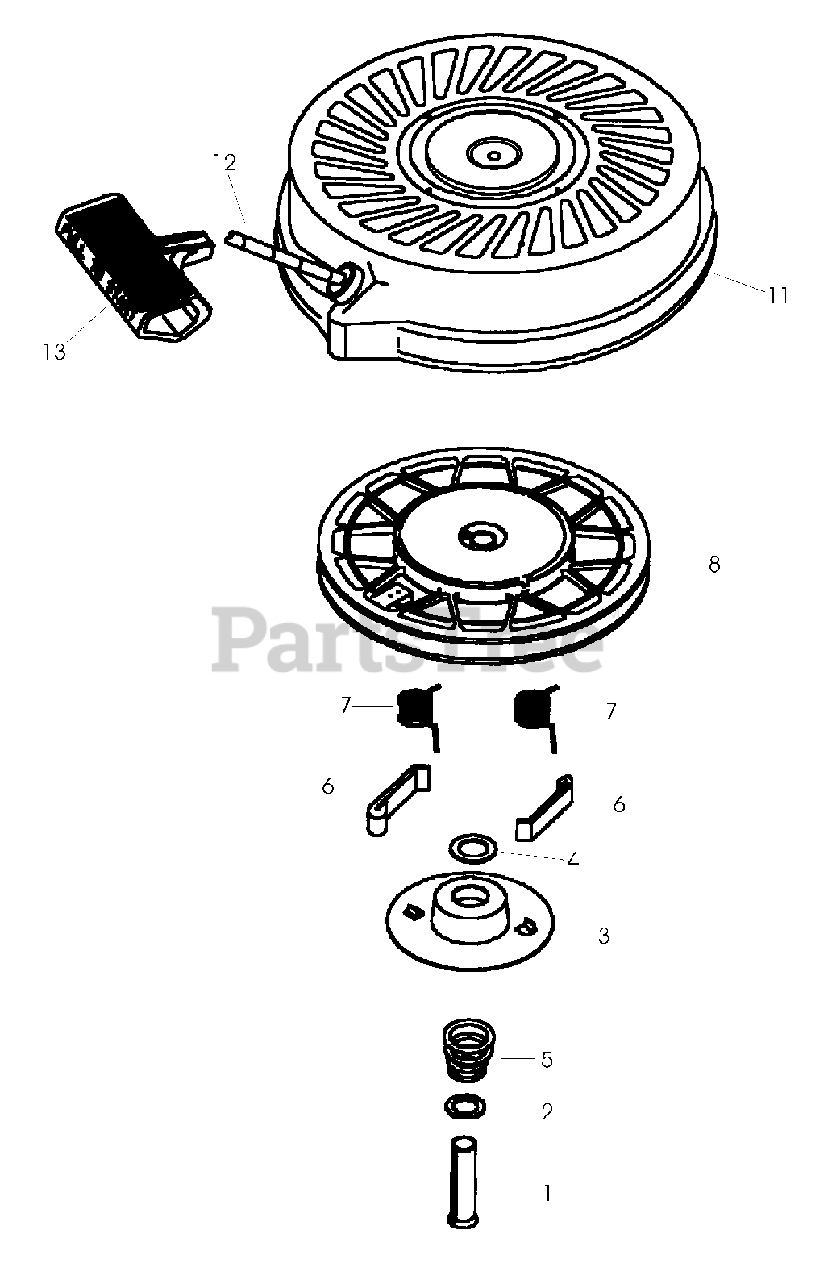

RECOIL STARTER NO. 590694 (OPTIONAL) Parts Diagram

  • Title

Lawn-Boy 590694

Recoil Starter

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

1

Lawn-Boy 590599A

Spring Pin (Incl. 4)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 590600

Washer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

3

Lawn-Boy 590696

Retainer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

4

Lawn-Boy 590601

Washer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

5

Lawn-Boy 590697

Brake Spring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 590698

Starter Dog

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 590699

Dog Spring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

8

Lawn-Boy 590700

Pulley & Rewind Spring ASM

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

11

Lawn-Boy 590695

Starter Housing ASM (40 degree grommet)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

12

Lawn-Boy 590535

Starter Rope (98" X 9/64" dia.)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

13

Lawn-Boy 590701

Starter Handle

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable
