10528 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HOUSING ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

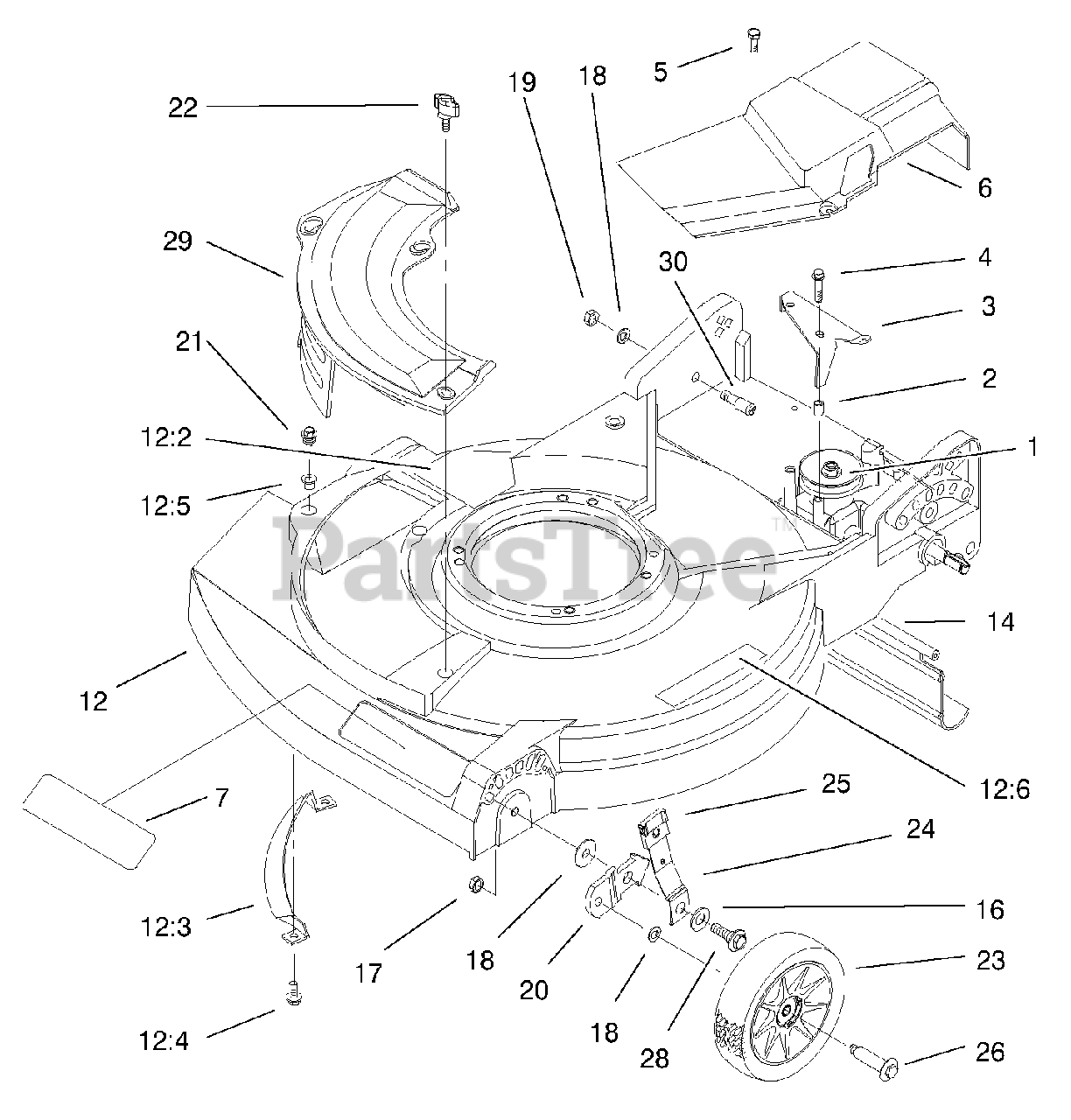

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-7869

Gear Case ASM

$

$

Not available

2

$2.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 92-7699-03

Bracket-Actuator

$12.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 32144-110

Screw-HWH

$1.49

$

In Stock, only 4 left!

0

$9.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 98-4493

Cover-Drive

$47.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 95-7421

Decal-Deck

$

$

Not available

12

Lawn-Boy 100-8760

Housing ASM

$1070.99

$

Usually ships in 3-6 days

0

12:2

Lawn-Boy 43-8480

Decal-Danger

$6.99

$

In Stock, Qty 6

0

12:3

Lawn-Boy 608175

Toe Bar

$77.99

$

Usually ships in 3-6 days

0

12:4

Lawn-Boy 46-6811

Screw-HWH

$3.49

$

In Stock, only 3 left!

0

12:5

Lawn-Boy 94-1610

Grommet-Plastic

$1.49

$

In Stock, Qty 20+

0

12:6

Lawn-Boy 93-7250

Decal-Warning

$15.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 92-7736

Shield-Trailing

$40.99

$

In Stock, only 3 left!

0

16

Lawn-Boy 3290-413

Washer-Belleville

$5.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 3296-39

Nut-Lock, NI

$2.99

$

In Stock, Qty 20+

0

18

$2.99

$

In Stock, Qty 20+

0

$2.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 95-7403-03

Bracket-Wheel Height Adjustment

$

$

Not available

21

Lawn-Boy 614677

Screw-Sems

$4.49

$

In Stock, Qty 12

0

$5.49

$

In Stock, Qty 13

0

23

Lawn-Boy 684776

Wheel & Tire ASM

$37.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 92-1006

Spring Arm ASM-Front

$12.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 92-1008

Knob-Lever, Height Adjustment

$14.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 92-1099

Bolt-Shoulder

$8.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 92-4856

Bolt-Shoulder

$76.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

30

Lawn-Boy 92-9673

Screw-Torx

$7.49

$

In Stock, only 2 left!

0

99

Lawn-Boy 614249

Tie Strap

Note: Not illustrated

$1.49

$

In Stock, only 2 left!

0

99

Lawn-Boy 95-7052

Plate-Chute Opening

Note: Not illustrated

$36.99

$

In Stock, only 3 left!

0
