10528 GC (31AH9774897) - Columbia 28" Snow Thrower (2014) Handles Parts Diagram

28" Snow Thrower

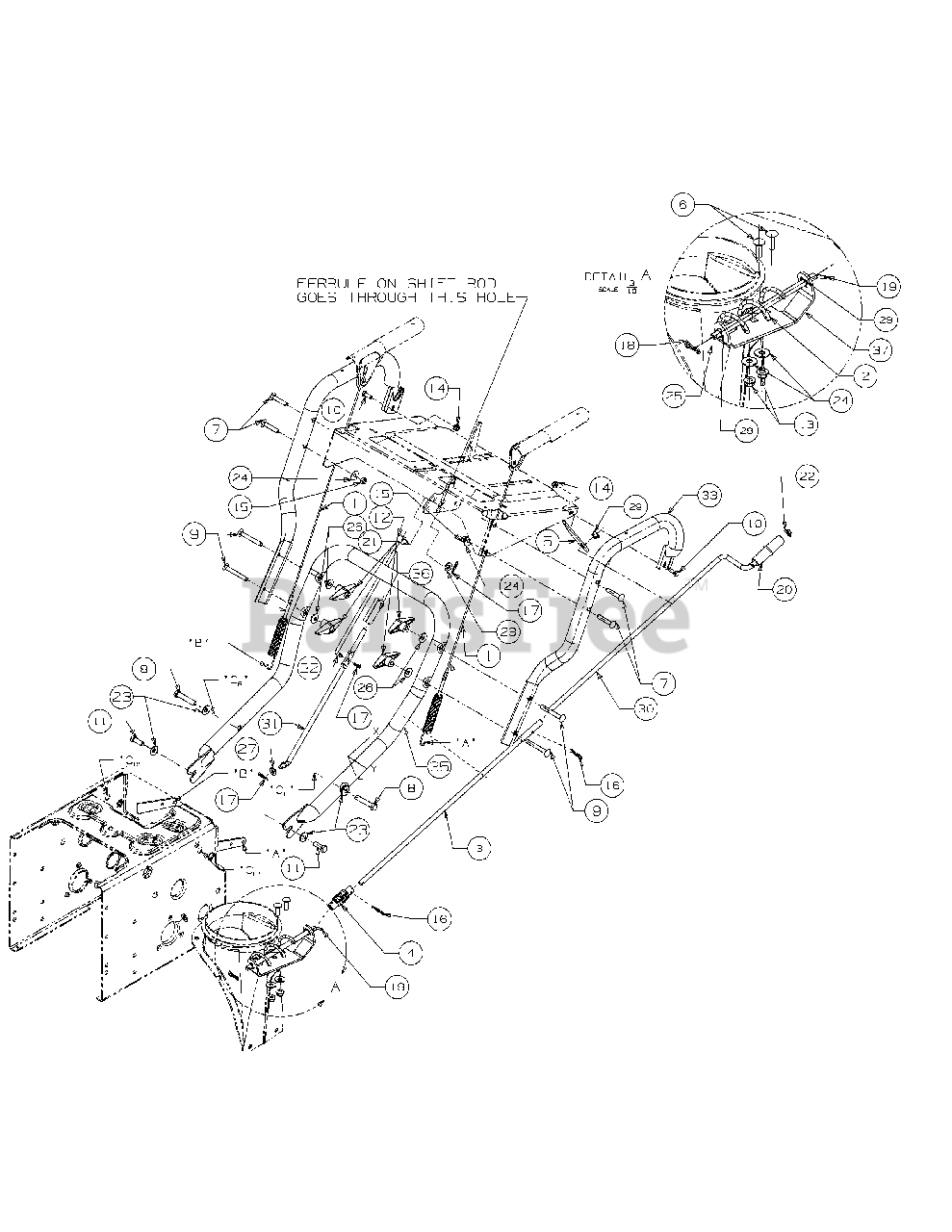

Handles Parts Diagram

  • Title

1

MTD 646-0012

Auger/Drive Engagement Cable

$36.99

$

In Stock, only 1 left!

0

2

MTD 684-04308A

Spiral-Crank Chute

$39.99

$

Usually ships in 3-6 days

0

3

MTD 684-04309A-0637

Rod Asm-Chute Cran

$59.99

$

Usually ships in 3-6 days

0

4

MTD 684-04350

Block Assy-Joint

$29.99

$

In Stock, only 4 left!

0

5

MTD 705-5266-0637

Bracket-Chu

$15.99

$

Usually ships in 3-6 days

0

6

MTD 710-0276

Carriage Bolt 5/16-18 X 1.00

$3.99

$

In Stock, Qty 14

0

7

MTD 710-0458

Bolt-Carriage 5/16

$4.49

$

In Stock, only 4 left!

0

8

MTD 710-04682

Hhcs-3/8-16:2.00

$5.99

$

Usually ships in 3-6 days

0

9

MTD 710-0572

Bolt-Carriage

$4.49

$

In Stock, only 4 left!

0

10

MTD 710-3015

Screw-Hex 1/4-20X.

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-3118

Screw-Hex Patch 3/

$5.49

$

Usually ships in 3-6 days

0

12

MTD 911-0677

Engagement Ferru

$17.99

$

In Stock, only 4 left!

0

13

MTD 712-04063

Nut-Flglk 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04064

Nut-Flglk

$3.99

$

In Stock, Qty 20+

0

15

MTD 912-3009

Nut-Hex Center L
(Superseded to 712-3009)

$

$

Not available

16

MTD 914-0101

Pin-Intern Cotter
(Superseded to 714-0101)

$

$

Not available

17

MTD 914-0104

Pin:Cotter:.072 Dia
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

18

MTD 714-04040

Pin-Cotter

$1.49

$

In Stock, Qty 20+

0

19

MTD 715-04095

Pin-Spring Roll .1

$5.49

$

In Stock, only 2 left!

0

20

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, only 4 left!

0

21

MTD 920-0284

Knob-Wing Nut
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

22

MTD 926-0100

Nut-Push
(Superseded to 726-0100)

$

$

Not available

23

MTD 736-0105

Washer-Bell .400 I

$4.49

$

In Stock, Qty 20+

0

24

MTD 936-0159

Washer-Fl
(Superseded to 736-0159)

$

$

Not available

25

MTD 936-0185

Washer-Fl
(Superseded to 736-0185)

$3.99

$

In Stock, only 3 left!

0

26

MTD 736-0242

Washer-Bell .337 X

$4.49

$

In Stock, Qty 20+

0

27

MTD 936-0275

Washer-Fl
(Superseded to 736-0275)

$

$

Not available

28

MTD 936-3008

Washer-Fl.344

$6.99

$

Usually ships in 3-6 days

0

29

MTD 941-0475

Bushing .380 Id

$4.49

$

In Stock, Qty 20+

0

30

MTD 747-0624-0637

Crank-Chute

$24.99

$

Usually ships in 3-6 days

0

31

MTD 747-0983A

Rod-Lower Shift

$45.99

$

Usually ships in 3-6 days

0

32

MTD 747-0997

Rod-Upper Shift 5/

$69.99

$

Usually ships in 3-6 days

0

33

MTD 749-0989A-0637

Handle-Upper LH

$91.99

$

Usually ships in 3-6 days

0

33

MTD 749-0990A-0637

Handle-Upper RH

$94.99

$

Usually ships in 3-6 days

0

35

MTD 749-0991-0637

Handle-Lower

$79.99

$

Usually ships in 3-6 days

0

36

MTD 950-0963

Rod-Clutch Lock

$34.99

$

In Stock, only 3 left!

0

37

MTD 790-00329-0637

Bracket-Chute Crank

$16.99

$

Usually ships in 3-6 days

0
