10527 SBE (961930016-05) - Husqvarna 27" Snow Blower (2008-01) Wheels / Decals Parts Diagram

27" Snow Blower

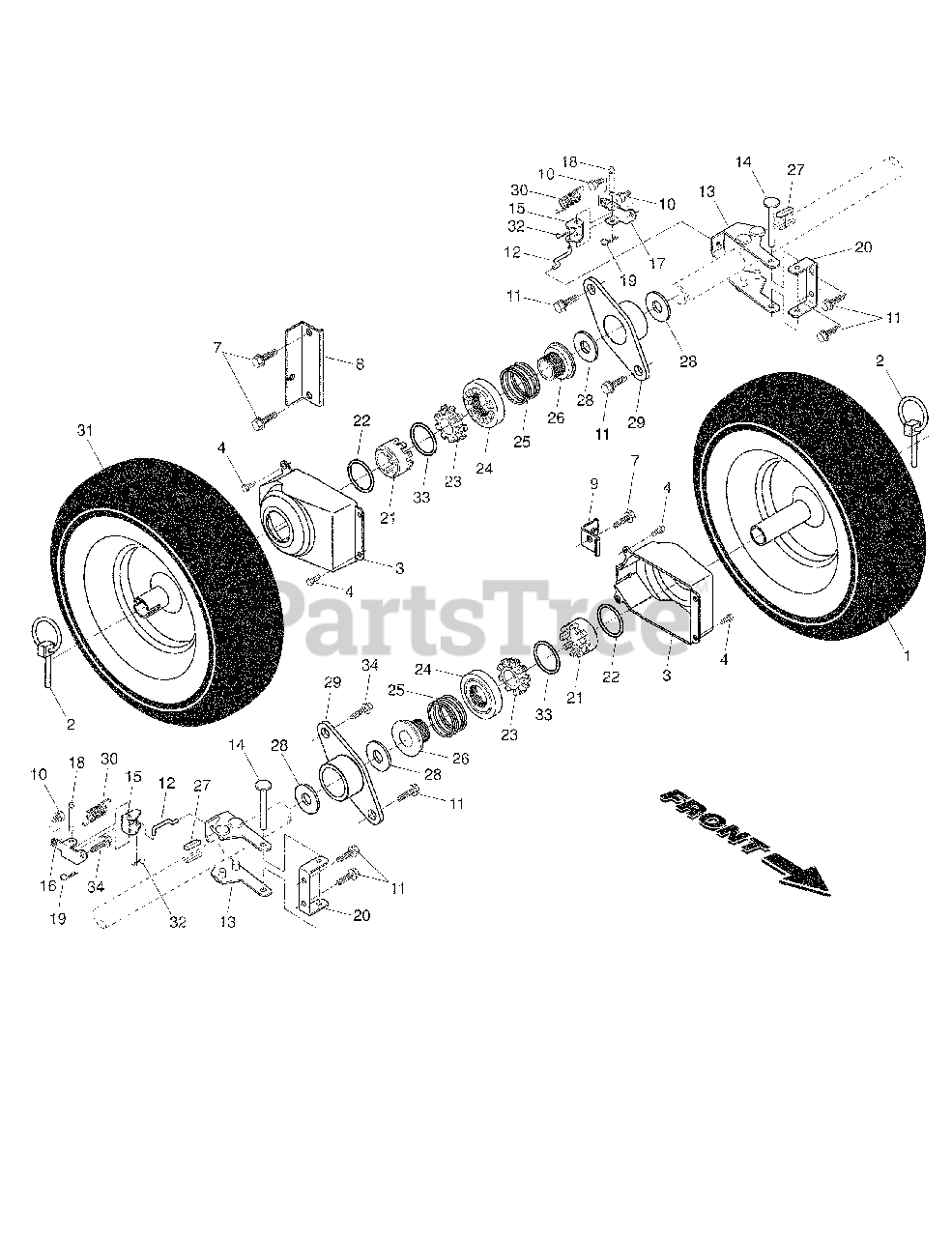

Wheels / Decals Parts Diagram

  • Title

1

Husqvarna 532199501

Wheel Assembly, 16", Power Steering, LH
(Superseded to 532439408)

$

$

Not available

2

Husqvarna 532155443

Pin, Klik 1/4

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532405161

Cover, Power Steering

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 532184471

Bolt, Shoulder #10-24 x 5/8

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 817490508

Capscrew, Hex Head, Flanged 3/8-16 x 1
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532187859

Bracket, Steering Cable, RH
(Superseded to 532185603)

$12.99

$

In Stock, only 1 left!

0

9

Husqvarna 532187858

Bracket, Steering Cable, LH
(Superseded to 532415263)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 817600406

Screw, Hex Head 1/4-20 x 3/8

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405077

Link, Steering Lever

$

$

Not available

13

Husqvarna 532199519

Yoke, Steering
(Superseded to 532445266)

$21.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532182015

Pin, Steering Lever

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532199518

Bellcrank
(Superseded to 532194944)

$

$

Not available

16

Husqvarna 532199512

Bracket Assembly, LH Steering
(Superseded to 532194939)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532199511

Bracket Assembly, RH Steering
(Superseded to 532194943)

$

$

Not available

18

Husqvarna 532181847

Pin, Steering Bellcrank

$12.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532085179

Retainer, Hairpin

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532184197

Bracket, Steering

$

$

Not available

21

Husqvarna 532192126

Driver, Wheel
(Superseded to 581645001)

$31.99

$

In Stock, only 1 left!

0

22

Husqvarna 532182466

Ring, Wire Retainer

$7.49

$

In Stock, only 4 left!

0

23

Husqvarna 532187622

Lobe, Wheel

$37.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532194941

Slide, Clutch
(Superseded to 581644901)

$44.99

$

In Stock, only 2 left!

0

25

Husqvarna 532179139

Spring, Clutch Slide

$6.49

$

In Stock, Qty 8

0

26

Husqvarna 532194940

Lobe, Axle
(Superseded to 581645101)

$

$

Not available

27

Husqvarna 532189282

Key, Square

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 532174697

Washer, Thrust (1")
(Superseded to 532007396)

$

$

Not available

29

Husqvarna 532179830

Bearing, Axle

$24.99

$

In Stock, only 2 left!

0

30

Husqvarna 532193885

Spring, Return

$6.49

$

In Stock, only 1 left!

0

31

Husqvarna 532199502

Wheel Assembly, 16", Power Steering, RH
(Superseded to 532198267)

$

$

Not available

32

Husqvarna 532700279

Clip, Retainer

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 812000045

Ring, Retaining

$7.49

$

In Stock, only 4 left!

0

34

Husqvarna 532146315

Screw, Hex Head 5/16-18 x 5/8

$10.99

$

Usually ships in 3-10 days

0
