10525 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) HANDLE AND CONTROLS ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

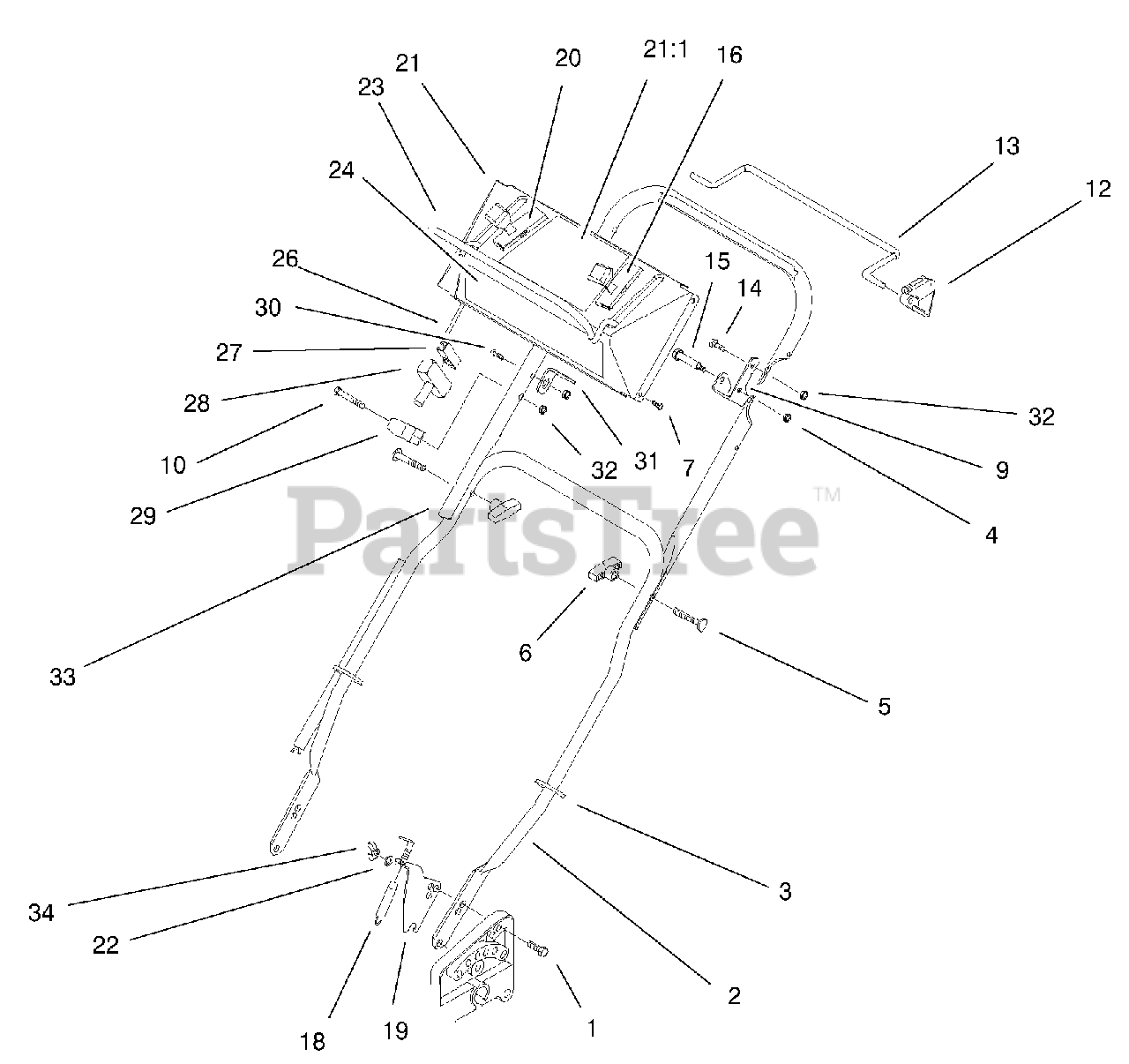

HANDLE AND CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3230-29

Bolt-CARR

$2.99

$

In Stock, Qty 12

0

2

Lawn-Boy 92-6537-05

Handle-Lower

$

$

Not available

3

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 6

0

4

Lawn-Boy 3296-56

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 13

0

$2.99

$

In Stock, Qty 15

0

$6.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-1094

Bracket-Stop, Bail

$37.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 321-51

Bolt-HH

$1.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

13

Lawn-Boy 92-1001-03

Bail-Control

$58.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 321-4

Screw-HH

$1.49

$

In Stock, Qty 20+

0

15

$

$

Not available

16

Lawn-Boy 95-7410

Control ASM-Throttle

$99.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-6518

Cable-Traction

$51.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 92-7899-03

Bracket-Traction Cable

$11.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 92-8926

Cable-Ground Speed

$95.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 99-1563

Control Panel ASM

$

$

Not available

21:1

Lawn-Boy 98-4469

Decal-Control Panel

$14.99

$

In Stock, Qty 8

0

22

Lawn-Boy 3253-33

Washer-Lock

$1.99

$

In Stock, Qty 12

0

23

Lawn-Boy 92-1093

Bail-Engine Control

$

$

Not available

24

Lawn-Boy 98-1565

Decal-Panel

$

$

Not available

26

Lawn-Boy 95-7411

Brake Cable ASM

$76.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 612824

Starter-Clip

$4.49

$

In Stock, Qty 10

0

28

Lawn-Boy 612825

Handle-Start
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

30

Lawn-Boy 92-2268

Screw-Handle

$2.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 92-2928

Bracket-Anchor, Cable

$15.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 92-1092-05

Handle-Upper

$

$

Not available

34

$5.99

$

In Stock, Qty 5

0
