10525 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) ENGINE & BLADE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

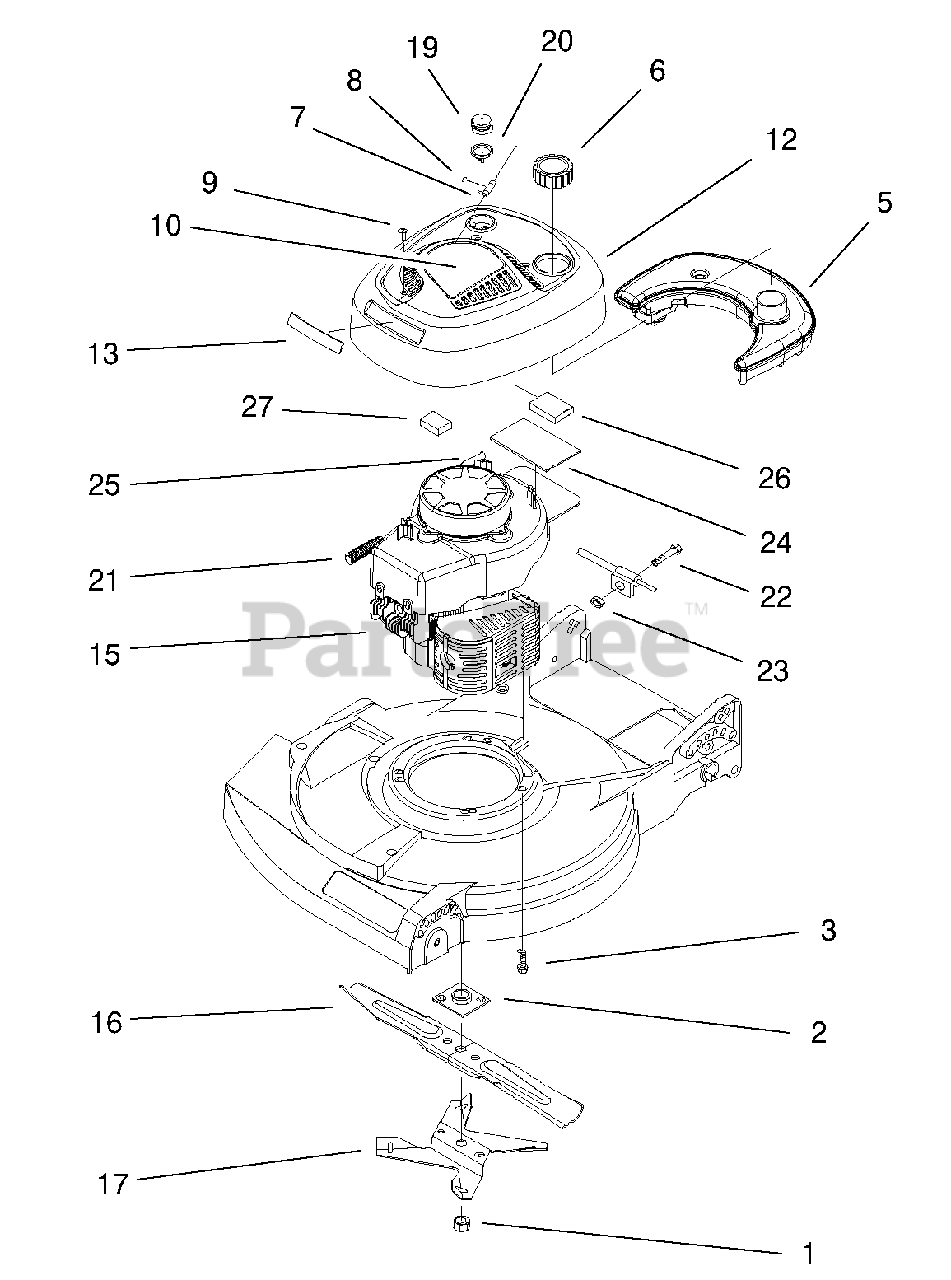

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 677525

Plate & Collar ASM

$51.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 98-4480

Screw-Sems

$3.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 95-1897

Tank

$67.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 98-8344

Cap ASM-Fuel & Oil

$24.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 47-2480

Stop-Rope

$

$

Not available

8

Staple (Obtain Locally)

$

$

Not available

9

Lawn-Boy 95-7621

Screw-Pan Sems

$1.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 95-7420

Decal-Recoil

$

$

Not available

12

Lawn-Boy 98-7032

Shroud & Recoil Cover ASM
(Superseded to 100-8750)

$

$

Not available

13

Lawn-Boy 92-8615

Applique-Shroud

$31.99

$

In Stock, only 1 left!

0

15

Engine ASM

$

$

Not available

16

Lawn-Boy 612543

Blade
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 99-6351-03

Fan-Mulching

$37.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 93-4306

Spring-Compression

$6.49

$

In Stock, only 1 left!

0

22

Lawn-Boy 314576

Screw-Throttle Cable

$1.99

$

In Stock, Qty 6

0

23

Lawn-Boy 306531

Nut-Throttle Cable
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 98-1386

Pad-Foam

$

$

Not available

25

Lawn-Boy 612782

Fuel Line

$7.49

$

In Stock, Qty 9

0

26

Lawn-Boy 99-1521

Strip-Foam

$10.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 99-1522

Strip-Foam

$2.99

$

In Stock, Qty 9

0
