10525 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) HOUSING ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

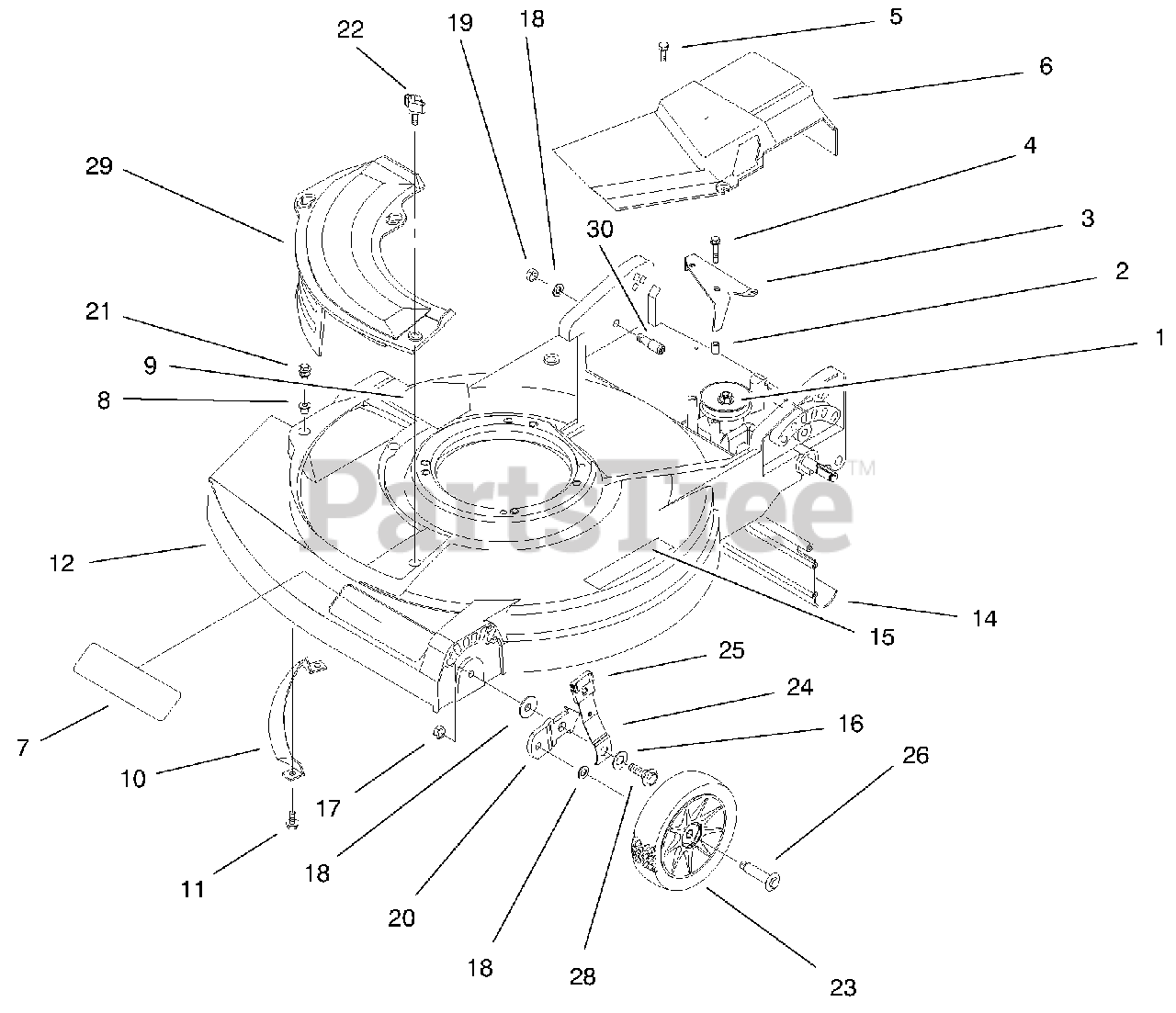

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-7869

ASM-Gear Case

$

$

Not available

2

Lawn-Boy 46-5551

Bushing-Spacer

$2.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 92-7699

Bracket-Actuator
(Superseded to 92-7699-03)

$12.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-7748

Screw
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 15

0

5

Lawn-Boy 12-5450

Screw-Thread Forming

$9.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 98-4493

Cover-Drive

$47.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 95-7421

Decal-Deck

$

$

Not available

8

Lawn-Boy 94-1610

Grommet-Plastic

$1.49

$

In Stock, Qty 9

0

9

Lawn-Boy 39-5770

Decal-Danger

$8.99

$

In Stock, Qty 8

0

10

Lawn-Boy 608175

Toe Bar 21

$77.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 46-6811

Screw-HWH

$3.49

$

In Stock, only 3 left!

0

12

$

$

Not available

14

Lawn-Boy 92-7736

Shield-Trailing

$40.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 93-7250

Decal-Warning

$15.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 3290-413

Washer-Spring

$5.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 8

0

18

$2.99

$

In Stock, Qty 18

0

19

Lawn-Boy 610358

Nut-Lock

$2.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 614637

Bracket-Wheel Height Adj
(Superseded to 95-7403-03)

$

$

Not available

21

Lawn-Boy 614677

Screw-Sems

$4.49

$

In Stock, Qty 12

0

22

Lawn-Boy 98-8332

Knob-Cover Plate

$5.49

$

In Stock, Qty 16

0

23

Lawn-Boy 684776

ASM-Wheel & Tire 6"

$37.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 92-1006

ASM-Spring Arm

$12.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 92-1008

Knob-Height Adjust

$14.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 92-1099

Bolt-Shoulder

$8.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 92-4856

Bolt-Shoulder

$76.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 92-8630

Mulch Plate-21"

$

$

Not available

30

Lawn-Boy 92-9673

Bolt-Shoulder

$7.49

$

In Stock, only 2 left!

0

32

Lawn-Boy 95-7052

Plate-Cover

Note: Not illustrated

$36.99

$

In Stock, only 1 left!

0

33

$14.99

$

In Stock, only 2 left!

0
