10524 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12V802-1742-A1 Parts Diagram

Gold Series Walk-Behind Mower

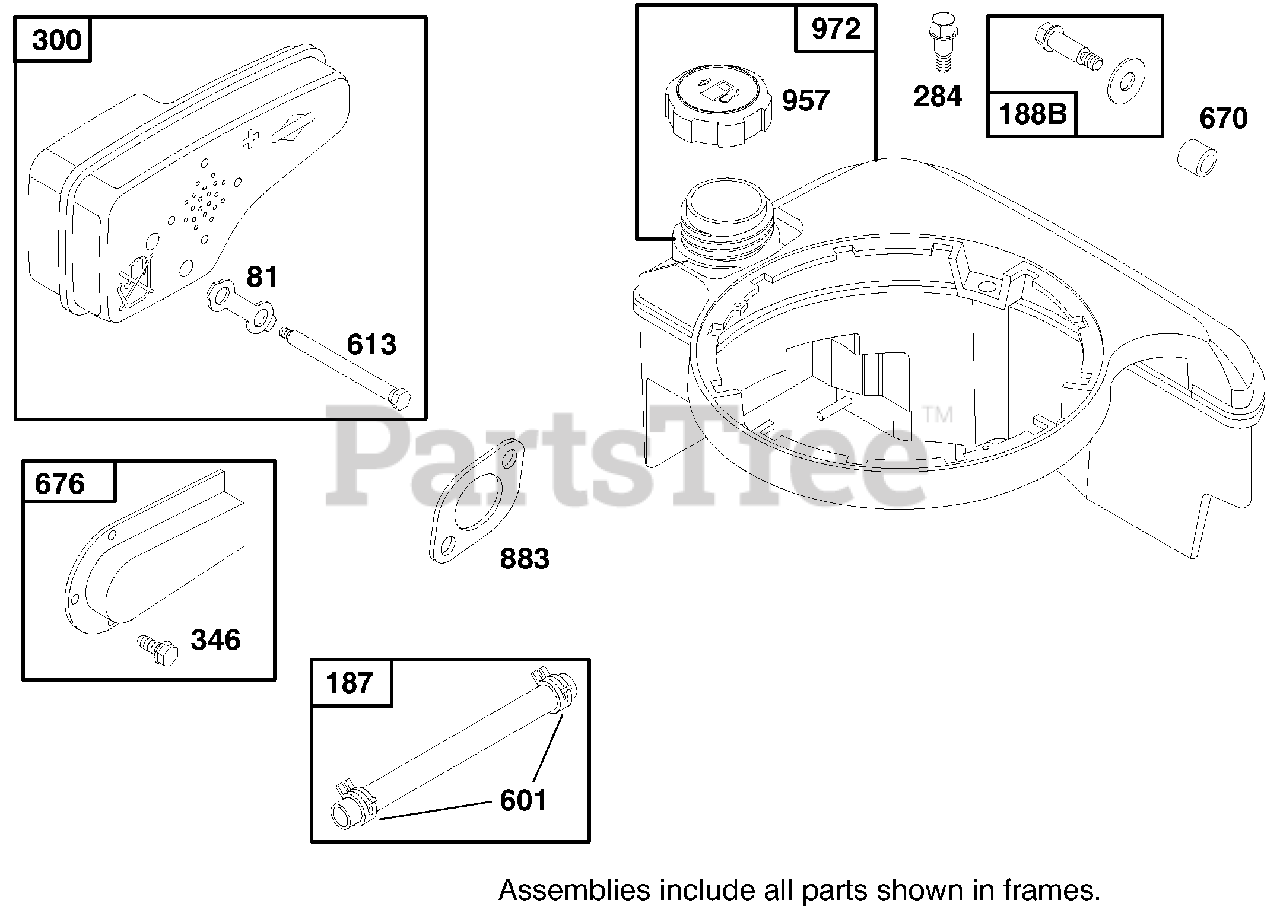

ENGINE BRIGGS & STRATTON MODEL 12V802-1742-A1 Parts Diagram

  • Title
81

Lawn-Boy 223664

Lock-Muffler Screw

$

$

Currently unavailable

187

Lawn-Boy 492790

Hose-Fuel

$

$

Currently unavailable

188B

Lawn-Boy 398540

Screw-Tank Mounting

$

$

Currently unavailable

284

Lawn-Boy 94511

Screw-Shoulder

$

$

Currently unavailable

300

Lawn-Boy 496106

Muffler-Exhaust

$

$

Currently unavailable

346

Lawn-Boy 93705

Screw-Hex. Head

$

$

Currently unavailable

601

Lawn-Boy 93053

Clamp-Hose

$

$

Currently unavailable

613

Lawn-Boy 94231

Screw-Shoulder

$

$

Currently unavailable

670

Lawn-Boy 280512

Spacer-Fuel Tank

$

$

Currently unavailable

676

Lawn-Boy 493871

Deflector-Muffler

$

$

Currently unavailable

883

Lawn-Boy 272253

Gasket-Exhaust

Note: Included in Gasket Set-Part No. 497316

$

$

Currently unavailable

957

Lawn-Boy 397974

Cap Assy.-Fuel

$

$

Currently unavailable

972

Lawn-Boy 495224

Tank Assembly-Fuel

$

$

Currently unavailable
