10524 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12V802-1742-A1 Parts Diagram

Gold Series Walk-Behind Mower

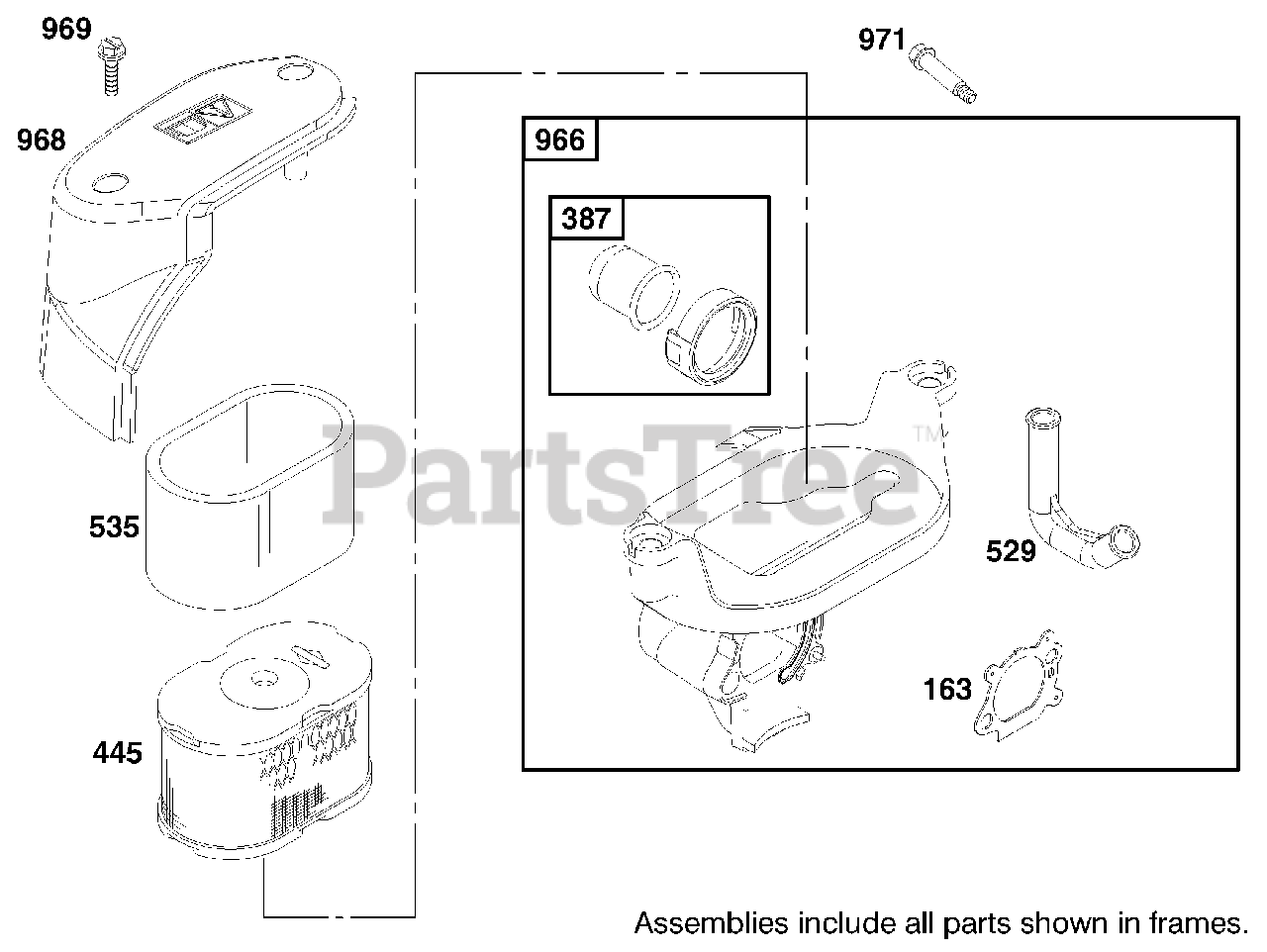

ENGINE BRIGGS & STRATTON MODEL 12V802-1742-A1 Parts Diagram

  • Title
163

Lawn-Boy 272653

Gasket-Air Cleaner

$

$

Currently unavailable

387

Lawn-Boy 496115

Primer-Carburetor

$

$

Currently unavailable

445

Lawn-Boy 497725

Filter-Air

$

$

Currently unavailable

529

Lawn-Boy 281556

Grommet-Breather

$

$

Currently unavailable

535

Lawn-Boy 273185

Filter-Air

$

$

Currently unavailable

966

Lawn-Boy 497915

Base-Air Cleaner

$

$

Currently unavailable

968

Lawn-Boy 281340

Cover-Air Cleaner

$

$

Currently unavailable

969

Lawn-Boy 94777

Screw-Cover Mtg.

$

$

Currently unavailable

971

Lawn-Boy 94655

Screw-Air Cleaner

$

$

Currently unavailable
