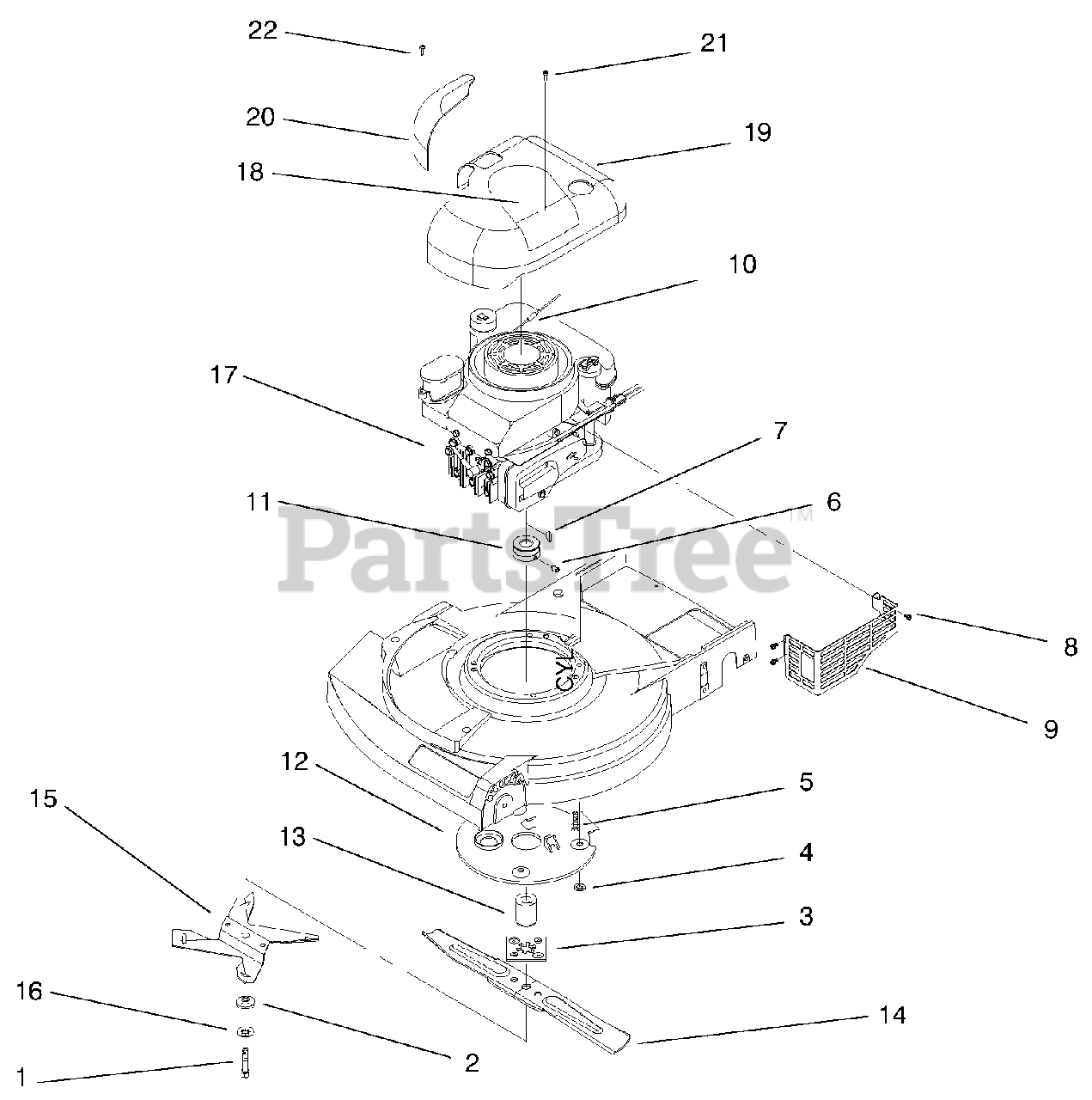

10524 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-4879

Bolt-Blade

$

$

Not available

2

Lawn-Boy 92-4857

Spacer

$6.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 146046

Plate-Blade Driver

$

$

Not available

4

Lawn-Boy 92-4877

Nut-Push
(Superseded to 107-3154)

$1.49

$

In Stock, Qty 6

0

5

Lawn-Boy 95-1727

Screw-Engine Mount

$2.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 700029

Screw-Set

$

$

Not available

7

Lawn-Boy 3257-3

Key-Woodruff

$1.49

$

In Stock, only 4 left!

0

8

Lawn-Boy 32144-73

Screw-HWHTF
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 82-8550

Shield-Muffler
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 2210-316

Rope-Stop (P/W Eng)

$7.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 92-7653

Pulley-Engine

$

$

Not available

12

Lawn-Boy 94-6065

Shield-Grass

$43.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 146044

Hub-Blade Driver

$

$

Not available

14

Lawn-Boy 612543

Blade-21" Whirl
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$37.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 605339

Washer-Lock

$

$

Not available

17

Engine-4 Cycle

$

$

Not available

18

Lawn-Boy 95-1702

Decal-Recoil

$

$

Not available

19

Lawn-Boy 95-1704

Shroud-Engine (P/W Eng)
(Superseded to 95-1704-03)

$152.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 95-1705

Cover-Air Cleaner (P/W)
(Superseded to 95-1709)

$

$

Not available

21

Lawn-Boy 95-1706

Screw-Shroud (P/W Eng)
(Superseded to 92-7887)

$

$

Not available

22

Lawn-Boy 95-1707

Screw-Air Cleaner (P/W)

$2.99

$

Usually ships in 3-6 days

0
