10522 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) ENGINE BRIGGS & STRATTON MODEL 128702-0624-01 Parts Diagram

Gold Series Walk-Behind Mower

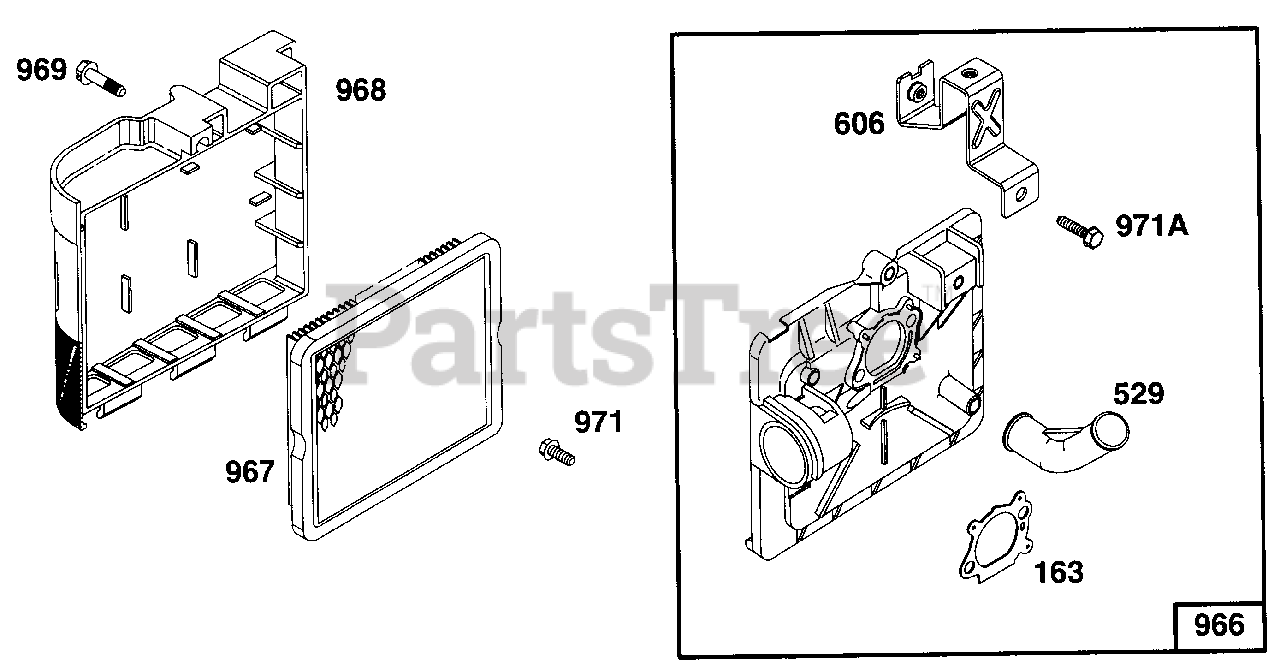

ENGINE BRIGGS & STRATTON MODEL 128702-0624-01 Parts Diagram

  • Title
163

Lawn-Boy 272653

Gasket-Air Cleaner

$

$

Currently unavailable

529

Lawn-Boy 281299

Grommet-Breather

$

$

Currently unavailable

606

Lawn-Boy 224815

Strap-Bracket

$

$

Currently unavailable

966

Lawn-Boy 496116

Base-Air Cleaner

$

$

Currently unavailable

967

Lawn-Boy 491588

Filter-Air

$

$

Currently unavailable

968

Lawn-Boy 281340

Cover Air Cleaner

$

$

Currently unavailable

969

Lawn-Boy 94120

Screw-Cover Mtg.

$

$

Currently unavailable

971

Lawn-Boy 94121

Screw-Air Cleaner

$

$

Currently unavailable

971A

Lawn-Boy 94749

Screw-Hex. Head

$

$

Currently unavailable
