10521 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) HANDLE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

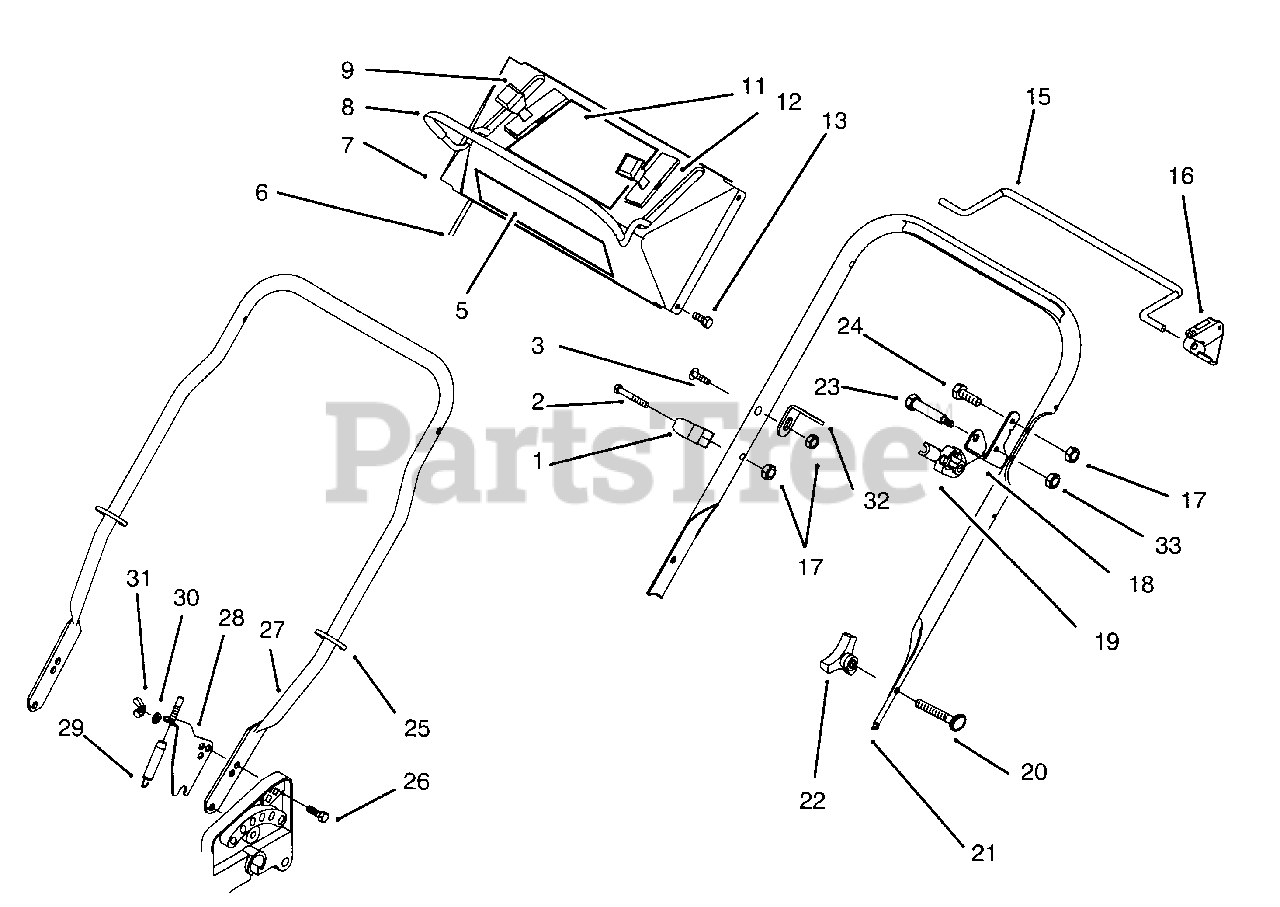

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-7720

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

2

Lawn-Boy 321-51

Bolt

$1.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 92-2268

Screw

$2.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 92-2918

Decal-Control Panel

$25.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 92-1632

Cable-Brake

$113.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 16-2039

Panel-Control (Incl. Ref. # 11) (Model No. 10416)

$

$

Not available

Lawn-Boy 16-8929

Panel-Control (Incl. Ref. # 11) (Model No. 10516 & 10521)

Note: Not Illustrated

$

$

Not available

8

Lawn-Boy 92-1093

Bail-Brake

$

$

Not available

9

Lawn-Boy 92-8926

Control Ground (Model No. 10516 & 10521)

$95.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 93-6625

Decal-Control Panel, (Model No. 10416)

$

$

Not available

Lawn-Boy 93-6624

Decal-Control Panel, (Model No. 10516 & 10521)

Note: Not Illustrated

$

$

Not available

12

Lawn-Boy 93-4148

Control-Throttle

$

$

Not available

13

Lawn-Boy 92-9665

Screw

$6.99

$

In Stock, only 4 left!

0

15

Lawn-Boy 92-1617

Bail-Control SP (Model No. 10516 & 10521)
(Superseded to 92-1001-03)

$58.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 92-5412

Stop-Pivot (Model No. 10516 & 10521)
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

17

Lawn-Boy 3296-73

Nut

$5.49

$

In Stock, only 3 left!

0

18

Lawn-Boy 92-1094

Bracket-Cam

$37.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 92-1078

Brake-BBC Cam

$52.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 13

0

21

Lawn-Boy 92-1092

Handle-Upper
(Superseded to 92-1092-05)

$

$

Not available

22

Lawn-Boy 614243

Knob-Handle
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 16

0

23

Lawn-Boy 613050

Bolt-Shoulder

$

$

Not available

24

Lawn-Boy 321-4

Screw-Hex. Hd.

$1.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 614249

Tie-Cable

$1.49

$

In Stock, Qty 6

0

26

Lawn-Boy 3230-29

Bolt-Carriage

$2.99

$

In Stock, Qty 12

0

27

Lawn-Boy 92-6537

Handle-Lower
(Superseded to 92-6537-05)

$

$

Not available

28

Lawn-Boy 92-7899

Bracket-Traction Cable (Model No. 10516 & 10521)
(Superseded to 92-7899-03)

$11.99

$

In Stock, only 1 left!

0

29

Lawn-Boy 92-6518

Cable-Traction (Model No. 10516 & 10521)

$51.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 3253-33

Washer

$1.99

$

In Stock, Qty 12

0

31

Lawn-Boy 32103-29

Nut-Wing

$5.99

$

In Stock, Qty 5

0

32

Lawn-Boy 92-2928

Bracket-Cable

$15.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 3296-56

Nut-Lock

$2.49

$

In Stock, Qty 20+

0
