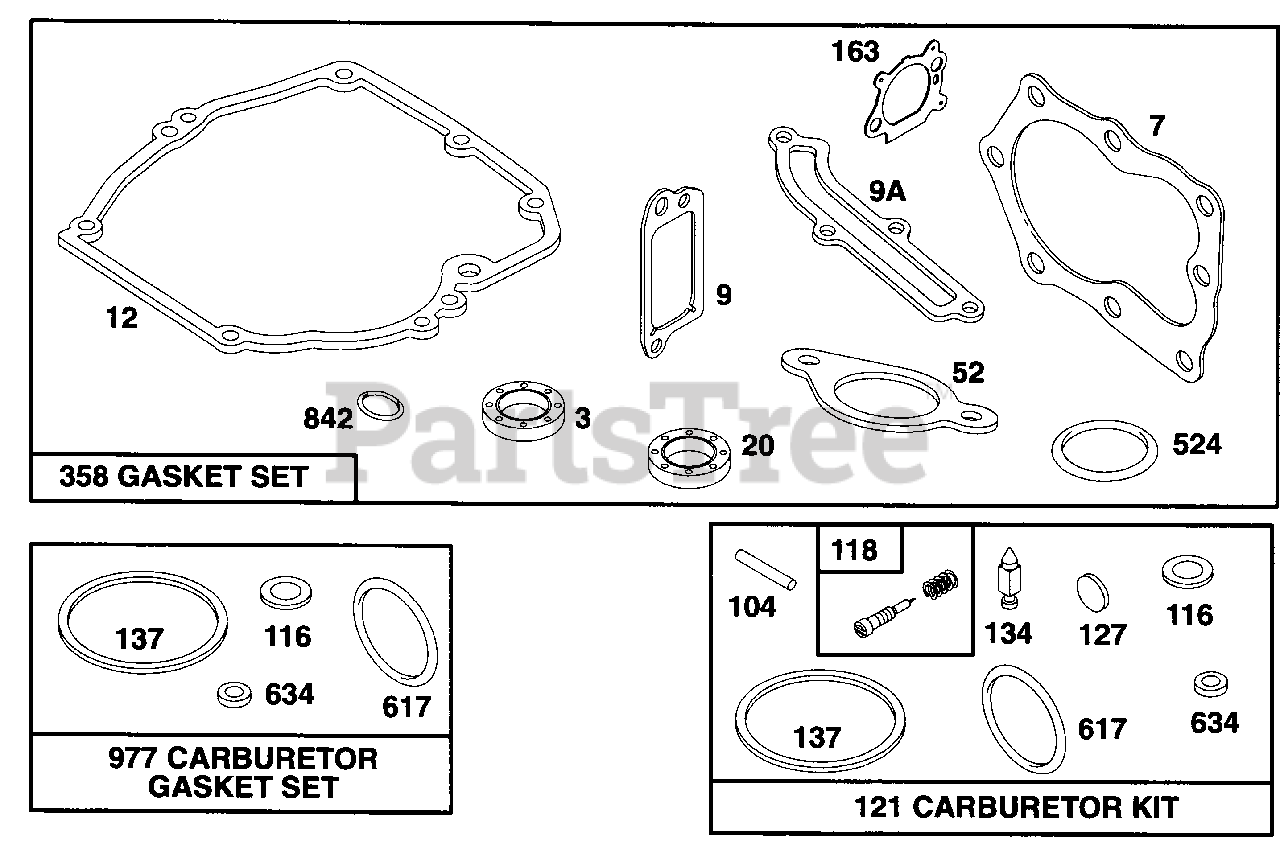

10521 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) ENGINE BRIGGS & STRATTON MODEL 124702-3257-01 Parts Diagram

Gold Series Walk-Behind Mower

ENGINE BRIGGS & STRATTON MODEL 124702-3257-01 Parts Diagram

  • Title
3

Lawn-Boy 299819

Seal-Oil

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

7

Lawn-Boy 272200

Gasket-Cylinder Hd.

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

9

Lawn-Boy 272904

Gasket-Valve Cover

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

9A

Lawn-Boy 272238

Gasket-Baffle Plate

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

12

Lawn-Boy 272198

Gasket-Crankcase

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

20

Lawn-Boy 399781

Seal-Oil

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

52

Lawn-Boy 272199

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

104

Lawn-Boy 231371

Pin-Float Hinge
(Superseded to 701979)

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

118

Lawn-Boy 493765

Valve Kit-Needle

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Currently unavailable

121

Lawn-Boy 493762

Carburetor Kit

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

134

Lawn-Boy 398188

Valve-Inlet (Includes Seat).

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

163

Lawn-Boy 272653

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

358

Lawn-Boy 496117

Gasket Set

$

$

Currently unavailable

524

Lawn-Boy 280393

Seal-Filler Tube

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-Fuel Intake Tube

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Currently unavailable

634

Washer-Shaft (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

842

Lawn-Boy 280966

Seal-O-Ring

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

977

Lawn-Boy 490937

Gasket Set-Carburetor

$

$

Currently unavailable
