10521 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) ENGINE BRIGGS & STRATTON MODEL 126702-3193-01 Parts Diagram

Gold Series Walk-Behind Mower

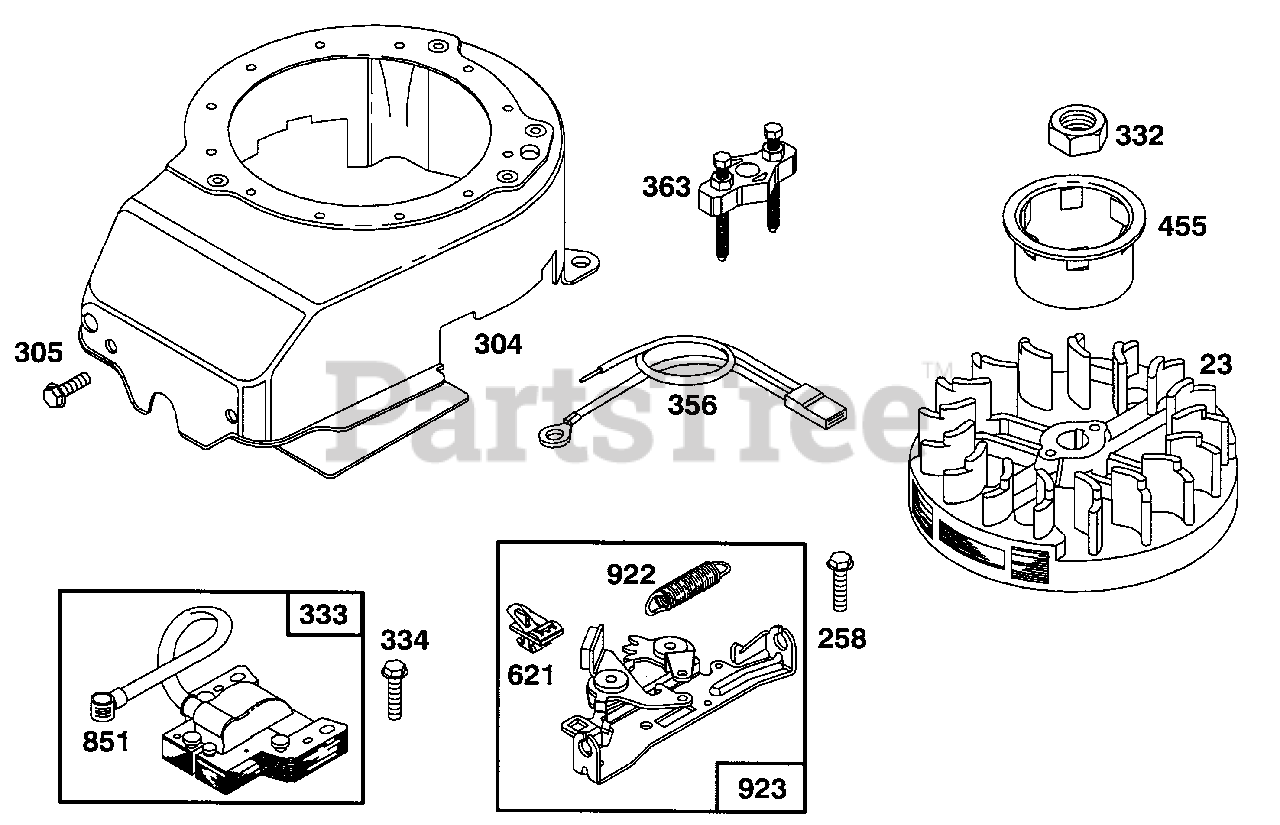

ENGINE BRIGGS & STRATTON MODEL 126702-3193-01 Parts Diagram

  • Title
23

Lawn-Boy 492177

Flywheel Magneto

$

$

Currently unavailable

258

Lawn-Boy 94512

Screw-Hex. Head

$

$

Currently unavailable

304

Lawn-Boy 493293

Housing-Blower

$

$

Currently unavailable

305

Lawn-Boy 94729

Screw-Hex. Head Sem

$

$

Currently unavailable

332

Lawn-Boy 92284

Nut-Flywheel

$

$

Currently unavailable

333

Lawn-Boy 802574

Armature-Magneto

$

$

Currently unavailable

334

Lawn-Boy 94731

Screw-Armature Mtg.

$

$

Currently unavailable

356

Lawn-Boy 398808

Wire-Ground

$

$

Currently unavailable

363

Lawn-Boy 19069

Puller-Flywheel

$

$

Currently unavailable

455

Lawn-Boy 224250

Cup-Starter

$

$

Currently unavailable

621

Lawn-Boy 396847

Switch-Stop

$

$

Currently unavailable

851

Lawn-Boy 221798

Terminal-Ignition Cable

$

$

Currently unavailable

922

Lawn-Boy 262640

Spring-Brake

$

$

Currently unavailable

923

Lawn-Boy 493442

Brake Assembly

$

$

Currently unavailable
