10517 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) ENGINE, FUEL TANK & BLADE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

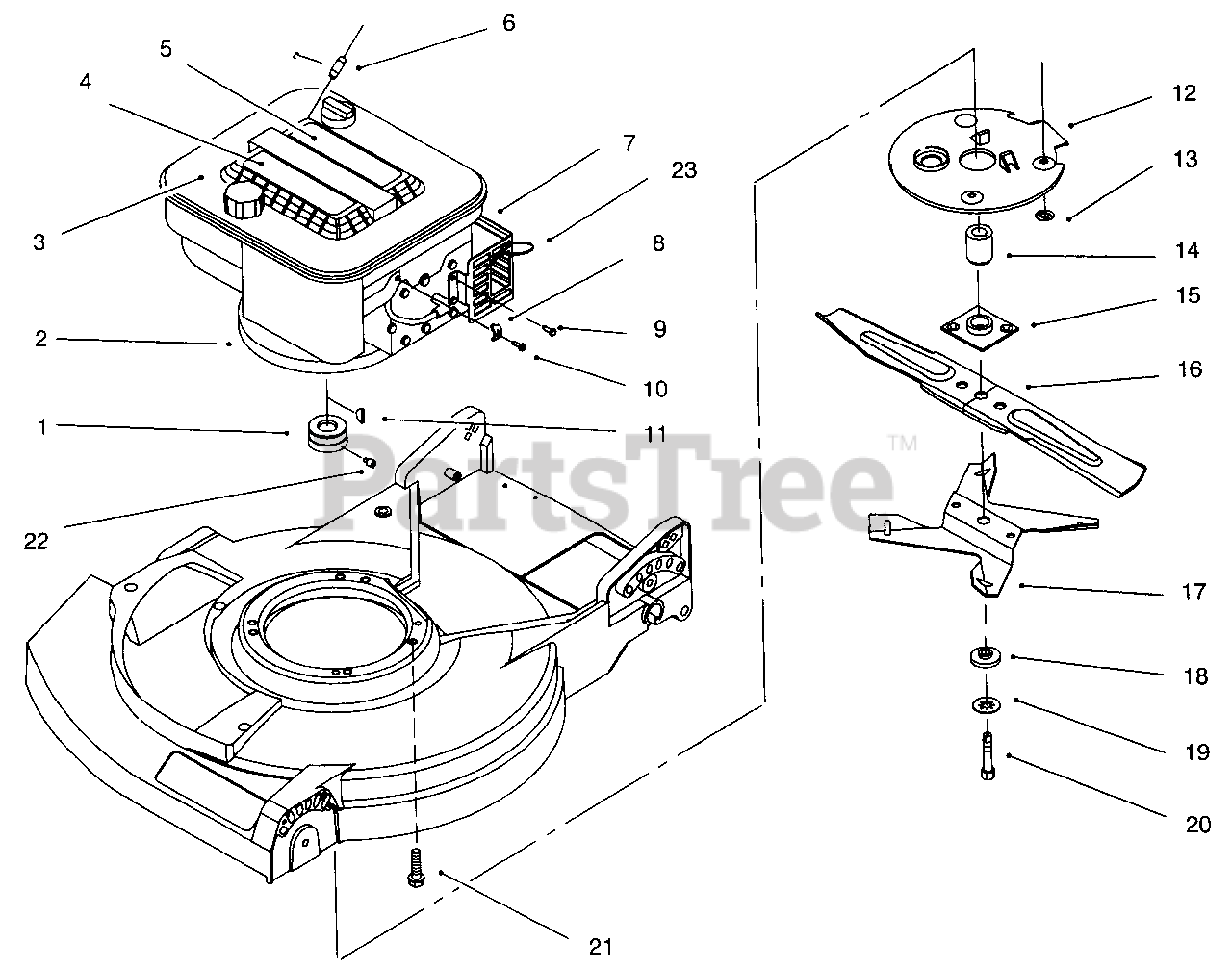

ENGINE, FUEL TANK & BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-7653

Pulley-Engine (Model No.10517 & 10522)

$

$

Not available

2

Engine

$

$

Not available

3

Lawn-Boy 92-4891

Grille-Engine

$37.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 93-0291

Decal-Recoil (Model No.10418)

$

$

Not available

5

Lawn-Boy 92-7883

Decal-Recoil (Model No.10522)

$

$

Not available

5

Lawn-Boy 92-4988

Decal-Recoil (Model No.10418 & 10517)

$

$

Not available

6

Lawn-Boy 92-1701

Stop-Rope
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 684659

Shield-Muffler

$

$

Not available

8

Lawn-Boy 2210-249

Clamp-Cable

$3.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 32144-73

Screw-Hex. Hd.
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

10

$3.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 551041

Key-Woodruff (Model No.10418)
(Superseded to 607199)

$5.49

$

In Stock, Qty 9

0

11

Lawn-Boy 551041

Key-Woodruff (Model No.10517 & 10522)
(Superseded to 607199)

$5.49

$

In Stock, Qty 9

0

12

Lawn-Boy 92-2944

Shield-Grass (Model No.10517 & 10522)

$

$

Not available

13

Lawn-Boy 92-4877

Nut-Push (Model No.10517 & 10522)
(Superseded to 107-3154)

$1.49

$

In Stock, Qty 6

0

14

Lawn-Boy 146044

Hub-Blade Driver

$

$

Not available

15

Lawn-Boy 146046

Plate-Blade Driver

$

$

Not available

16

Lawn-Boy 612543

Blade-21 "
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$37.99

$

In Stock, only 1 left!

0

18

$6.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 605339

Washer-Lock

$

$

Not available

20

Lawn-Boy 92-4879

Bolt-Blade

$

$

Not available

21

Lawn-Boy 92-1648

Screw
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 700029

Screw-Set (Model No.10517 & 10522)

$

$

Not available

23

Lawn-Boy 614249

Strap-Tie

$1.49

$

In Stock, Qty 6

0
