10516 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) ENGINE BRIGGS & STRATTON MODEL 12F702-0657-01 Parts Diagram

Gold Series Walk-Behind Mower

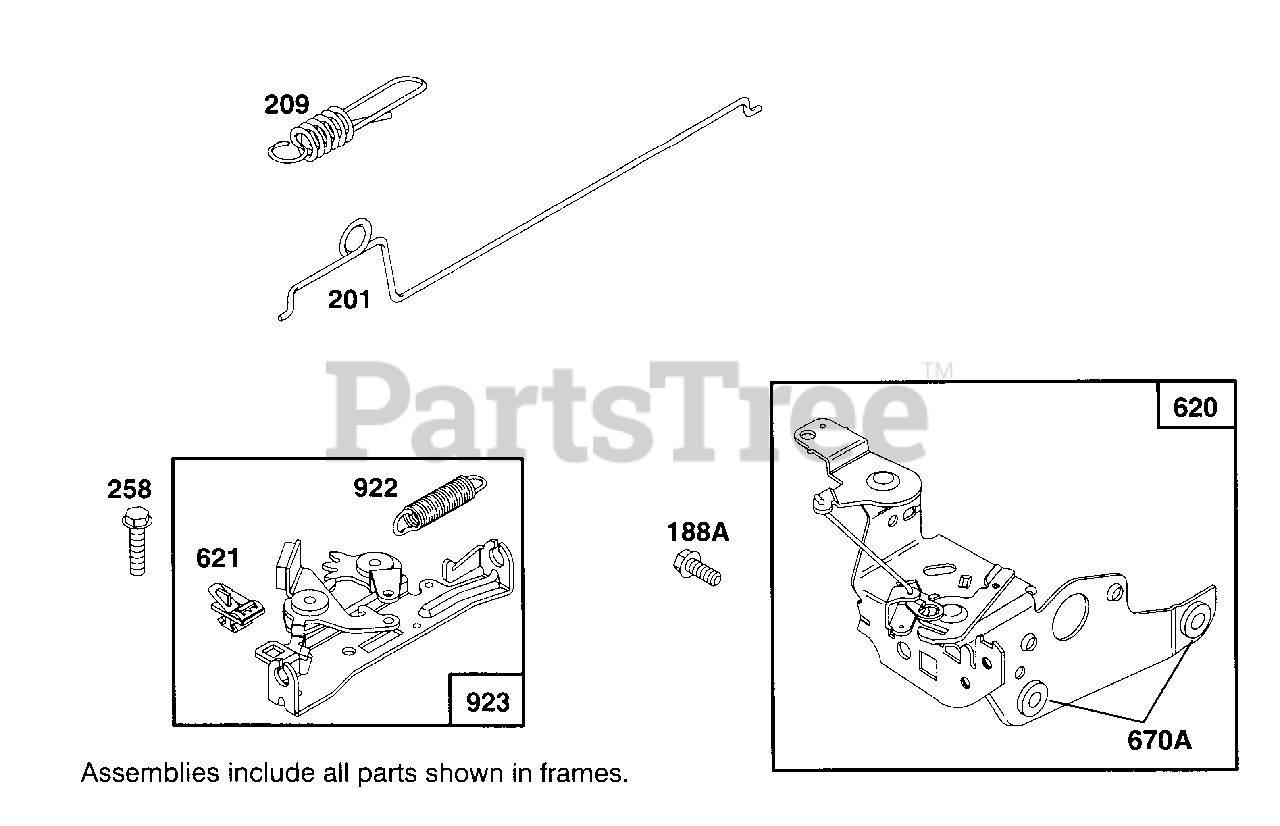

ENGINE BRIGGS & STRATTON MODEL 12F702-0657-01 Parts Diagram

  • Title
188A

Lawn-Boy 94644

Screw-Hex. Head

$

$

Currently unavailable

201

Lawn-Boy 262579

Link-Governor

$

$

Currently unavailable

209

Lawn-Boy 263044

Spring-Governor

$

$

Currently unavailable

258

Lawn-Boy 94512

Screw-Hex. Head

$

$

Currently unavailable

620

Lawn-Boy 497203

Bracket-Carburetor

$

$

Currently unavailable

621

Lawn-Boy 396847

Switch-Stop

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

670A

Lawn-Boy 493823

Spacer-Bracket

$

$

Currently unavailable

922

Lawn-Boy 262640

Spring-Brake

$

$

Currently unavailable

923

Lawn-Boy 493442

Brake Assembly

$

$

Currently unavailable
