10515 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) ENGINE, FUEL TANK & BLADE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

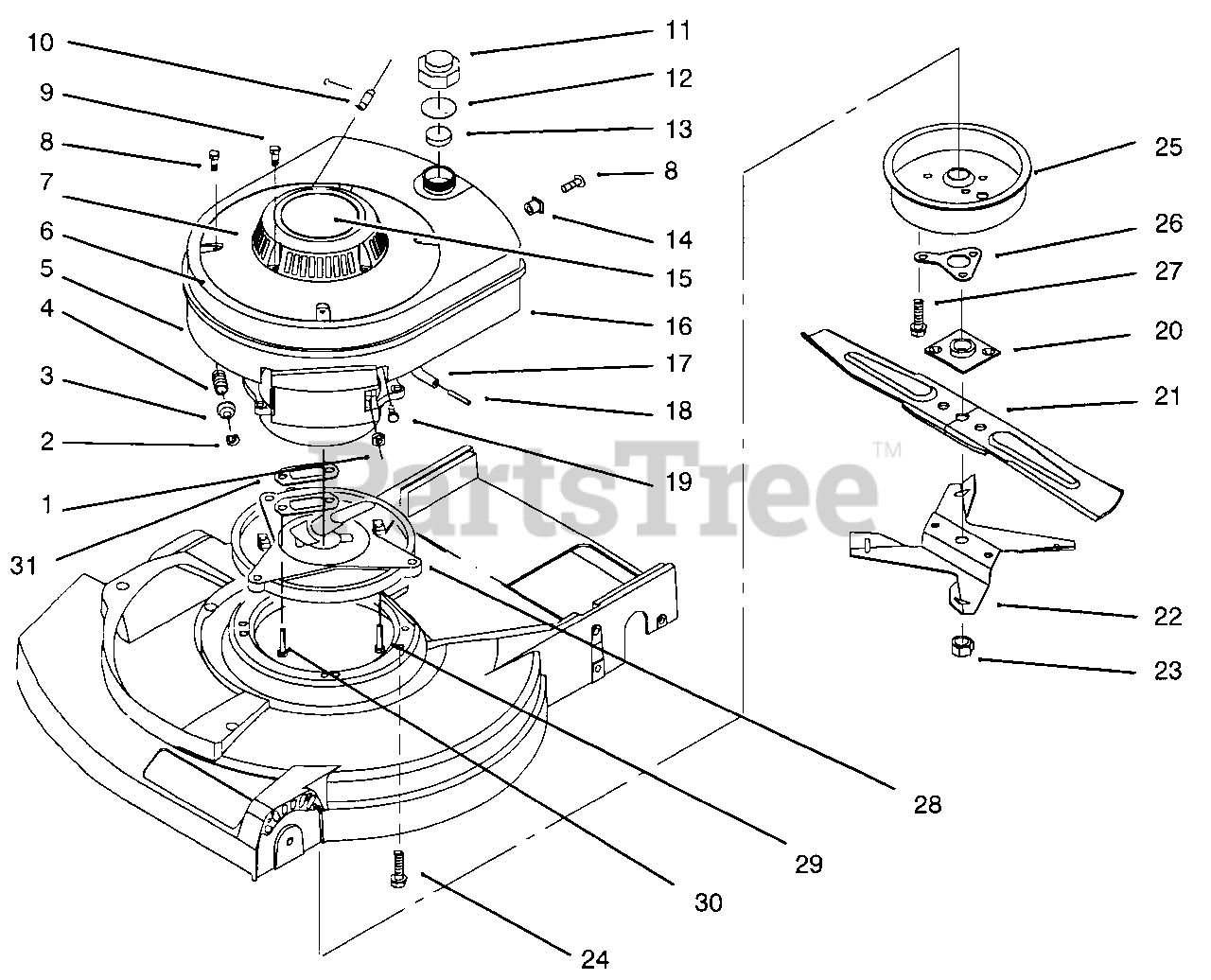

ENGINE, FUEL TANK & BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 306531

Nut
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 611213

Retainer

$1.99

$

In Stock, only 4 left!

0

3

Lawn-Boy 611509

Actuator-Lever Brake

$4.99

$

In Stock, only 3 left!

0

4

$8.49

$

In Stock, only 1 left!

0

5

Lawn-Boy 92-1084

Shroud & Tank Assembly
(Superseded to 16-5539)

$

$

Not available

6

Lawn-Boy 684301

Base-Starter

$

$

Not available

7

Lawn-Boy 683896

Starter Assembly
(Superseded to 93-4308)

$

$

Not available

8

Lawn-Boy 611395

Screw-Self Tapping
(Superseded to 611543)

$3.99

$

In Stock, Qty 6

0

9

$2.49

$

In Stock, only 4 left!

0

10

Lawn-Boy 47-2480

Stop-Rope

$

$

Not available

11

Lawn-Boy 611327

Cap-Fuel
(Superseded to 682755)

$21.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 607213

Gasket-Fuel Cap

$1.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 609150

Baffle Fuel Cap

$5.49

$

In Stock, Qty 11

0

14

Lawn-Boy 605120

Grommet

$3.99

$

In Stock, Qty 9

0

15

Lawn-Boy 92-1645

Decal-Recoil (Hand Push)
(Superseded to 92-9567)

$

$

Not available

16

Engine Assembly

$

$

Not available

17

Lawn-Boy 612783

Line-Fuel

$

$

Not available

18

Lawn-Boy 612974

Screen-Fuel Line

$6.99

$

In Stock, Qty 10

0

19

$1.49

$

In Stock, Qty 6

0

20

Lawn-Boy 677525

Plate & Collar Assembly

$23.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 612543

Blade 21"
(Superseded to 612543-03)

$29.99

$

In Stock, only 4 left!

0

22

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$32.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 92-1648

Screw-Engine
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 682876

Muffler Cover Assembly

$143.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 609786

Support-Crankshaft

$20.99

$

In Stock, only 2 left!

0

27

$4.99

$

In Stock, Qty 14

0

28

Lawn-Boy 611802

Plate-Muffler

$243.99

$

In Stock, only 1 left!

0

29

$8.49

$

Usually ships in 3-6 days

0

30

$3.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 609420

Gasket-Muffler
(Superseded to 93-1233)

$1.99

$

In Stock, Qty 5

0
