10510 - Toro 21" Rear Bagging Walk-Behind Mower (SN: 001000001 - 001999999) (1981) TRACTION CONTROL ASSEMBLY Parts Diagram

21" Rear Bagging Walk-Behind Mower

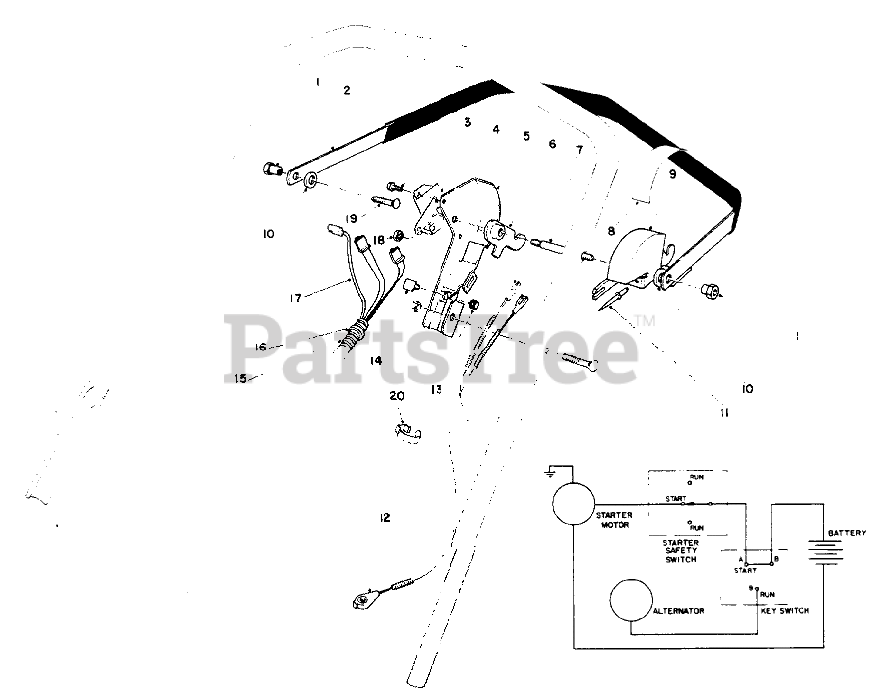

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 43-8660

Shoulder Nut

$

$

Not available

2

Toro 43-1460

Control Bar

$

$

Currently unavailable

3

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

4

Toro 43-4450

Starter Safety Switch

$

$

Not available

5

Toro 43-4650

Cable Support

$

$

Currently unavailable

6

Toro 43-4540

Traction Lever Assembly

$

$

Currently unavailable

7

Toro 43-8650

Shoulder Stud

$

$

Not available

8

Toro 43-4590

Decal-Start Indicator

$

$

Currently unavailable

9

Toro 43-4570

Start Indicator

$

$

Not available

10

Toro 43-8700

Nylon Washer

$

$

Currently unavailable

11

Toro 3269-3

RIVET-POP

$0.99

$

In Stock, only 4 left!

0

12

Toro 43-8770

Traction Cable

$

$

Not available

13

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

14

Toro 43-9180

Cable Clamp

$

$

Currently unavailable

15

Toro 38-6630

Cover-Wiring Harness

$

$

Not available

16

Toro 2412-48

RING FITTING

$

$

Not available

17

Toro 43-4580

Wiring Harness

$

$

Not available

18

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

19

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

20

Toro 218-465

BOWDEN CLIP

$

$

Not available
