1051 - Grass Handler Lawn Tractor (1986) (J.C. Penney) Five Speed Peerless Transaxle Parts Diagram

Lawn Tractor

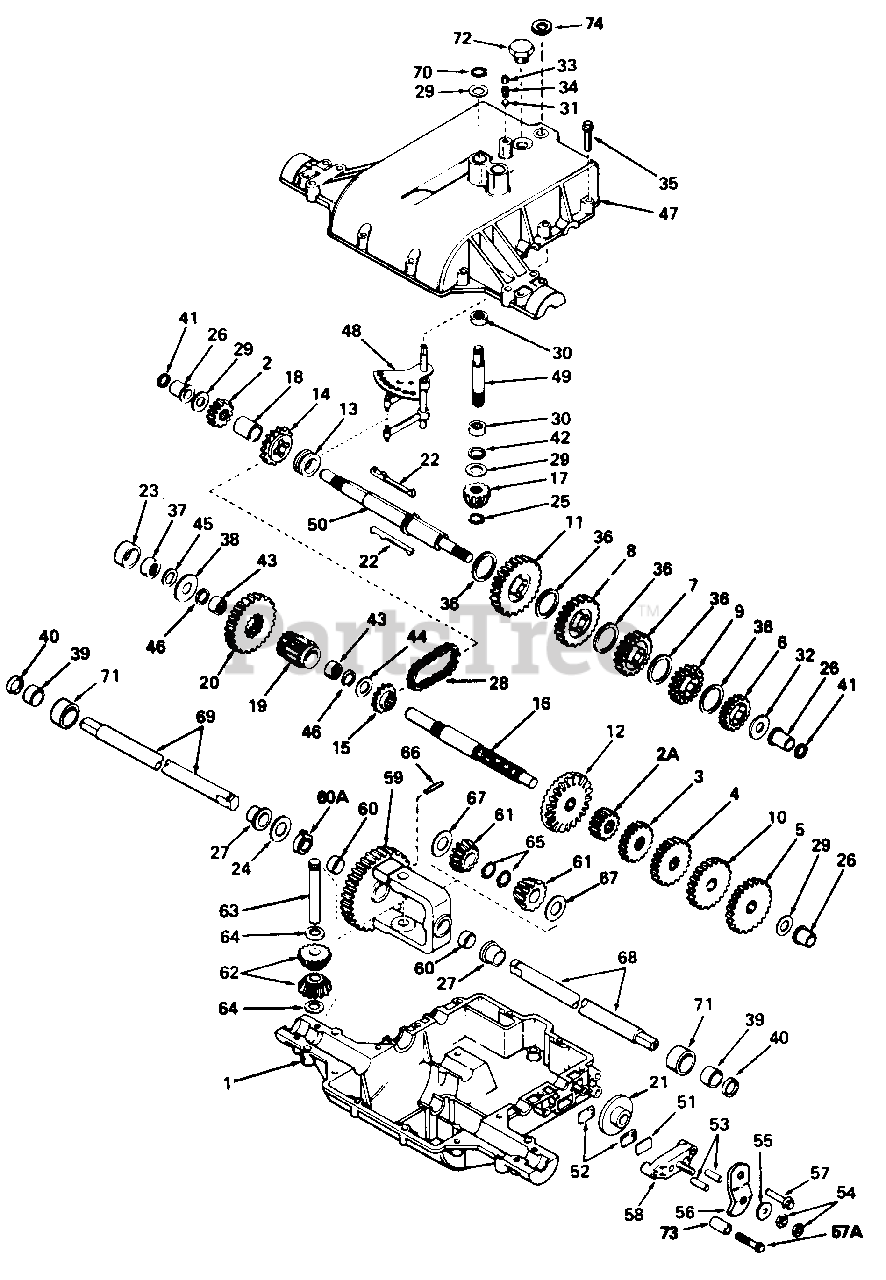

Five Speed Peerless Transaxle Parts Diagram

  • Title

1

MTD PE-770071A

Case, Transaxle

$

$

Currently unavailable

2

MTD PE-778136

Gear, Spur (15 Teeth)

$

$

Currently unavailable

2A

MTD PE-778145

Gear, Spur (12 Teeth)

$

$

Currently unavailable

3

MTD PE-778151

Gear, Spur (15 Teeth)

$

$

Currently unavailable

4

MTD PE-778126A

Gear, Spur (20 Teeth)
(Superseded to TC-778126A)

$48.99

$

Usually ships in 3-12 days

0

5

MTD PE-778129A

Gear, Spur (30 Teeth)

$

$

Not available

6

MTD PE-778121A

Gear, Spur (20 Teeth)
(Superseded to TC-778121A)

$46.99

$

Usually ships in 3-12 days

0

7

MTD PE-778124A

Gear, Spur (30 Teeth)
(Superseded to TC-778124A)

$34.99

$

In Stock, only 3 left!

0

8

MTD PE-778125

Gear, Spur (35 Teeth)
(Superseded to TC-778125)

$41.99

$

Usually ships in 3-12 days

0

9

MTD PE-778123A

Gear, Spur (25 Teeth)
(Superseded to TC-778123A)

$48.99

$

Usually ships in 3-12 days

0

10

MTD PE-778127A

Gear, Spur (25 Teeth)
(Superseded to TC-778127A)

$53.99

$

In Stock, only 3 left!

0

11

MTD PE-778146A

Gear, Spur (37 Teeth)

$

$

Currently unavailable

12

MTD PE-778137A

Gear, Bevel (42 Teeth)
(Superseded to TC-778137A)

$54.99

$

Usually ships in 3-12 days

0

13

MTD PE-784266

Collar, Shift
(Superseded to TC-784266)

$11.99

$

Usually ships in 3-12 days

0

14

MTD PE-786083

Sprocket (18 Teeth)
(Superseded to TC-786083)

$20.99

$

In Stock, only 1 left!

0

15

MTD PE-786082

Sprocket (9 Teeth)

$

$

Currently unavailable

16

MTD PE-776181

Shaft, Counter

$

$

Currently unavailable

17

MTD PE-778113A

Bevei Pinion, Input
(Superseded to TC-778113A)

$34.99

$

In Stock, only 1 left!

0

18

MTD PE-786074

Spacer

$

$

Currently unavailable

19

MTD PE-778138

Pinion, Output

$

$

Currently unavailable

20

MTD PE-778139

Gear, Output

$

$

Currently unavailable

21

MTD PE-790003

Disc, Brake

$

$

Currently unavailable

22

MTD PE-792089A

Key
(Superseded to TC-792089B)

$35.99

$

Usually ships in 3-12 days

0

23

MTD PE-786075

Spacer

$

$

Currently unavailable

24

MTD PE-780001

Washer

$

$

Not available

25

MTD PE-788040

Ring, Retaining
(Superseded to TC-788040)

$4.49

$

In Stock, only 4 left!

0

26

MTD PE-780105A

Bushing, Flanged
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 10

0

27

MTD PE-780118

Bushing, Flanged

$

$

Currently unavailable

28

MTD PE-786081

Chain, Roller (No. 41 Chain, 24 Links)
(Superseded to TC-786081)

$22.99

$

Usually ships in 3-12 days

0

29

MTD PE-780072

Washer, Thrust
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

MTD PE-780086

Bearing, Needle
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

31

MTD PE-792077

Ball, Steel
(Superseded to TC-792077A)

$4.49

$

In Stock, only 4 left!

0

32

MTD PE-780109

Washer, Thrust

$

$

Not available

33

MTD PE-792078

Screw, Set, 3/8-16 x 3/8
(Superseded to TC-792078)

$4.49

$

In Stock, only 1 left!

0

34

MTD PE-792079

Spring
(Superseded to TC-792079)

$4.49

$

In Stock, only 1 left!

0

35

MTD PE-792073

Screw, Hex Hd. Thread Forming, 1/4-20 x 1-1/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

36

MTD PE-780108

Washer, Thrust
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

37

MTD PE-780111

Bearing, Needle

$

$

Currently unavailable

38

MTD PE-780113

Washer, Flat

$

$

Currently unavailable

39

MTD PE-530105

Bearing, Needle

$

$

Currently unavailable

40

MTD PE-788042

Seal, Oil

$

$

Currently unavailable

41

MTD PE-788051

Ring, Square Cut

$

$

Currently unavailable

42

MTD PE-792001

Ring, Square Cut

$

$

Currently unavailable

43

MTD PE-780112

Bearing, Needle

$

$

Currently unavailable

44

MTD PE-780114

Washer, Flat

$

$

Currently unavailable

45

MTD PE-788052

Ring, Square Cut

$

$

Currently unavailable

46

MTD PE-788053

Ring, Square Cut
(Superseded to TC-788053)

$4.49

$

Usually ships in 3-12 days

0

47

MTD PE-772077B

Cover, Transaxle

$

$

Currently unavailable

48

MTD PE-784290

Rod and Fork Ass'y., Shift

$

$

Currently unavailable

49

MTD PE-776140

Shaft, Input
(Superseded to TC-776140)

$29.99

$

Usually ships in 3-12 days

0

50

MTD PE-776184A

Shaft, Brake

$

$

Currently unavailable

51

MTD PE-790007

Plate, Brake Pad

$

$

Currently unavailable

52

MTD PE-790006

Pad, Brake
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

53

MTD PE-786026

Pin, Dowel

$

$

Currently unavailable

54

MTD PE-792075

Lock Nut, 5/16-24

$

$

Currently unavailable

55

MTD PE-792076

Washer, Flat

$

$

Currently unavailable

56

MTD PE-790004

Lever, Brake

$

$

Currently unavailable

57

MTD PE-792073

Screw, Hex Hd. Thread Forming, 1/4-20 x 1-1/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

57A

MTD PE-792085

Screw, Hex Hd. Thread Forming, 1/4-20 x 2-1/4

$

$

Currently unavailable

58

MTD PE-790005

Holder, Brake Pad

$

$

Currently unavailable

59

MTD PE-778053A

Gear Ass'y., Differential

Note: (Incl. 2 of No. 60)

$

$

Currently unavailable

60

MTD PE-780064

Bushing

$

$

Currently unavailable

60A

MTD PE-780120

Bushing

$

$

Currently unavailable

61

MTD PE-778067

Gear, Bevel

$

$

Not available

62

MTD PE-778068

Pinion, Bevel
(Superseded to TC-778131)

$39.99

$

In Stock, Qty 6

0

63

MTD PE-786034

Pin Drive

$

$

Currently unavailable

64

MTD PE-780065

Washer, Thrust

$

$

Currently unavailable

65

MTD PE-792018

Ring, Retaining

$

$

Currently unavailable

66

MTD PE-792040

Pin, Roll

$

$

Currently unavailable

67

MTD PE-780001

Washer, Thrust

$

$

Not available

68

MTD PE-774420

Axle (14-7/8" Long)

$

$

Currently unavailable

69

MTD PE-774419

Axle (13" Long)

$

$

Currently unavailable

70

MTD PE-792035

Ring, Retaining
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 13

0

71

MTD PE-786084

Spacer

$

$

Currently unavailable

72

MTD PE-792074

Plug

$

$

Not available

73

MTD PE-786066

Spacer

$

$

Currently unavailable

74

MTD PE-792083

Washer

$

$

Currently unavailable
