10502 - Toro 21" Rear Bagging Walk-Behind Mower (SN: 001000001 - 001999999) (1981) GRASS BAG ASSEMBLY Parts Diagram

21" Rear Bagging Walk-Behind Mower

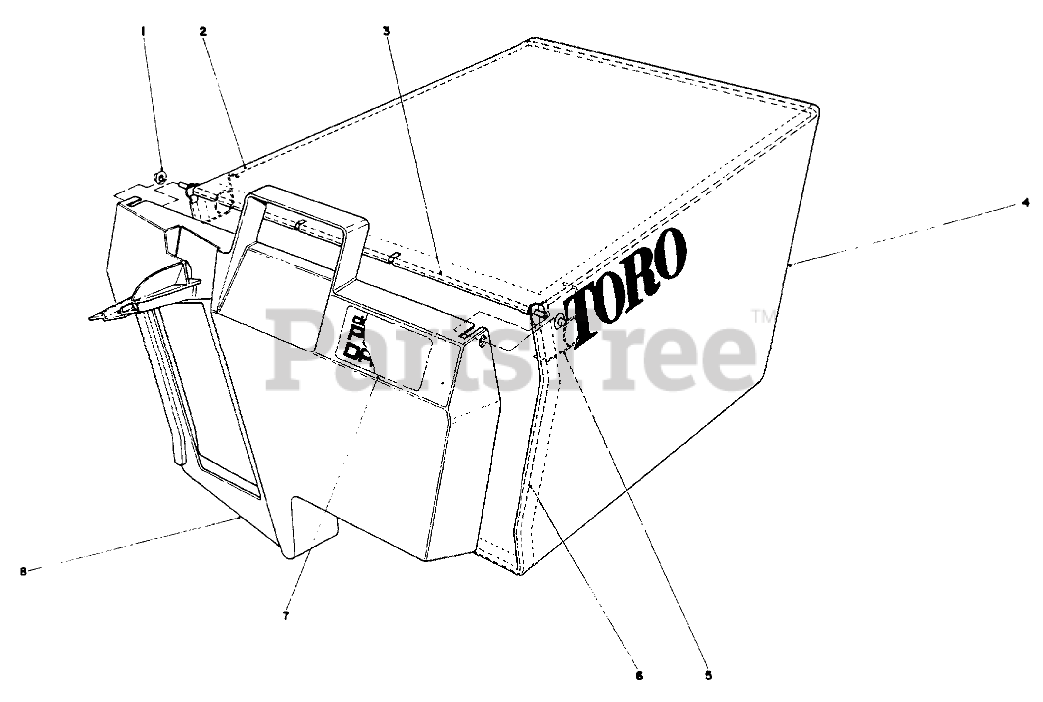

GRASS BAG ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-422

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

2

Toro 42-4030

FRAME-BAG, UPPER
(Superseded to 121-1388)

$23.99

$

Usually ships in 3-6 days

0

3

Toro 33-4820

HINGE-DOOR, BAG

$11.99

$

In Stock, only 3 left!

0

4

Toro 8-2759

Bag
(Superseded to 44-0522)

$94.99

$

Usually ships in 3-6 days

0

5

Toro 36-6910

SPRING

$11.99

$

In Stock, only 2 left!

0

6

Toro 42-4020

FRAME-BAG

$74.99

$

Usually ships in 3-6 days

0

7

Toro 40-2240

BAG DOOR DECAL

$

$

Not available

8

Toro 37-1390

Door Grass Bag
(Superseded to 37-1393)

$96.99

$

Usually ships in 3-6 days

0

Toro 11-0189

Grass Bag Assembly (Incl. Ref. #1-8)

Note: Not illustrated

$181.99

$

Usually ships in 3-6 days

0
