10500 - Toro 21" Rear Bagging Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

21" Rear Bagging Walk-Behind Mower

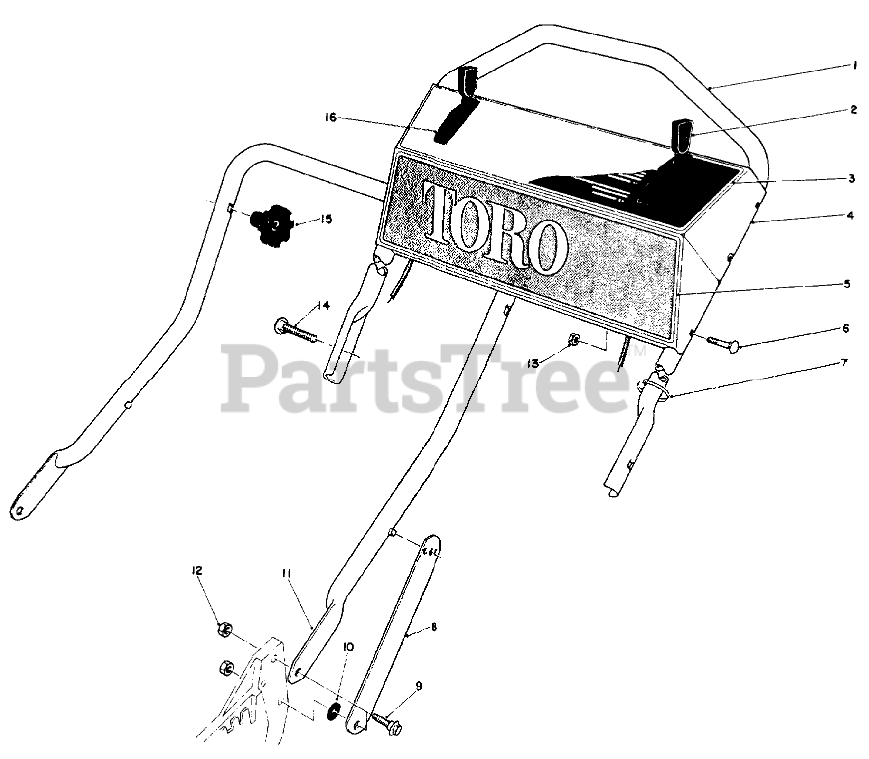

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 43-1340

Upper Handle

$

$

Not available

2

Toro 42-3911

Throttle Control

$

$

Not available

3

Toro 43-8820

Decal-Instruction

$

$

Currently unavailable

4

Toro 43-4471

Control Plate

$

$

Currently unavailable

5

Toro 43-8830

Decal-Tore

$

$

Currently unavailable

6

Toro 3229-26

Carriage Bolt

$

$

Currently unavailable

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

8

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

9

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

10

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

11

Toro 43-1360

Handle-Lower
(Superseded to 43-1361)

$

$

Not available

12

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

14

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

15

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

16

Toro 42-3920

Ground Speed Control
(Superseded to 42-3922)

$

$

Not available
