10500 - Toro 21" Rear Bagging Walk-Behind Mower (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY Parts Diagram

21" Rear Bagging Walk-Behind Mower

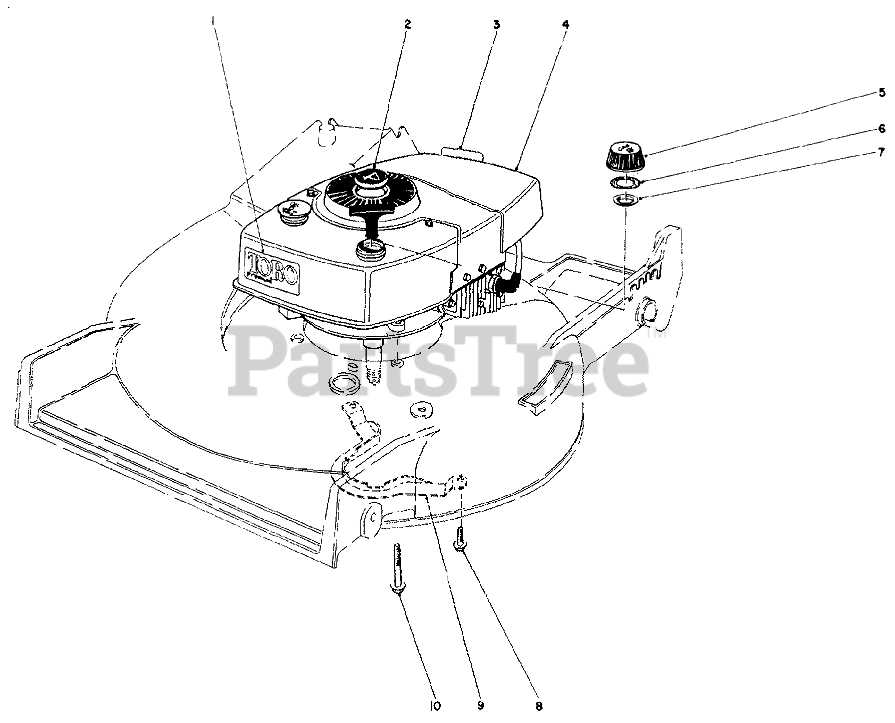

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 40-2570

Decal
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

3

Toro 37-1580

Decal-Maintenan

$

$

Not available

4

Toro 221-679

Engine

$

$

Currently unavailable

5

Toro 27-7870

Gas Cap (Incl. Ref. #6 & 7)
(Superseded to 42-0682)

$

$

Not available

6

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

7

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

8

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

9

Toro 39-1840

BELT GUIDE

$

$

Not available

10

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0
