1050 (149-605-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Transmission-Rear Housing & Gear Housing Parts Diagram

Garden Tractor

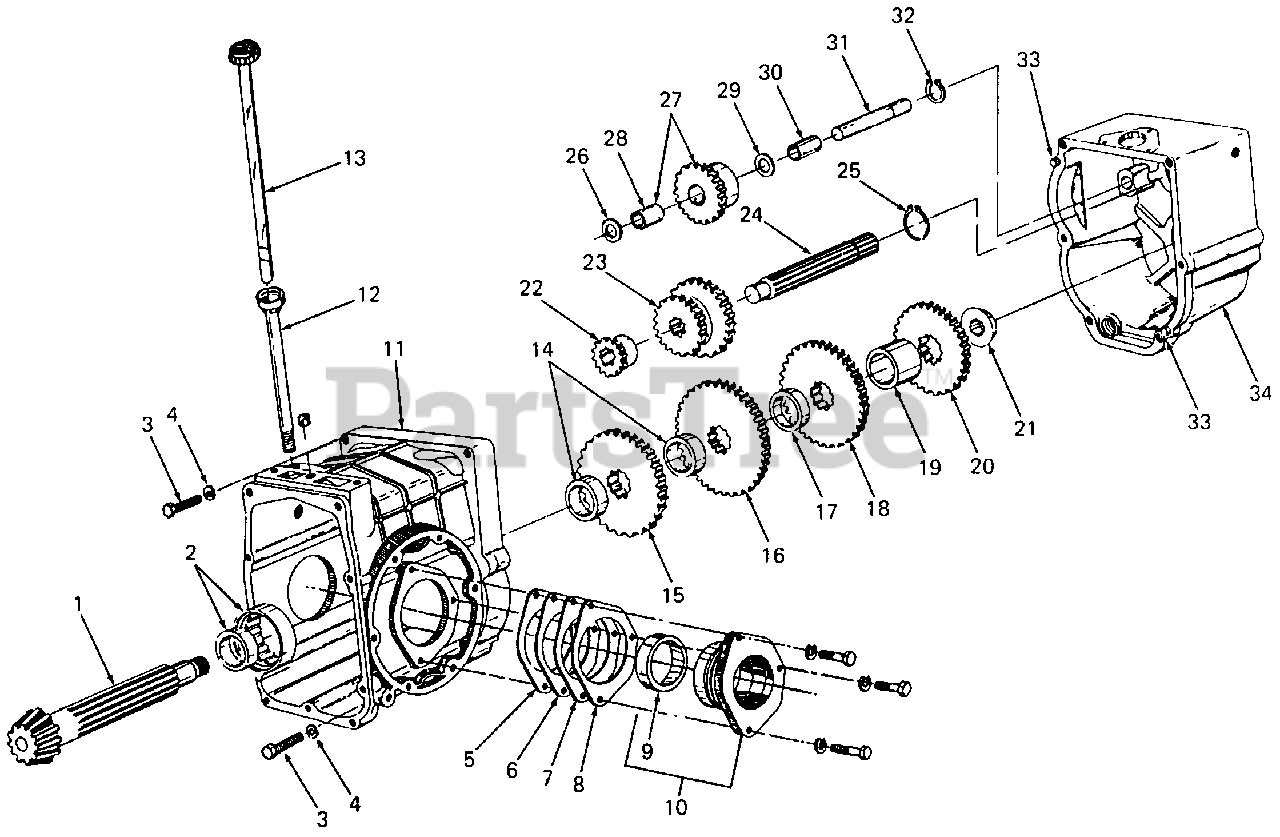

Transmission-Rear Housing & Gear Housing Parts Diagram

  • Title

1

Cub Cadet 717-3068

Shaft, Pinion - 10T

$

$

Currently unavailable

2

Cub Cadet 741-0367

Bearing Assy, Roller

$

$

Not available

3

Cub Cadet 710-0844

Screw, Hex Cap, 7/16-14 X 1.75 Lg GR5

$

$

Not available

4

Cub Cadet 736-0141

Washer, Spring, .445 X .75 X .017 Thk
(Superseded to 936-0141)

$6.99

$

In Stock, only 2 left!

0

5

Cub Cadet 717-3097

Shim, Bearing Retainer, .004 Thk

$

$

Not available

6

Cub Cadet 717-3098

Shim, Bearing Retainer, .007 Thk

$

$

Not available

7

Cub Cadet 717-3099

Shim, Bearing Retainer, .014 Thk

$37.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 717-3100

Shim, Bearing Retainer, .028 Thk

$

$

Not available

9

Cub Cadet 741-0400

Cup, Roller Bearing

$

$

Not available

10

Cub Cadet 717-3203

Retainer Assy, Bearing w/Cup

Note: (Includes Ref No. 9)

$

$

Not available

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 717-3205

Housing Assy, Rear w/Needle Brg

$

$

Not available

Cub Cadet 741-0364

Bearing, Needle
(Superseded to 941-0364)

$

$

Not available

Cub Cadet 723-3034

Gasket Eliminator, 24 cc tube

$

$

Not available

Cub Cadet 723-3036

Primer, Gasket, 6 oz can

Note: (For use with 723-3034)

$

$

Currently unavailable

Cub Cadet 723-3035

Remover, Gasket, 12 oz can

$

$

Currently unavailable

12

Cub Cadet 727-3028

Tube, Dipstick

Note: NOTE: Use Teflon Sealing Tape

$

$

Not available

13

Cub Cadet 703-0921

Blade Assy, Dipstick

$

$

Not available

Cub Cadet 721-0194

O-Ring

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 717-3091

Spacer, 1.18 X 1.75 X .692 Lg

$

$

Not available

15

Cub Cadet 717-3092

Gear, Reverse - 35T

$146.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 717-3090

Gear, 1st Speed - 39T
(Superseded to 917-3090)

$

$

Not available

17

Cub Cadet 717-3089

Spacer, 1.18 X 1.75 X .312 Lg

$

$

Not available

18

Cub Cadet 717-3088

Gear, 2nd Speed - 35 T

$

$

Not available

19

Cub Cadet 717-3083

Spacer, 1.18 X 1.75 X 1.312 Lg

$

$

Not available

20

Cub Cadet 717-3079

Gear, 3rd Speed - 26T

$

$

Not available

21

Cub Cadet 717-3081

Spacer, .788 X 1.75 X .375 Lg

$

$

Currently unavailable

22

Cub Cadet 717-3078

Gear, Sliding, 1st & Rev Speed - 13T
(Superseded to 917-3078)

$

$

Not available

23

Cub Cadet 717-3077

Gear, Sliding 2nd & 3rd Speed - 17 & 26T
(Superseded to 917-3077)

$

$

Not available

24

Cub Cadet 717-3093

Shaft, Main

$

$

Not available

25

Cub Cadet 716-0141

Ring, Snap

$

$

Not available

26

Cub Cadet 748-0198

Spacer, 5/8 ID X .220 Lg

$

$

Currently unavailable

27

Cub Cadet 717-3188

Gear Assy, Reverse - 22T
(Superseded to 917-3188)

Note: (Includes Ref No. 28)

$

$

Not available

28

Cub Cadet 741-3020

Bearing, Sleeve, .6125 ID X 1.125 Lg

$

$

Not available

29

Cub Cadet 736-0336

Washer, Flat
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

30

Cub Cadet 750-0544

Sleeve, .629 X .750 X 1.81 Lg

$

$

Currently unavailable

31

Cub Cadet 717-3116

Shaft, Reverse Idler

$

$

Not available

32

Cub Cadet 716-0132

Ring, Retaining

$

$

Not available

33

Cub Cadet 715-0146

Pin, Dowel, .38 Dia X .62 Lg

$

$

Not available

34

Cub Cadet 717-3051

Housing, Gear

$

$

Not available

Cub Cadet 723-3034

Gasket Eliminator, 24 cc tube

$

$

Not available

Cub Cadet 723-3036

Primer, Gasket, 6 oz can

$

$

Currently unavailable

Cub Cadet 723-3035

Remover, Gasket, 12 oz can

$

$

Currently unavailable
