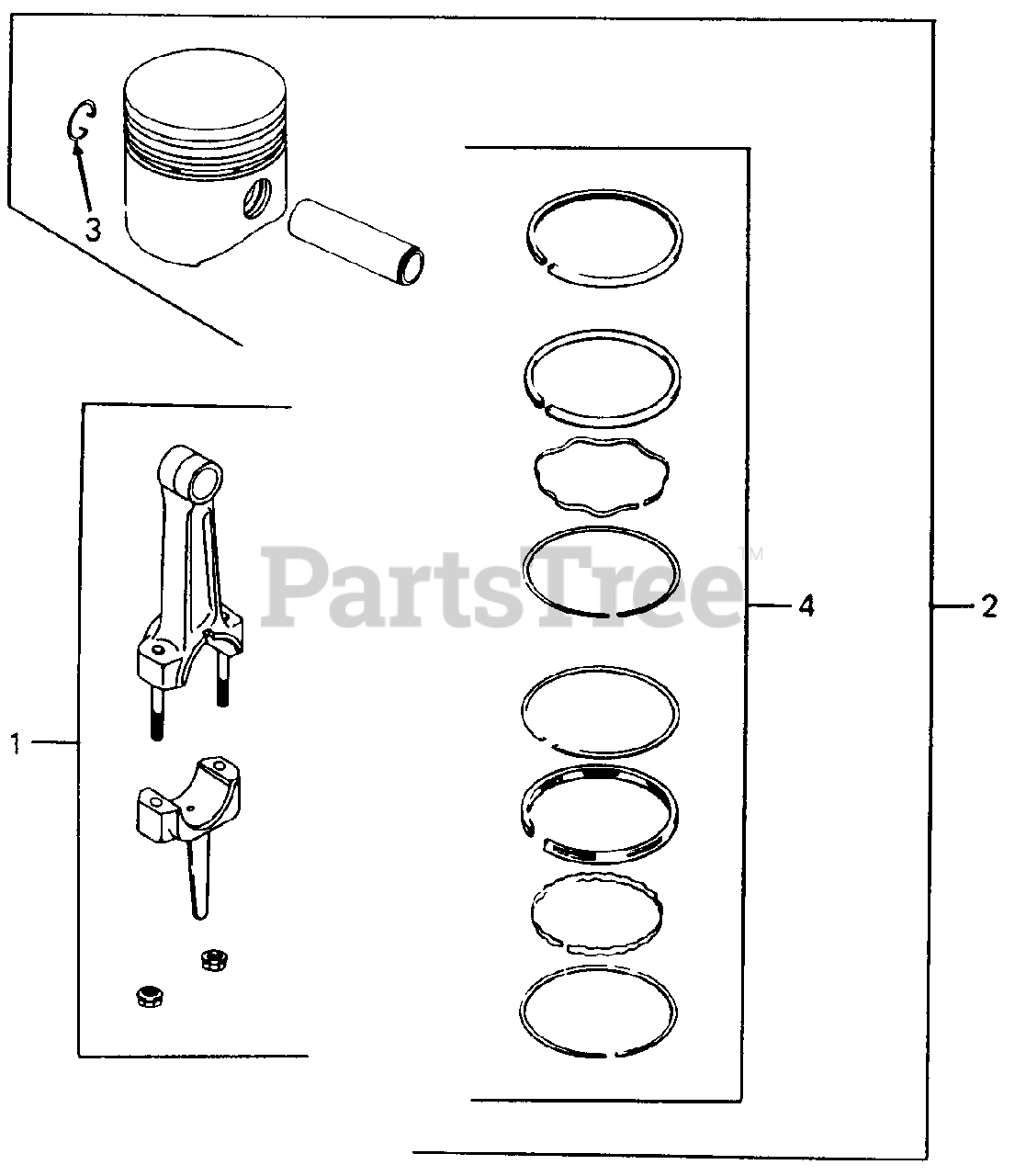

1050 (149-605-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Piston & Rod Parts Diagram

Garden Tractor

Piston & Rod Parts Diagram

  • Title
1

Cub Cadet KH-47-067-13

Connecting Rod (Std)

$

$

Not available

Cub Cadet KH-47-067-14

Connecting Rod (.010)

$

$

Not available

2

Cub Cadet KH-47-874-01

Piston w/Ring Set (Std)

Note: [Includes Ref No. 3 (Qty 2) & 4]

$

$

Not available

Cub Cadet KH-47-874-02

Piston w/Ring Set (.003)

$

$

Not available

Cub Cadet KH-47-874-03

Piston w/Ring Set (.010)

$

$

Not available

Cub Cadet KH-47-874-04

Piston w/Ring Set (.020)

$

$

Not available

Cub Cadet KH-47-874-05

Piston w/Ring Set (.030)

$

$

Not available

3

Cub Cadet KH-47-018-01

Retainer, Piston Pin

$

$

Not available

4

Cub Cadet KH-235287

Ring Set (Std & .003)

$

$

Not available

Cub Cadet KH-235288

Ring Set (.010)

$

$

Not available

Cub Cadet KH-235289

Ring Set (.020)
(Superseded to KH-235289-S)

$156.99

$

In Stock, only 1 left!

0

Cub Cadet KH-235290

Ring Set (.030)

$

$

Not available

$

$

Currently unavailable

Cub Cadet KH-47-755-27

Gasket Set w/Seals

$

$

Not available

Cub Cadet KH-47-004-02

Gasket Set w/o Seals

$

$

Not available
