105 - Husqvarna Automower Robotic Lawn Mower (Original) INSTALLATION ACCESSORIES Parts Diagram

Automower Robotic Lawn Mower

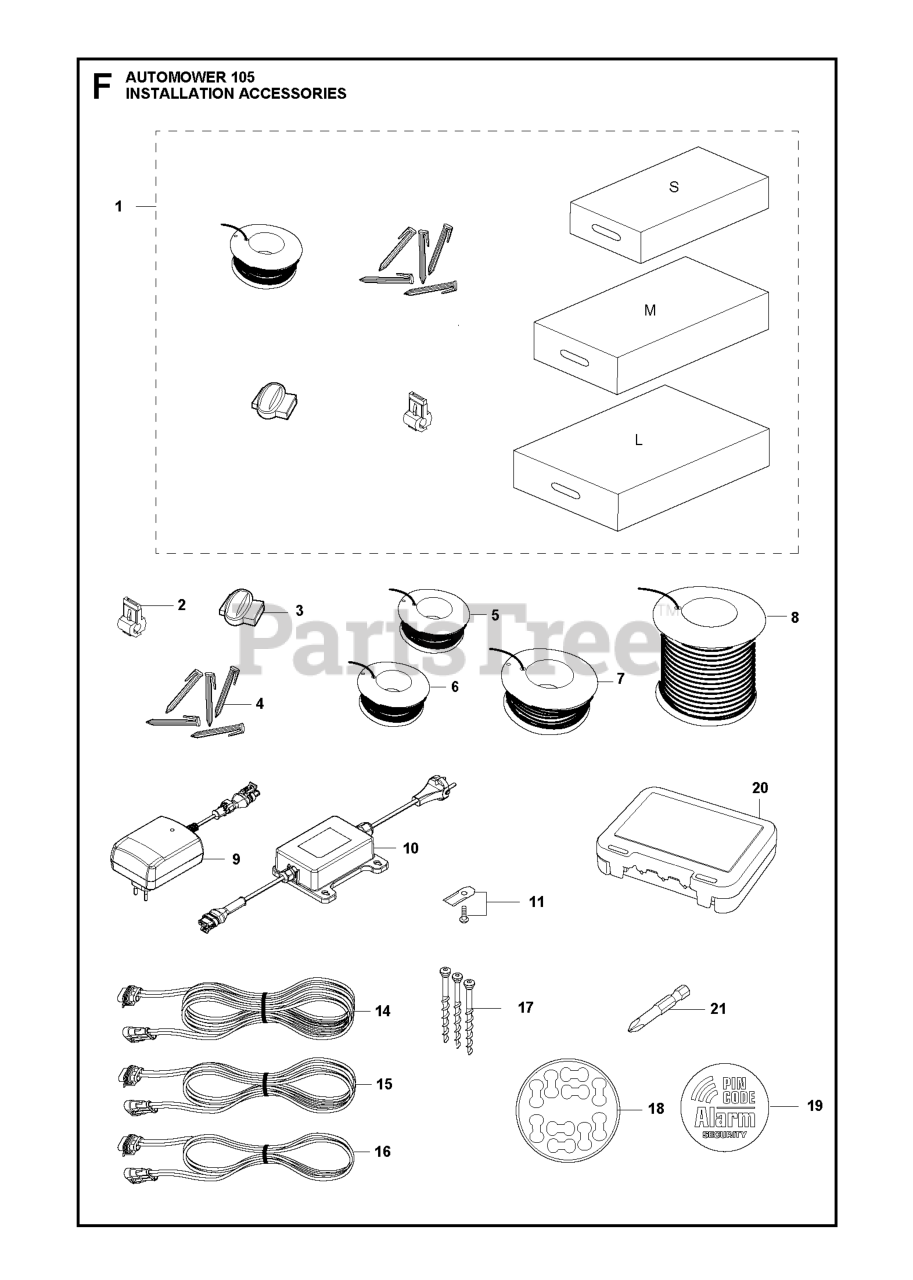

INSTALLATION ACCESSORIES Parts Diagram

  • Title

1

Husqvarna 967623601

SMALL AUTOMOWER INSTALL KIT
(Superseded to 967944601)

Note: Installation KIT S: Wire (150 m), Staples (300 pcs), Connectors (3 pcs), Couplers (5 pcs)

$

$

Not available

1

Husqvarna 967623602

MED AUTOMOWER INSTALL KIT
(Superseded to 967944602)

Note: Installation KIT M: Wire (250 m), Staples (400 pcs), Connectors (3 pcs), Couplers (5 pcs)

$193.99

$

In Stock, Qty 8

0

1

Husqvarna 967623603

LARGE AUTOMOWER INSTALL KIT
(Superseded to 967972302)

Note: Installation KIT L: Wire (400 m), Staples (600 pcs), Connectors (5 pcs), Couplers (5 pcs)

$283.99

$

Usually ships in 3-10 days

0

2

Husqvarna 535129001

BRAKER
(Superseded to 596290401)

Note: Loop Wire Connector

$10.99

$

In Stock, only 2 left!

0

2

Husqvarna 577864801

CONNECTOR 5 PCS, BLISTER
(Superseded to 596290401)

Note: Loop Wire Connector, Blister Pack, 5 pcs

$10.99

$

In Stock, only 2 left!

0

2

Husqvarna 535129002

CONNECTOR 100 PCS

Note: Loop Wire Connector, Blister Pack, 100 pcs

$

$

Not available

3

Husqvarna 501980201

SPLICE KIT
(Superseded to 596287101)

Note: Coupler, 1 pcs

$11.99

$

In Stock, only 2 left!

0

3

Husqvarna 577864701

COUPLER SPLICER, 5 PCS,
(Superseded to 596287101)

Note: Coupler, Blister Pack, 5 pcs

$11.99

$

In Stock, only 2 left!

0

3

Husqvarna 501980203

COUPLER SPLICER, 100 PCS
(Superseded to 596287001)

Note: Coupler, 100 pcs

$84.99

$

Usually ships in 3-10 days

0

4

Husqvarna 577864201

STAPLE 100 PCS, BLISTER
(Superseded to 596281901)

Note: 100 pcs 85mm

$38.99

$

Usually ships in 3-10 days

0

5

Husqvarna 577864302

WIRE 50M STANDARD Ø2.7MM,BLIST

Note: Loop Wire, Blister Pack (50 m)

$

$

Not available

5

Husqvarna 597237801

NEEDS DESCRIPTION

Note: Loop Wire (150 m)

$

$

Currently unavailable

7

Husqvarna 580662006

NEEDS DESCRIPTION

Note: Loop Wire (250 m)

$

$

Not available

8

Husqvarna 580662004

WIRE (800M)
(Superseded to 596286601)

Note: Wire (800 m)

$283.99

$

Usually ships in 3-10 days

0

9

Husqvarna 593163601

POWER UNIT POWER SUPPLY 1,3A

Note: Power Supply Unit EU

$

$

Not available

10

Husqvarna 590442202

NEEDS DESCRIPTION

Note: Power Supply Unit UK

$

$

Currently unavailable

10

Husqvarna 584862601

NEEDS DESCRIPTION

Note: EU

$

$

Currently unavailable

10

Husqvarna 590442203

NEEDS DESCRIPTION

Note: Power Supply Unit CH

$

$

Currently unavailable

10

Husqvarna 590442206

NEEDS DESCRIPTION

Note: Power Supply Unit JP

$

$

Currently unavailable

10

Husqvarna 584862605

Note: Power Supply Unit AU-NZ

$

$

Currently unavailable

11

Husqvarna 577864603

HUS BLADE SET 9 PCS
(Superseded to 596287201)

Note: Long Life - Safety Blade, Blister pack, 9 pcs

$

$

Not available

11

Husqvarna 577606505

HUS BLADE SET 45 PCS
(Superseded to 596287301)

Note: Long Life - Safety Blade, 45 pcs

$

$

Not available

11

Husqvarna 577606604

HUS BLADE SET 300 PCS
(Superseded to 596287302)

Note: Long Life - Safety Blade, 300 pcs

$

$

Not available

14

Husqvarna 579825101

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable 20 m

$93.99

$

Usually ships in 3-10 days

0

15

Husqvarna 579825102

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable 10 m

$53.99

$

Usually ships in 3-10 days

0

16

Husqvarna 579825104

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable (5 m)

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 579825103

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable 3 m

$37.99

$

Usually ships in 3-10 days

0

17

Husqvarna 577864901

SCREW 3 PCS, BLISTER PACK
(Superseded to 597435801)

Note: Anchor Screw KIT, Blister Pack, 3 pcs

$9.49

$

Usually ships in 3-10 days

0

18

Husqvarna 586277901

STICKER CABLE MARKERS KIT 10PC

Note: Sticker, Cable Markers, 10 pcs

$

$

Not available

19

Husqvarna 579571201

LABEL SECURITY

Note: Label Alarm

$4.99

$

In Stock, only 4 left!

0

20

Husqvarna 590855001

CONNECTOR PROTECTION BOX

Note: Cable Connector Protection

$

$

Not available

21

Husqvarna 596339801

WRENCH BITS CHANGING ROBOTIC B

Note: Bit for Automower blades MOQ 5 pcs

$206.99

$

Usually ships in 3-10 days

0
