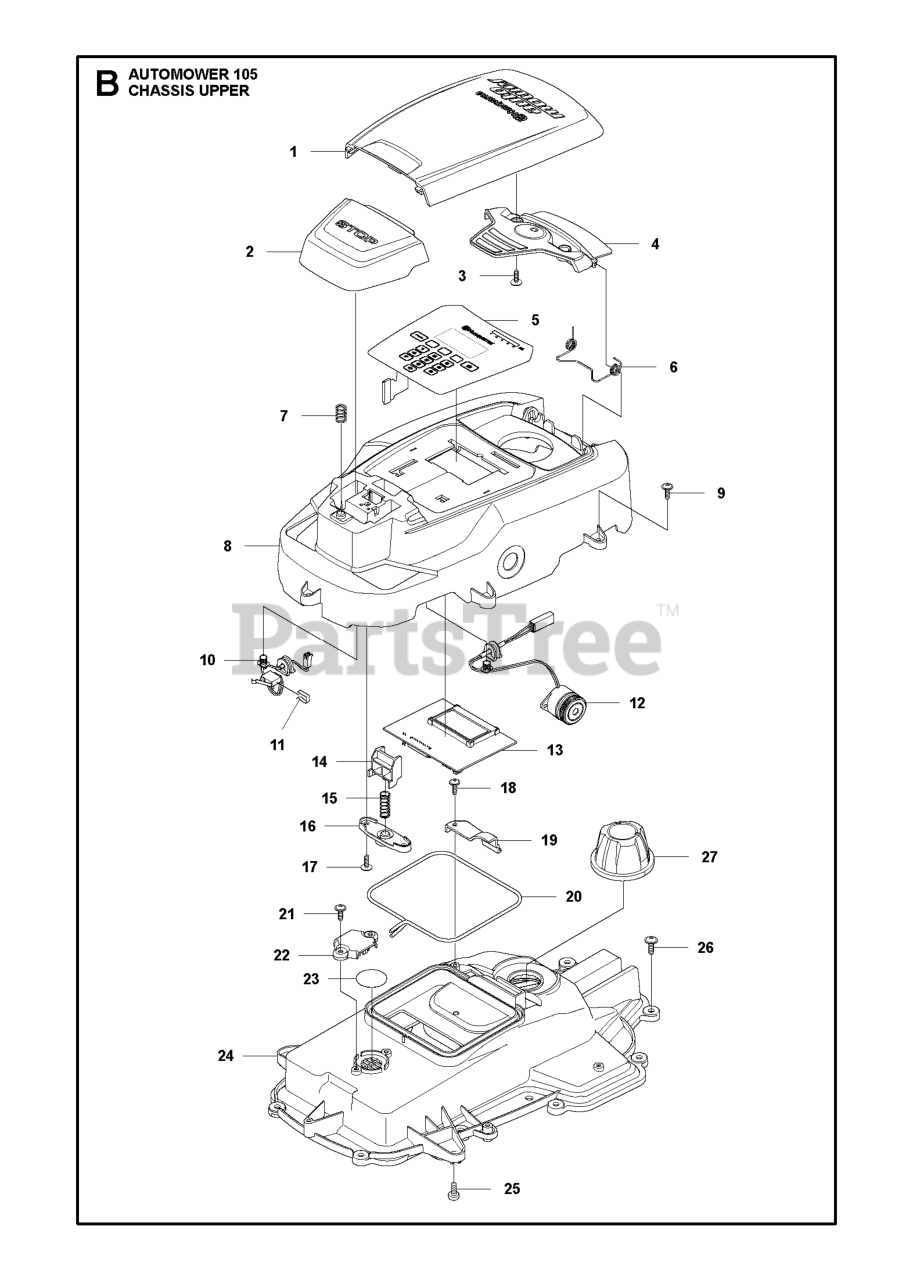

105 - Husqvarna Automower Robotic Lawn Mower (Original) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

CHASSIS UPPER Parts Diagram

  • Title

1

Husqvarna 588797603

NEEDS DESCRIPTION

Note: Cover Height Adjustment, Grey

$

$

Currently unavailable

2

Husqvarna 574464701

Note: Stop Button

$

$

Currently unavailable

3

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

4

Husqvarna 574377901

Note: Hinge, Height Adjustment Lid

$

$

Currently unavailable

5

Husqvarna 575779401

Note: Keyboard

$

$

Currently unavailable

6

Husqvarna 576242101

Note: Spring, Height Adjustment Lid

$

$

Currently unavailable

7

Husqvarna 574487001

SPRING STOP BUTTON

Note: Spring, Stop Button

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 577752802

Note: Display Cover KIT incl. Sealing & Keypad

$

$

Currently unavailable

9

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

10

Husqvarna 574480301

SWITCH STOP BUTTON

Note: Micro Switch, Stop Button

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 535089801

CLIP RETAINER

Note: Clip, Stop Button

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 574475901

BUZZER DISPLAY COVER

Note: Buzzer, Display Cover

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 588441901

PRINTED CIRCUIT ASSY MMI BOARD

Note: Display/HMI, Circuit Board (From S/N 16010001-)

$133.99

$

Usually ships in 3-10 days

0

14

Husqvarna 575409001

LOCK STOP BUTTON

Note: Lock, Stop Button

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 576242201

SPRING LOCK STOP BUTTON

Note: Spring Lock, Stop Button

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 575415801

SPRING HOLDER STOP BUTTON

Note: Spring Holder, Stop Button

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

18

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

19

Husqvarna 576053902

NEEDS DESCRIPTION

Note: For 2020, 2019, & 2018 models. Cover, Height Indicator.

$

$

Currently unavailable

19

Husqvarna 576053901

COVER HEIGHT INDICATOR

Note: For 2017 & 2016 models

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 574874704

SEALING STRIP P1

Note: Sealing Strip (1 pcs, ¯4 mm)

$48.99

$

Usually ships in 3-10 days

0

21

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

22

Husqvarna 576697001

COVER AIR FILTER

Note: Cover, Air Filter

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: Air Filter KIT (10 pcs)

$51.99

$

Usually ships in 3-10 days

0

24

Husqvarna 577752902

KIT CHASSIS UPPER KIT INCL. SE

Note: Chassis Upper KIT incl. Sealing & Air Filter

$62.99

$

Usually ships in 3-10 days

0

25

Husqvarna 590740201

SCREW ISO 14583 M5X12 T25 A2-7

Note: Screw

$2.49

$

Usually ships in 3-10 days

0

26

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 579742401

Note: Knob, KIT incl. Label

$

$

Currently unavailable
