105 - Husqvarna Automower Robotic Lawn Mower (2017-01) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

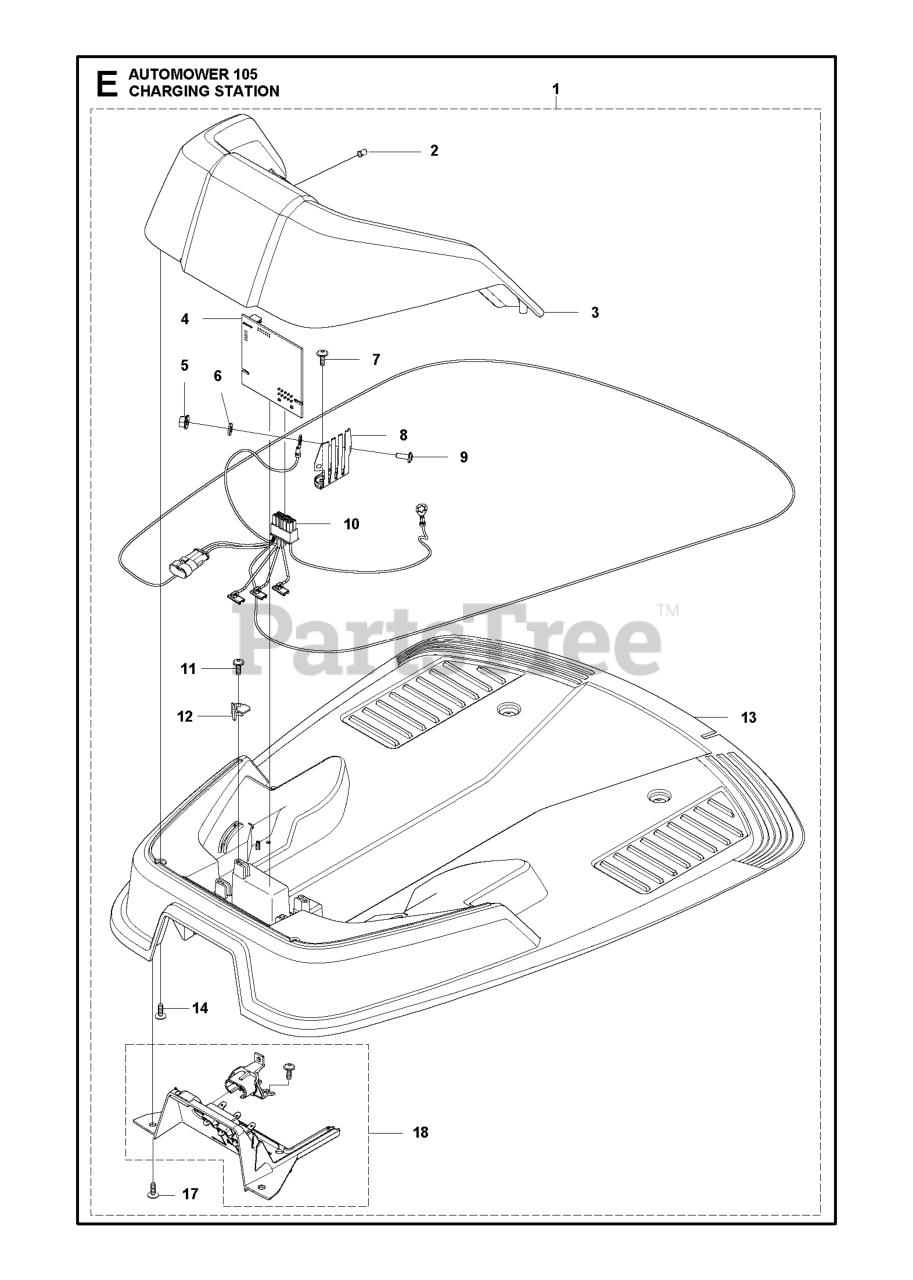

CHARGING STATION Parts Diagram

  • Title

6

Husqvarna 535087401

FIBER WASHER

Note: Washer

$

$

Not available

8

Husqvarna 587125101

CONTACT CHARGER STATION CONTAC

Note: Contact, Charging Station

$9.99

$

Usually ships in 3-10 days

0

13

Husqvarna 581551903

CHARGING STATION BASE PLATE

Note: Charging Station Base Plate

$121.99

$

Usually ships in 3-10 days

0

14

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

2

Husqvarna 535128702

LENS
(Superseded to 590217201)

Note: Diode Lens

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 576636712

NEEDS DESCRIPTION

Note: Charging Station

$

$

Currently unavailable

10

Husqvarna 582381001

CABLE ASSY CHARGING STATION

Note: Loom, Charging Station

$42.99

$

Usually ships in 3-10 days

0

18

Husqvarna 582356401

PANEL ASSY AMP

Note: Guide Cover, Charging Station

$60.99

$

Usually ships in 3-10 days

0

17

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

5

Husqvarna 588222101

HEXAGON NUT FLANGE M4 A2-70

Note: Nut Flange

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 535127901

BRACKET

Note: Bracket

$

$

Not available

3

Husqvarna 575708402

Note: Charging Station Cover, Grey

$

$

Currently unavailable

7

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

9

Husqvarna 588222201

SCREW ITXPANM M4X12 A2-70 PAT

Note: Screw

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

4

Husqvarna 582876201

PRINTED CIRCUIT ASSY P1 CS PCB

Note: Circuit Board, Charging Station

$250.99

$

Usually ships in 3-10 days

0
