105 - Husqvarna Automower Robotic Lawn Mower (2017-01) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

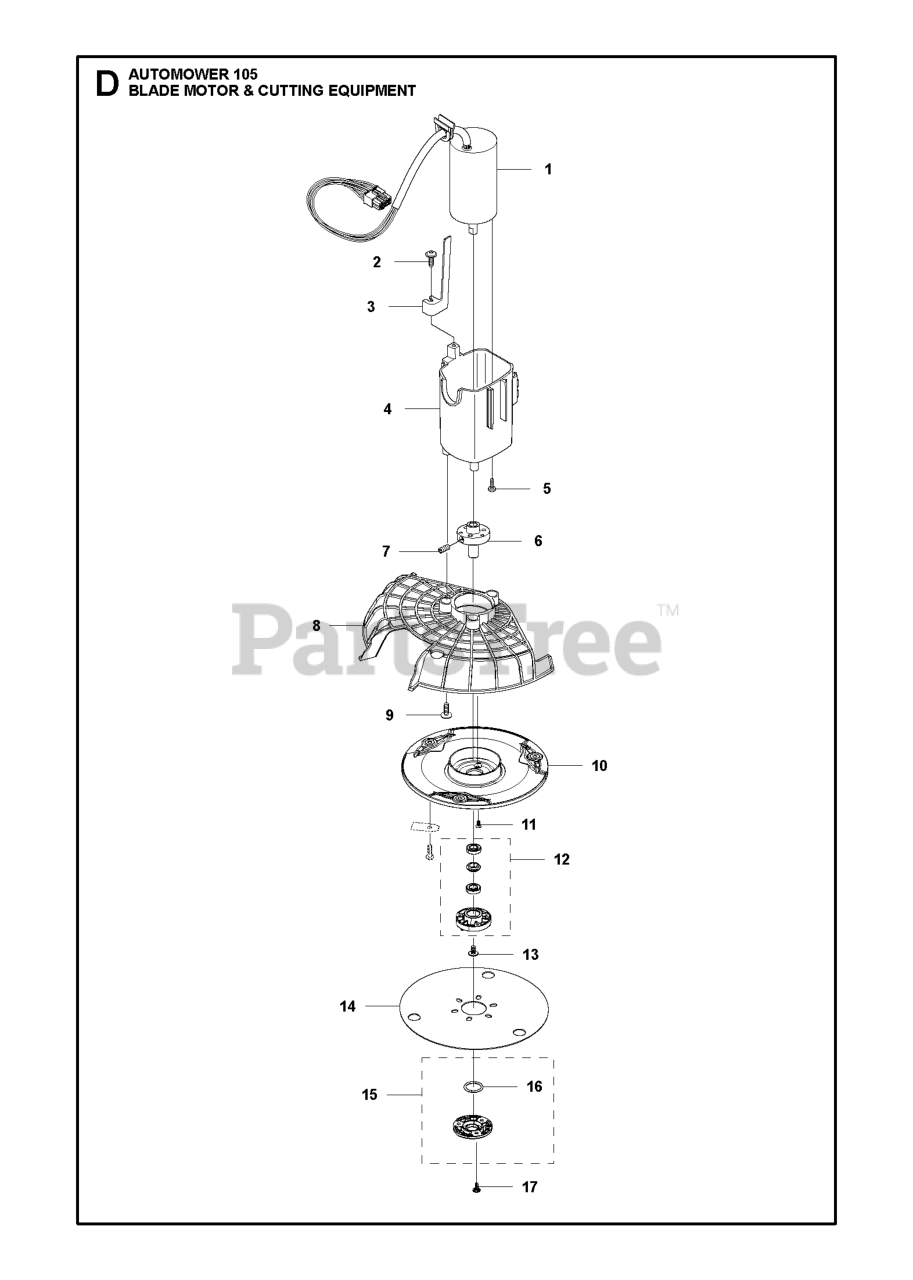

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

6

Husqvarna 587423401

NEEDS DESCRIPTION

Note: Hub, Cutting Motor

$

$

Currently unavailable

8

Husqvarna 579758301

GUARD CUTTING DISC

Note: Guard, Cutting Disc

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 535130502

SCREW TORX M4X8 8.8 NYLON PATC

Note: Screw

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 581020301

MOTOR HOUSING

Note: Motor Housing

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 585297501

O-RING 20X2,5 MM

Note: O-Ring

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 576213801

SCREW ITXPANM M4X12 8.8 ZP-BC

Note: Screw

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

13

Husqvarna 535076001

SCREW

Note: Screw

$4.99

$

In Stock, Qty 17

0

1

Husqvarna 584989302

MOTOR CUTTING, TYPE 2

Note: Cutting Motor

$169.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574503501

HEIGHT INDICATOR

Note: Height Indicator

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 587423701

NEEDS DESCRIPTION

Note: Skid Plate

$

$

Currently unavailable

12

Husqvarna 588421701

BEARING HOUSING ASSY SPARE PAR
(Superseded to 588421702)

Note: Bearing Housing ASSY

$26.99

$

In Stock, only 3 left!

0

17

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

15

Husqvarna 587449601

COVER KIT BEARING

Note: Bearing Cover

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 576213501

SCREW IHSETM M5X10 8.8 ZP-BC

Note: Stop Screw

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 587423601

NEEDS DESCRIPTION

Note: Cutting Disc

$

$

Currently unavailable

2

Husqvarna 575543310

SCREW SILVER 10MM

Note: Screw, Grey (14 mm)

$3.49

$

In Stock, Qty 9

0
