105 - Husqvarna Automower Robotic Lawn Mower (2016-02) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

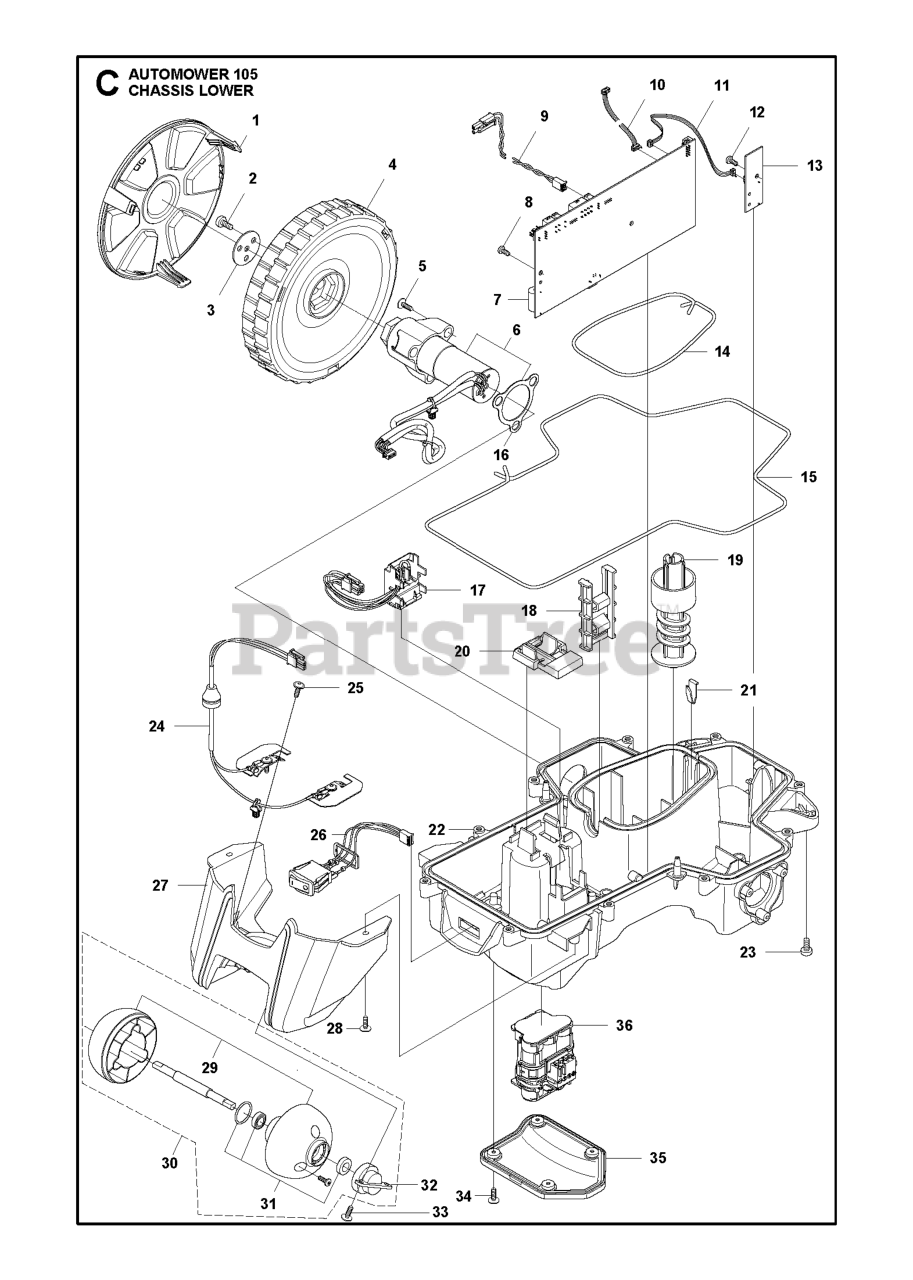

CHASSIS LOWER Parts Diagram

  • Title

6

Husqvarna 577839904

WHEEL MOTOR ASSY WHEEL MOTOR K
(Superseded to 577839906)

$284.99

$

Usually ships in 3-10 days

0

28

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

2

Husqvarna 576213902

SCREW ITXPANM M5X12 8.8 ZP-BC

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 576213901

SCREW ITXPANM M5X12 8.8 ZP-BC
(Superseded to 590740201)

$2.49

$

Usually ships in 3-10 days

0

5

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

17

Husqvarna 574479801

LOOM BATTERY 18 V LLITHIUM

$27.99

$

Usually ships in 3-10 days

0

1

Husqvarna 575430801

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 577103201

LOCKING SPRING

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 577846202

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 574373701

GASKET MOTOR FLANGE

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 588950901

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 574465104

WHEEL DRIVE WHEEL

$36.99

$

Usually ships in 3-10 days

0

13

Husqvarna 588572101

PRINTED CIRCUIT ASSY SENSOR BO

$51.99

$

Usually ships in 3-10 days

0

30

Husqvarna 578275103

REAR WHEEL REAR WHEEL KIT COMP

$91.99

$

Usually ships in 3-10 days

0

15

Husqvarna 577843601

Note: Sealing Strip, Chassis (10 pcs, Ø4 mm) Note: For warranty claims, please use part number for 1 pcs, see SB

$

$

Currently unavailable

8

Husqvarna 535130310

SCREW

Note: 10 mm

$3.49

$

In Stock, only 4 left!

0

31

Husqvarna 578275201

REAR WHEEL BEARING AND SEALING

$60.99

$

Usually ships in 3-10 days

0

36

Husqvarna 589586101

BATTERY LI-ION

Note: Lithium 18 V

$193.99

$

Usually ships in 3-10 days

0

29

Husqvarna 583853902

REAR WHEEL REAR WHEEL KIT, LEF

$27.99

$

Usually ships in 3-10 days

0

11

Husqvarna 588901201

WIRING ASSY LOOP AND LIFT SENS

$24.99

$

Usually ships in 3-10 days

0

25

Husqvarna 575529502

NEEDS DESCRIPTION

Note: Grey (14 mm)

$

$

Currently unavailable

32

Husqvarna 577715001

BEARING HOUSING REAR WHEEL

$7.49

$

In Stock, only 3 left!

0

3

Husqvarna 577093201

WASHER DRIVE WHEEL

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 588832701

WIRING ASSY HMI

$34.99

$

Usually ships in 3-10 days

0

33

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

35

Husqvarna 574467301

COVER BATTERY

$24.99

$

Usually ships in 3-10 days

0

27

Husqvarna 574467202

HOUSING REAR WHEEL FLAME RETAR

$42.99

$

Usually ships in 3-10 days

0

7

Husqvarna 588628803

PRINTED CIRCUIT ASSY MAIN BOAR
(Superseded to 592851701)

$398.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574501901

GUIDE RAIL MOTOR BOWL

$9.99

$

Usually ships in 3-10 days

0

20

Husqvarna 575408201

LOCK BATTERY PLUG

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 579708701

LOOM ON/ OFF

$34.99

$

Usually ships in 3-10 days

0

19

Husqvarna 574484601

SCREW HEIGHT ADJUSTMENT

$9.99

$

Usually ships in 3-10 days

0

34

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 577753601

Note: Sealing Strip (10 pcs, Ø4 mm) Note: For warranty claims, please use part number for 1 pcs, see SB

$

$

Currently unavailable

12

Husqvarna 535130310

SCREW

Note: 10 mm

$3.49

$

In Stock, only 4 left!

0

9

Husqvarna 576220201

LOOM BUZZER EXTENSION

$14.99

$

Usually ships in 3-10 days

0
