105 - Husqvarna Automower Robotic Lawn Mower (2016-02) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

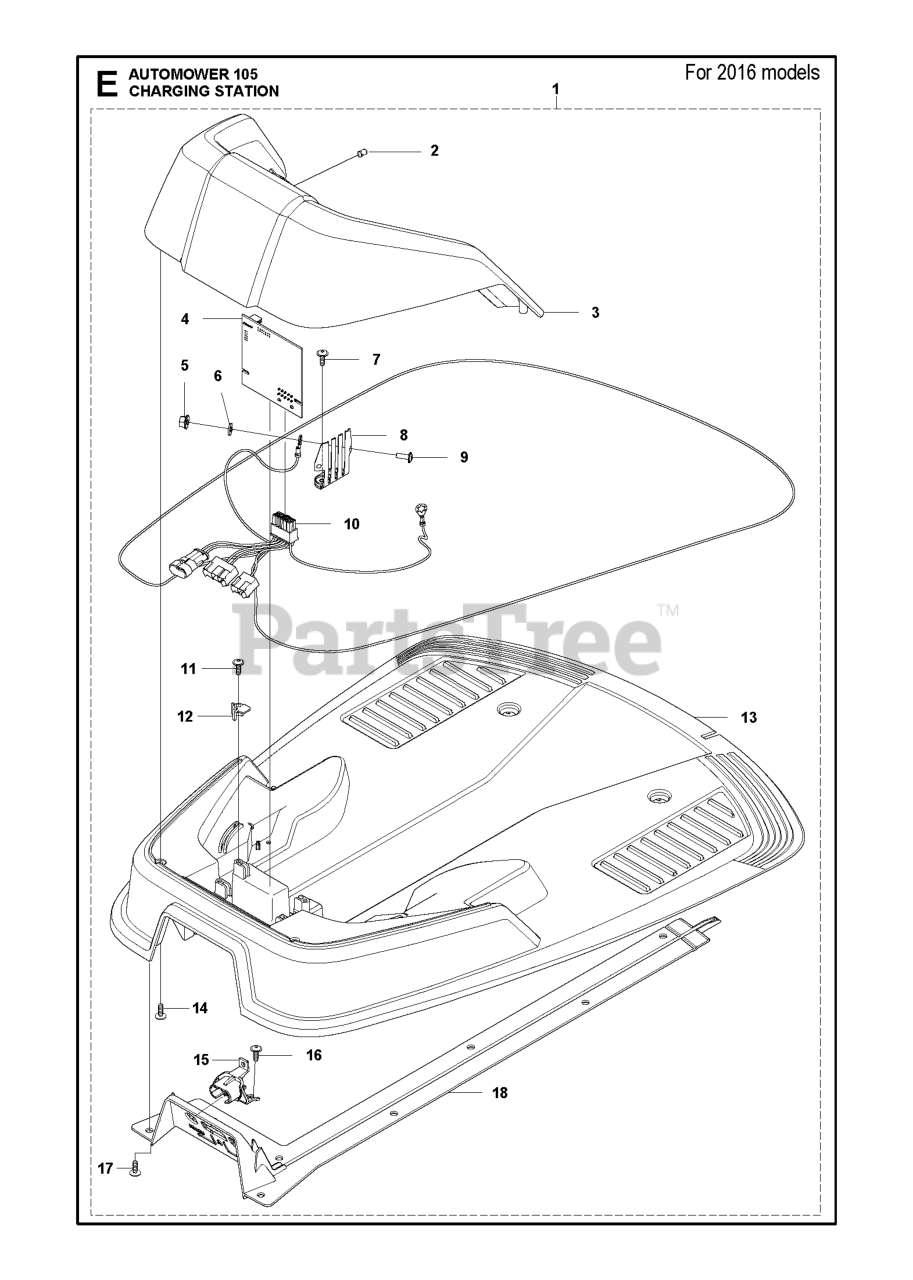

CHARGING STATION Parts Diagram

  • Title

18

Husqvarna 587878401

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

14

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

5

Husqvarna 588222101

HEXAGON NUT FLANGE M4 A2-70

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

6

Husqvarna 535087401

FIBER WASHER

$

$

Not available

10

Husqvarna 588490302

NEEDS DESCRIPTION

$

$

Currently unavailable

11

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

4

Husqvarna 588882501

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 587125101

CONTACT CHARGER STATION CONTAC

$9.99

$

Usually ships in 3-10 days

0

12

Husqvarna 535127901

BRACKET

$

$

Not available

3

Husqvarna 575708402

Note: Grey

$

$

Currently unavailable

15

Husqvarna 587878501

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 535128702

LENS
(Superseded to 590217201)

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 588222201

SCREW ITXPANM M4X12 A2-70 PAT

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 576636709

NEEDS DESCRIPTION

Note: Grey

$

$

Currently unavailable

16

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$4.99

$

In Stock, Qty 17

0

13

Husqvarna 581551902

NEEDS DESCRIPTION

$

$

Currently unavailable
