105 - Cub Cadet Garden Tractor Implement Lift Handle & Connections Parts Diagram

Garden Tractor

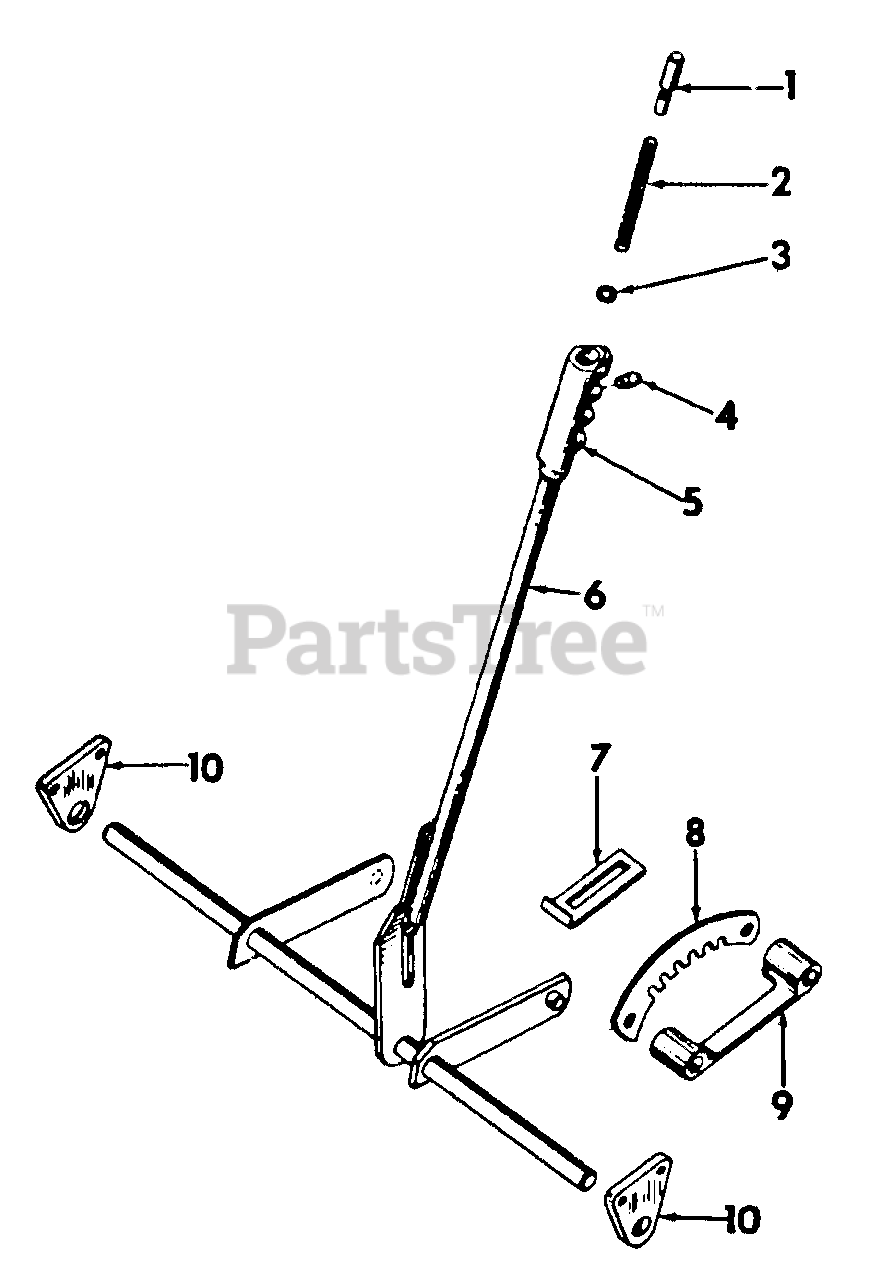

Implement Lift Handle & Connections Parts Diagram

  • Title

1

Cub Cadet IH-401456-R2

Pin, Release Rod

$

$

Not available

2

Cub Cadet 732-3005

Spring, rod Return
(Superseded to 932-3005)

$9.49

$

In Stock, only 1 left!

0

3

Cub Cadet 736-3009

Washer, Spring

$

$

Not available

4

Cub Cadet IH-401449-R1

Lock Assy, Release Rod

$

$

Not available

5

Cub Cadet IH-401448-R1

Grip

$

$

Not available

6

Cub Cadet IH-401441-R91

Handle w/Grip, Lift

$

$

Currently unavailable

7

Cub Cadet IH-384740-R2

Stop, Lift Arm

$

$

Currently unavailable

Bolt, 1/2-13 X 1-1/4 C-Z Crg

$

$

Not available

Cub Cadet 712-0206

Nut, 1/2-13 C-Z Hex

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0921

Washer, 1/2 C-Z Med Lock

$4.49

$

In Stock, Qty 5

0

Cub Cadet 736-0272

Washer, 17/32 X 1-1/16 X .095 C-Z

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 703-0364

Ratchet, Lift

$

$

Not available

9

Cub Cadet IH-400382-R1

Spacer Assy, Lift Ratchet

$

$

Not available

Bolt, 3/8-16 X 2-1/4 Sq Nk Crg

$

$

Not available

Nut, 3/8-16 Hex

$

$

Not available

Cub Cadet 736-0148

Washer, 3/8 Ext Tooth Lock

$3.99

$

In Stock, only 3 left!

0

10

Cub Cadet IH-384739-R1

Bracket, Lift Handle Shaft

$

$

Not available

Screw, 3/8-16 X 3/4 Hex Hd Cap

$

$

Not available
