105 - Cub Cadet Garden Tractor Engine Controls & Instrument Panel Parts Diagram

Garden Tractor

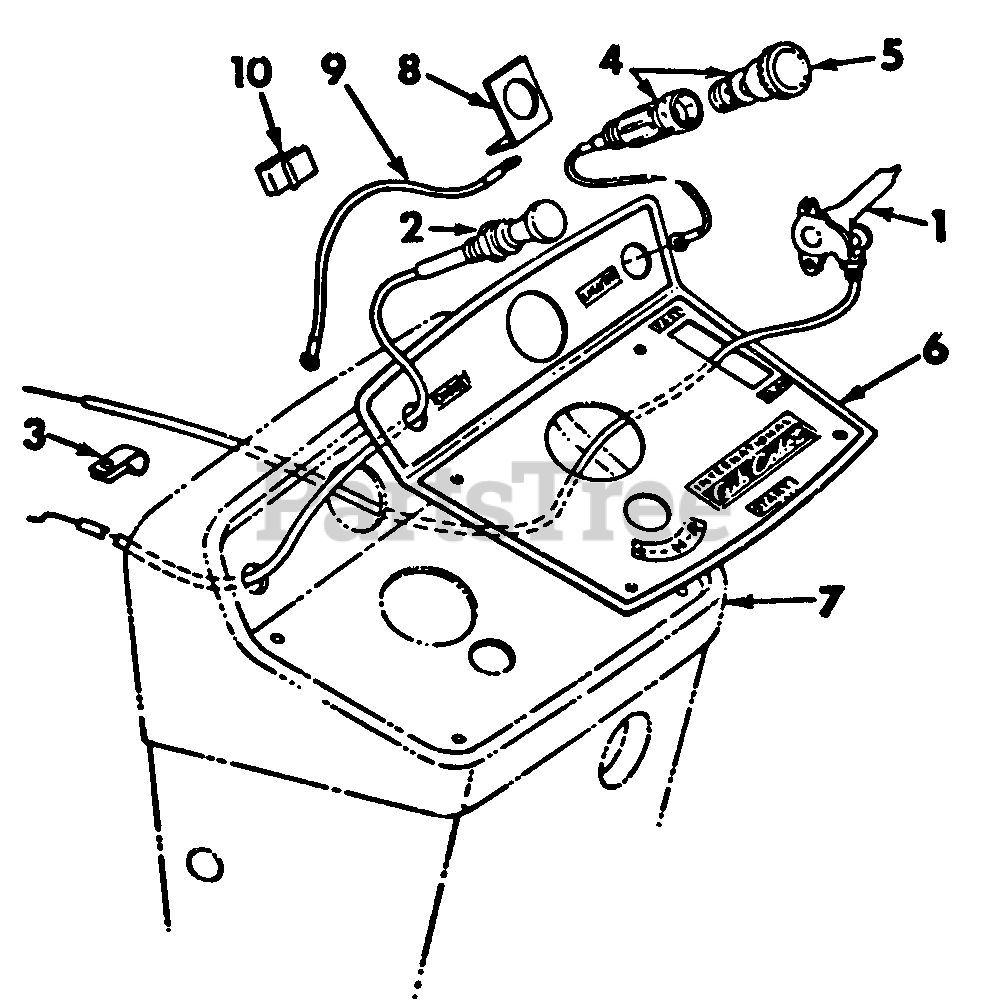

Engine Controls & Instrument Panel Parts Diagram

  • Title

1

Cub Cadet IH-543919-R1

Lever & Cable Assy, Throttle

$

$

Not available

Cub Cadet IH-443874

Screw, 10-24 X 1/2 C-Z Hex Hd Mach

$

$

Not available

Cub Cadet 736-0722

Washer, 10 C-Z Med Lock

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet IH-401439-R92

Cable Assy, Choke
(Superseded to IH-401439-R93)

$64.99

$

In Stock, Qty 7

0

Cub Cadet IH-27503-R1

Washer, Choke Bezel

$

$

Currently unavailable

3

Cub Cadet IH-376298-R1

Clip, Throttle Cable Retainer
(Superseded to KH-210149)

$

$

Not available

Screw, 8-32 X 1/2 C-Z Cr Rec Pan Hd Mach*

$

$

Not available

Cub Cadet 712-0149

Nut, 8-32 C-Z Hex Mach

$

$

Currently unavailable

Cub Cadet IH-121841

Washer, 8 C-Z Med Lock

$

$

Not available

4

~NLA

Cigarette Lighter Parts Accessory, 12 Volt

$

$

Not available

5

Cub Cadet IH-378781-R91

Unit, Pop-Out, Element

$

$

Currently unavailable

Cub Cadet IH-432281

Plug, 29/32 Ch Bright Button

Note: (Cigarette lighter hole)

$

$

Currently unavailable

6

Product Graphic, Instrument Panel

Note: (Not serviced separately, order package IH-402513-R91)

$

$

Not available

7

Panel, Instrument

Note: (Refer to hood, grille & frame listing)

$

$

Not available

8

~NLA

Bracket, Lighter Ground

$

$

Not available

9

Cub Cadet IH-402691-R1

Cable Assy, Ground

$

$

Not available

Screw, 10-24 X 3/8 Slt Pan Hd Mach*

$

$

Not available

Cub Cadet BS-231082

Nut, 10-24 Hex Mach Screw

$

$

Not available

10

~NLA

Clip, Cigarette Lighter Cable

$

$

Not available

Cub Cadet 731-0108

Knob, Throttle Control

$9.49

$

In Stock, only 2 left!
